The 4 thermistor temperature reading and logging via EID's universal serial bus (EUSB) is an educational electronics kit. It allows you to connect your personal computer (PC) universal serial port (USB) to the kit on one side, and up to 4 NTC thermistor on the other side. Together with the our free (AS-IS) demo software, you will be able to read and log to file temperatures. The thermistor temperature will display on screen in degrees C, F or K. Additionally, you will be able to set the log interval and log the information to file. Our sophisticated software logging Dynamic Data Exchange (DDE) mechanism allows you to open the logged file with another program, such as spreadsheet (MS-Excel etc.), at the same time. Therefore, you will be able to easily share the file, and view it from anywhere on the web, and print report or graph from your familiar existing software packages.



This kit uses 12 bits Analog to digital converter (ADC) integrated circuit (IC) component. The MAX1236 (Maxim Inc, www.maxim-ic.com ) is mounted in a SMT method on the bottom side. (SMT = Surface Mounted Technology).



This ADC component has a built-in reference voltage and internal clock. The device is controlled via 2 wires, Clock and Data (I2C protocol).



The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specification, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the the CY7C630s01 chip data-sheet.



No need for external Power supply! The board is powered directly from your PC.

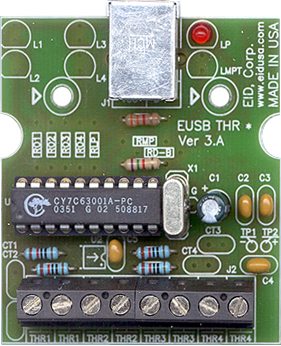

Kit picture



This kit includes on board pre-installed free EUSB firmware!





4 Thermistor via EUSB kit shown above

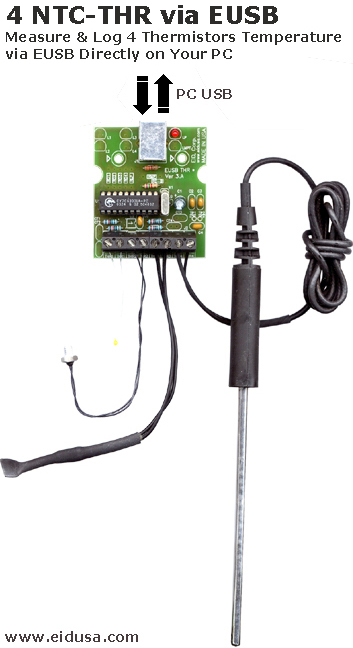

Thermistors mounting (wiring)





4 Thermistor mounting configurations shown above



This unique kit design provides you with the ability to connect up to 4 thermistors easily via front mounted Terminal Block (1). You will be able to monitor & log 4 thermistors temperatures directly from the PC.



Please note: EUSB wire (USB cable), plastic enclosure electrodes, probes and thermistor are sold separately (for demonstration only).






Kit Software





Kit screen shot (shown above) indicates temperature in degrees Fahrenheit

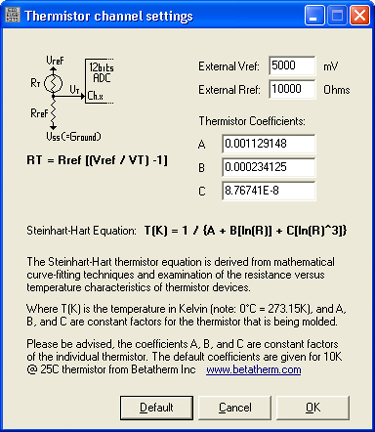

Sample screen shot, shown above per thermistor configuration screen



Yep, Basic FREE SOFTWARE.



Simple to use. Control EUSB-kits directly from your personal computer (PC).

Our philosophy is that "NO KID or SCIENTIST WILL BE LEFT BEHIND!"



Click here to download the free demo software code for Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000, NT or XP are trademarks of Microsoft corp.)



Please be advised the the demo software is provided for free, on as-is basis, without any warranties. Run or download it on your own risk!



All you need to do is to plug-in the kit via EUSB cable to your PC, run the free demo software, and viola, you can log and  read up to 4 thermistor temperatures.






Kit Includes

  • CY7C63001          IC                  1pc.

  • MAX1236             IC                  1pc.

  • 7.5K Ohms           Resistor          1pc.

  • 10K Ohms            Resistor          4pc.

  • 0.1MF                 Capacitor        7pc.

  • 4P Terminal Block  Connector       1pc.

  • 4.7MF                 Capacitor        1pc.

  • Red LED              LED                1pc.

  • USB Connector                          1pc.

  • Crystal 6MZ                              1pc.

  • PCB                                         1pc.




Thermistor Temperature Probes options



For our big selection of conductivity cells click hear



We can custom the probe to fit your needs. Choose from SS, glass or plastic temperature electrodes (probes).







SENSER - SS Temperature Sensor (TM10) With 10K Thermistor






Calculating the thermistor temperature:



The thermistor resistance (R) should be obtained at given temperature by the software utilizing voltage divider.



It will than past throw the software Steinhart-Hart thermistor equation, and will display on the screen.



Note: You can use any NTC sensor on the market just set the configuration screen with your new Voltage and reference resistor and your thermistor coefficients. The 10K, 1%, 1/4W reference resistor come with the kit.



The Steinhart-Hart thermistor equation is derived from mathematical curve-fitting techniques and examination of the resistance versus temperature characteristics of thermistor devices.



Where T is the temperature in Kelvin (note: 0°C = 273.15K), and A, B, and C are constant factors for the thermistor that is being molded.



Steinhart-Hart Equation:



T = 1 / {A + B[ln(R)] + C[ln(R)]^3}

A = 0.001129148

B = 0.000234125

C = 8.76741E-08


Please be advised, the coefficients A, B, and C are constant factors of the individual thermistor. The above coefficients are given for 10K @ 25C thermistor from Betatherm , Inc. MA, USA.



Finally, you will be able to view the temperatures results in degrees Kelvin, Centigrade or Fahrenheit



The basic temperature formulas are given below:



C = K – 273.15



F = C * 1.8 + 32







Description and SKU#

Price


4 thermistors via EUSB Kit

EID-K-EUSB-L4-THR10K-ASM  Fully assembled

EID-K-EUSB-L4-THR10K-PCB  PCB Only

EID-K-EUSB-L4-THR10K-KIT   Kit

EID-K-EUS-BS-LIB1S  Software (Library only)



119.33

18.63

93.75

12.00





SENSER-TM10 General purpose SS sensor with 10K thermistor, with 3' cable

EID-T-0TM-A010





39.70



EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99



USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





49.95

33.33





  •
