EID
- RS232 Communication
Cables
are durable and suitable for a wide range of applications.
EID

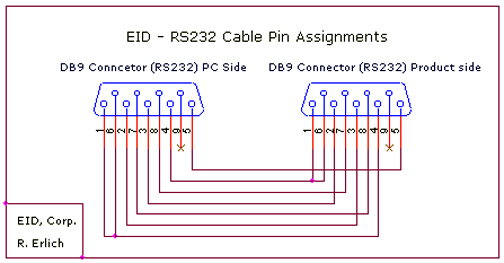

– RS232 DB-9 Pin Assignments:
-
FG (Frame Ground)
-
Pin 1 DCD
(Data Carrier Detect)
-
Pin 2 RD (Receive
Data)
-
Pin 3 TD (Transmit
Data)
-
Pin 4 DTR (Data
Terminal Ready)
-
Pin 5 SG (Signal
Ground)
-
Pin 6 DSR (Data Set
Ready)
-
Pin 7 RTS (Request To
Send)
-
Pin 8 CTS (Clear To
Send)
-
Pin
9 RIN (Ring Indicator) not connected
Note:
You “must” have the
right serial cable to make the connection to our product. All of
the pins on the cable must be properly connected, not just 2 and
3 swapped for a simple null modem. Again it is important that
you use only EID approved serial cable with all EID Products.
|
