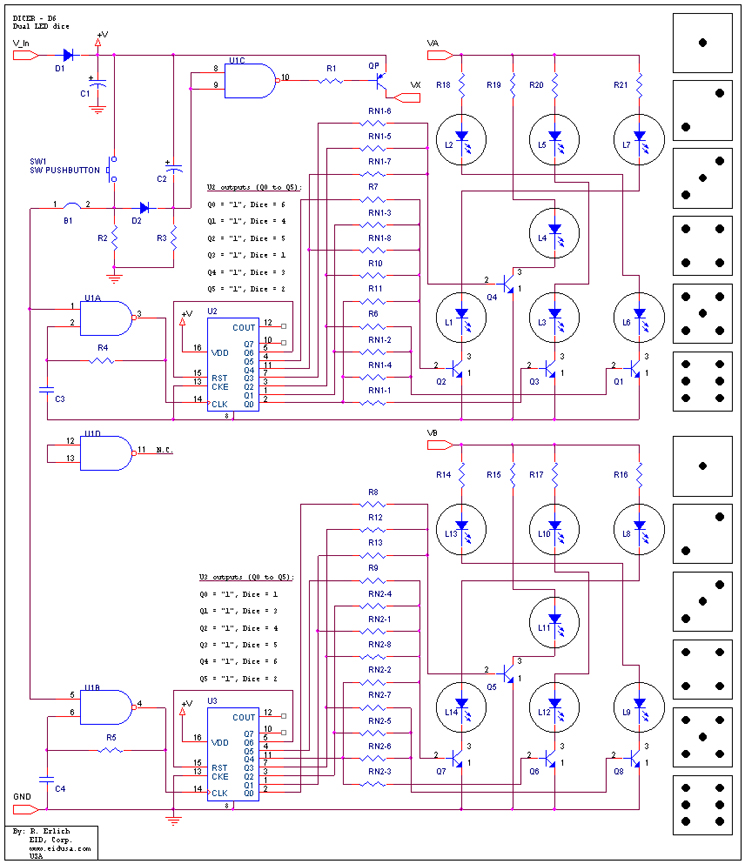

Schematic

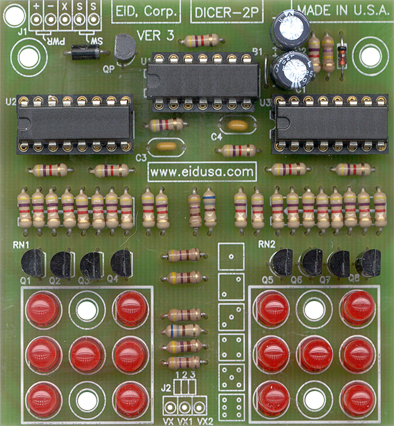

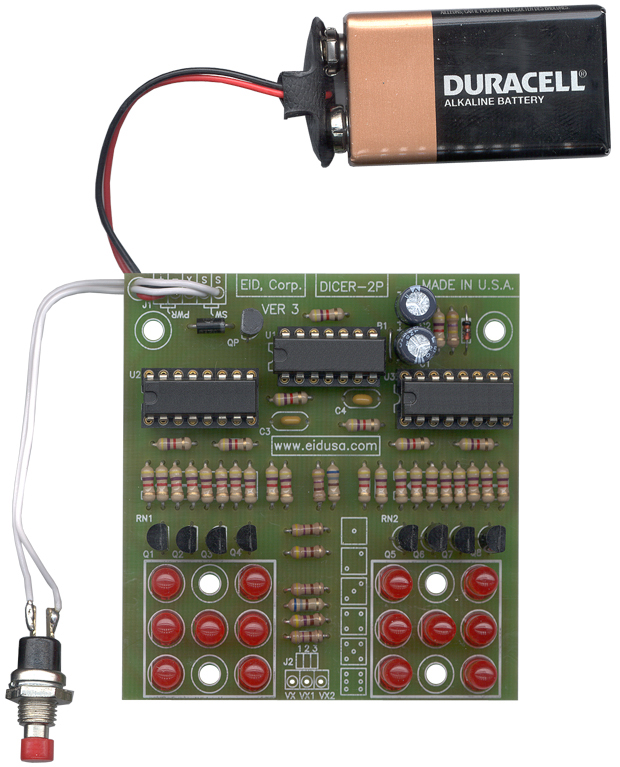

DICER-D6
is our automatic DUAL LED-DICE kit. It's based on
“dual counters.” Using the 4093 (Schmitt-trigger NAND gates)
as a random dual clock generator, it increases the each counter
randomly--therefore light arbitrarily sequences of LEDs. Since we wire pin 5 to the
counter RST (reset) pin (pin 15), when the counter reaches the
fifth position it automatically goes back to the first position on the
next pulse.
R14
to R21 resistors determines the LEDs brightness and limits the
current flow to about 10 to 15mA when running between 9V to 12
VDC corresponding.
R5
to R13 resistors and RN1 and RN2 resistor network (bus) determines the minimum transistor forward
base-current sufficient to turn the transistor on. At
given time only one random output of the each counter (U2_Q0 to
U2_Q5 & U3_Q0 to U3_Q5) is "On" ("1"): U2_Q0
= "1" -->
Transistors Q1, Q2, Q3 = "On" --> Dice = 6 (L1, L2, L3,
L5, L6, L7 Light)
U2_Q1
= "1" -->
Transistors Q1, Q2 = "On" --> Dice = 4 (L1, L2, L6, L7 Light)
U2_Q2
= "1" -->
Transistors Q1, Q2, Q4 = "On" --> Dice = 5 (L1, L2,
L4, L6, L7 Light)
U2_Q3
= "1" --> Transistor Q1 = "On" --> Dice =
1 (L4 Light)
U2_Q4
= "1" -->
Transistors Q2, Q4 = "On" --> Dice = 3 (L1, L4, L7 Light)
U2_Q5
= "1" -->
Transistors Q2 = "On" --> Dice = 2 (L1, L7 Light)
U3_Q0
= "1" --> Transistor Q5, Q2, Q3 = "On" --> Dice =
1 (L11 Light)
U3_Q1
= "1" -->
Transistors Q7, Q5 = "On" --> Dice = 3 (L8, L11,
L14 Light)
U3_Q2
= "1" -->
Transistors Q7, Q8 = "On" --> Dice = 4 (L8, L9,
L13, L14 Light)
U3_Q3
= "1" --> Transistors Q5, Q7, Q7 = "On" --> Dice =
5 (L8, L9, L11, L13, L14 Light)
U3_Q4
= "1" -->
Transistors Q6, Q7, Q8 = "On" --> Dice = 6 (L8, L9,
L10, L12, L13, L14 Light)
U3_Q5
= "1" --> Transistor Q7 = "On" --> Dice =
2 (L8, L14 Light)
|
