ALERTER - E4 and E4T. The fun and easy E-MAIL ALERT LED
kit, e-mail account LEDs indicator kit.
Yes
the kit indicates new e-mail arrival, even when
your monitor is turn off, or in sleep mode!
Our
ALERTER - E4 has many applications; indicating new e-mail via
front mounted four bright light ( 4 red LEDs). Mount the ALERTER on your
screen or computer desk, so you'll be able to see when new mail
arrived (basic free version up to 4 different accounts). Place ALERTER anywhere
you’d like to draw attention and a smile. The unique small
design will allow you to mount it almost anywhere. This alternative uses are endless. It’s designed for the beginner as well as
the expert. Please drop us a line at Sales@eidusa.com
and let us know the creative ways you use your ALERTER!
So
many feature to list, the software
provided to download for free
(on AS IS based). The software aloud you to configure the kit for
monitoring e-mail for you and your siblings, Yep--wile
you on the computer they can take a pick on the ALERTER
and to see if they have new email without interfere your
web surfing or work.
***
New OEM product from EID ***
See
and hear when new mail is arrived
in 4 different accounts
Do
It Yourself (DIY) and enjoy your kit.

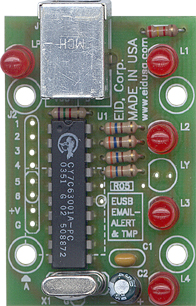

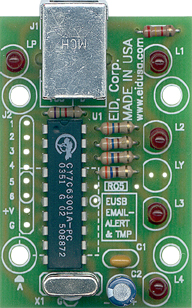

Model
A. 4 e-mail alert LEDs and EUSB power indication LED

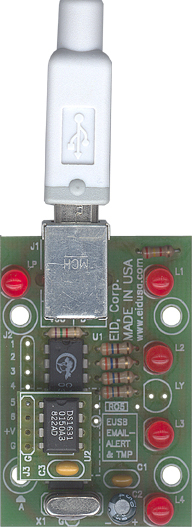

(Shown
with Large LED right, and small LED on the left)

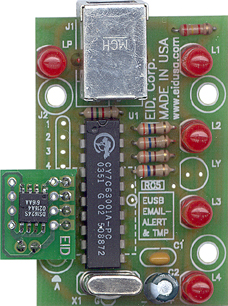

Model
B. 4 e-mail alert LEDs and EUSB power indication LED + temperature
sensor option
PDIP
Configuration
SMT Configuration
Many
temperature I2C sensor option are available both PDIP
and SMT as shown above.
Temperature
sensor: DIP- DS1621/31, SMT DS1621/31/24
EID's universal serial bus (EUSB)
to 4 E-Mail Alert kit is an educational electronics kit
that connect to your personal computer (PC) universal
serial port USB. The kit is based on Cypress
integrated circuit (IC), the CY7C63001.
Note:
The CY7C63001 IC is
Universal Serial Bus (USB) RISC type Micro-controller.
It conforms to USB 1.5 Mbps specification, version 1.1.
See
USB specifications at www.usb.org
for more details, or click here
to download the the CY7C63001
chip
data-sheet.
***
No
need for external Power supply! The board is powered directly
from your PC. ***
This
kit includes on board
pre-installed free
EUSB firmware!

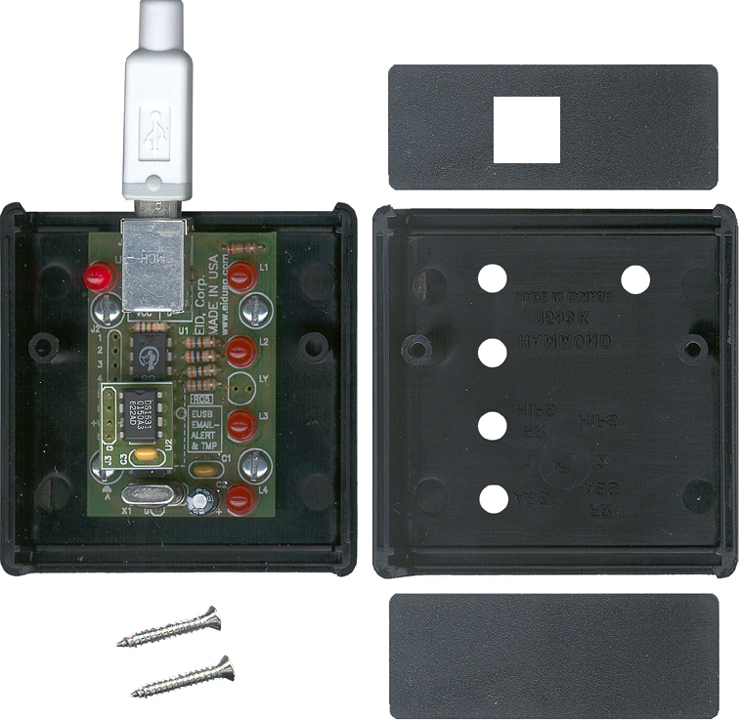

Kit
mounting
This
kit will mount with up to four (4) 4-40 * 1/4" screws in plastic enclosure (EID-1593 series).
Please
note: EUSB wire (USB cable), plastic enclosure
and temperature option are sold
separately
(for demonstration only).
Kit
Software
4

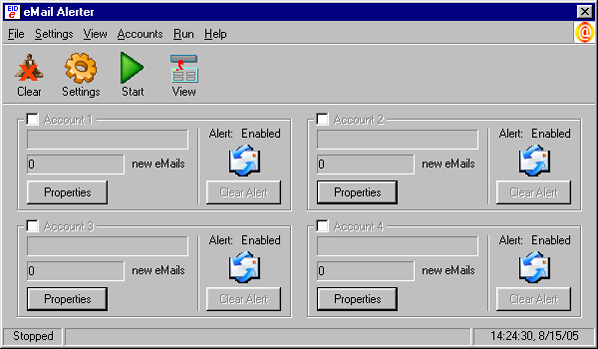

E-mails monitoring/Alerting control screen shot (shown above)

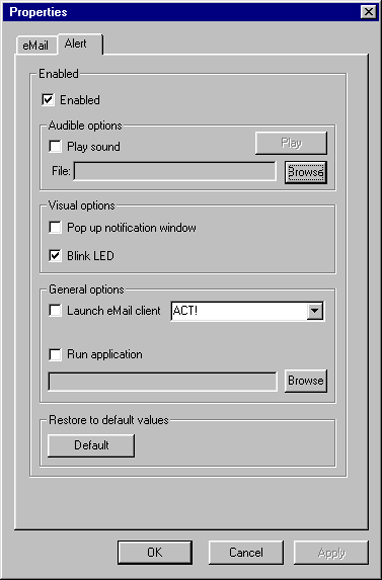

Individual
alert option configuration screen shot (shown above)

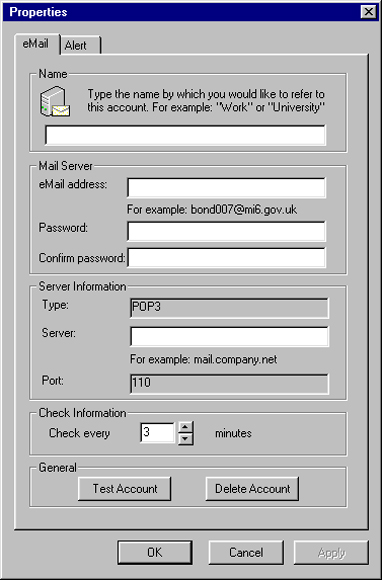

Individual
eMail configuration screen shot (shown above)

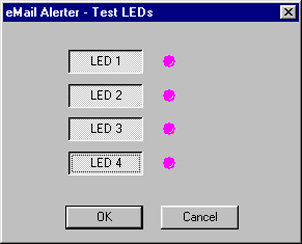

Individual
e-mail LED test screen shot (shown above)

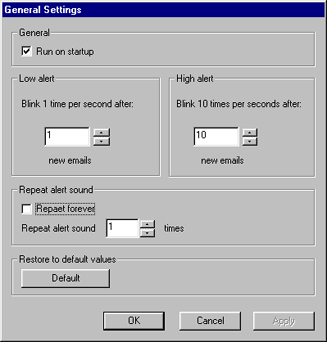

General
Settings screen shot (shown above)
Yep,
Basic FREE SOFTWARE.
Simple to use. Control EUSB-kits (ALERTER - E4 and E4T) directly from your personal computer (PC).
Our philosophy is that
"NO
KID or SCIENTIST WILL BE LEFT BEHIND!"
Free
demo software (see above screen shot) allows you to fully
control the 4 on board LEDs. Turn them on and off as
function of your POP e-mail
Click
here
to download the free demo software code for
Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000,
NT or XP are trademarks of Microsoft Corp.)
Please
be advised, the demo software is provided for free,
on as-is basis, without any warranties. Run or download it on
your own risk!
All
you need to do is to plug-in the kit via EUSB cable to your
PC, run the free demo software, and viola, you can view
when new email arrive via the kit's LEDs.

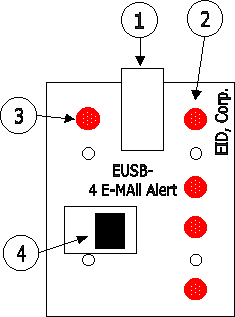

Kit
Drawing
1.
EUSB connector (connect your cable between the connector and
your PC)
2.
4 E-mail status LEDs (One for you, one for Joe, One for
your other account, one for Brenda...)
3.
LED
Power indicator
4.
Room temperature status option
Kit
Includes model A.
Kit
Includes model B.
-
CY7C63001
IC
1pc.
-
DS1631
IC
1pc.
-
4
pins
connector 1pc.
-
7.5K
Ohms Resistor
1pc.
-
360
Ohms
Resistor
4pc.
-
2.4K
Ohms Resistor
1pc.
-
0.1MF
Capacitor
3pc.
-
4.7MF
Capacitor
1pc.
-
Red
LED
LED
5pc.
-
USB
Connector
1pc.
-
Crystal
6MZ
1pc.
-
PCB
2pc.
Kit
Schematic
Software
and schematic note
1.
FREE pre-installed EUSB firmware.
2.
LEDs controlled via the following ports and bit-number:
P0.5
- L1 (On board red LED)
P0.4
- L2 (On board red LED)
P0.6
- L3 (On board red LED) P0.7
- L4 (On board red LED)
