EUSB to 3 Timers



EID's universal serial bus (EUSB) to 3 timers kit (3 I/O and LEDs timers depended) is an educational electronics kit. It allows you to control 3 timers on your personal computer (PC) via universal serial port to 3 Input/output pins. The kit is based on Cypress integrated circuit (IC), the CY7C63001.



Note: The CY7C63001 IC is Universal Serial Bus (USB) RISC type Micro-controller. It conforms to USB 1.5 Mbps specifications, version 1.1. See USB specifications at www.usb.org for more details, or click here to download the CY7C63001 chip data-sheet.



No need for external Power supply! The board is powered directly from your PC.





Kit Software





3 timers screen shot (shown above)



Yep, Basic FREE SOFTWARE.



Simple to use. Control EUSB-kits directly from your personal computer (PC).

Our philosophy is that "NO KID or SCIENTIST WILL BE LEFT BEHIND!"



Free demo software (see above screen shot) allows you to fully time-control-switch the time of 3 on board LEDs or I/Os pins. Turn them on and off as a corresponding time factor. The software also provides you with the means to test your I/Os (via 3 I/O kits). When the timer ended,  the corresponding "on screen LED," on board LED and I/O pin will switch position.



Click here to download the free demo software code for Win98/98SE/ME/WinNT/2000/XP operating system. (Win98/SE/ME,2000, NT or XP are trademarks of Microsoft Corp.)



Please be advised, the demo software is provided for free, on as-is basis, without any warranties. Run or download it on your own risk!



All you need to do is plug-in the kit via EUSB cable to your PC, run the free demo software, and viola, you can control the LEDs and 3 I/O pins switch positions via on screen timers.

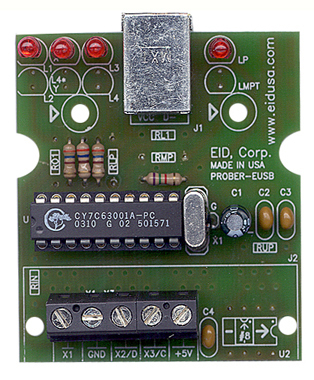

Kit Drawing













1. EUSB connector (connect your cable between the connector and your PC)

2. LED Power indicator

3. 3 I/O status LEDs (From the left I/O-1, I/O-2, I/O-3) or general use LEDs

4. Terminal block connector (Pin 1 I/O-1, Pin 2 GND, Pin 3 I/O-2, Pin 4 I/O-3,  Pin 5 +5VDC)





Kit Includes

  • CY7C63001          IC                  1pc.

  • 7.5K Ohms           Resistor          1pc.

  • 360 Ohms            Resistor          3pc.

  • 2.4K Ohms           Resistor          1pc.

  • 0.1MF                 Capacitor        3pc.

  • 2P Terminal Block  Connector       1pc.

  • 3P Terminal Block  Connector       1pc.

  • 4.7MF                 Capacitor        1pc.

  • Red LED              LED                4pc.

  • USB Connector                          1pc.

  • Crystal 6MZ                              1pc.

  • PCB                                         1pc.



Kit Schematic









Software and schematic note



1. FREE pre-installd EUSB firmware.



2. LEDs controlled via the following Ports and bit-number:

P0.5 - L1 (On board red LED)

P0.7 - L3 (On board red LED)

P0.6 - L4 (On board red LED)

3. I/Os connector's pin controlled via the following Ports and bit-number:

P0.0 - I/0 #1 (J2 pin 2)

P0.1 - I/0 #2 (J2 pin 3)

P1.2 - I/0 #6 (J2 pin 7)



Note: P0.0 have and external pull-up & input resistors. Ideally for foot and or remote switches. All I/O pins have on chip pre configured pull-up resistors.



EUSB Basics





Description and SKU#

Price


EUSB to 3 Timers Kit

EID-K-EUSB-3TIM-ASM   Fully assembled

EID-K-EUSB-3TIM-PCB    PCB Only

EID-K-EUSB-3TIM-KIT     Kit

EID-K-EUS-BS-LIB1S    Software (Library only)



45.00

18.63

29.75

12.00



EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99



USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





49.95

33.33





  •
