The Liquid Crystal Display (LCD) via EID's universal serial bus (EUSB) kit is an educational electronics kit. It allows you to control LCD directly from your personal computer (PC) via universal serial bus.

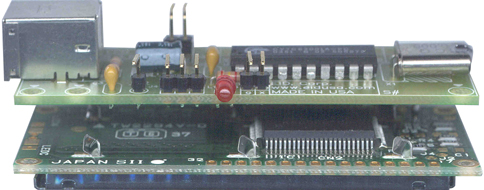

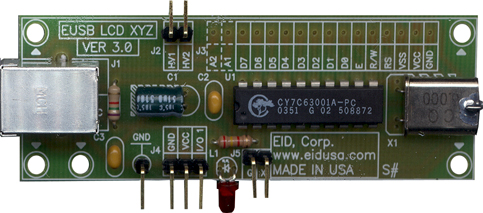

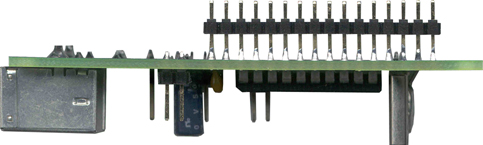

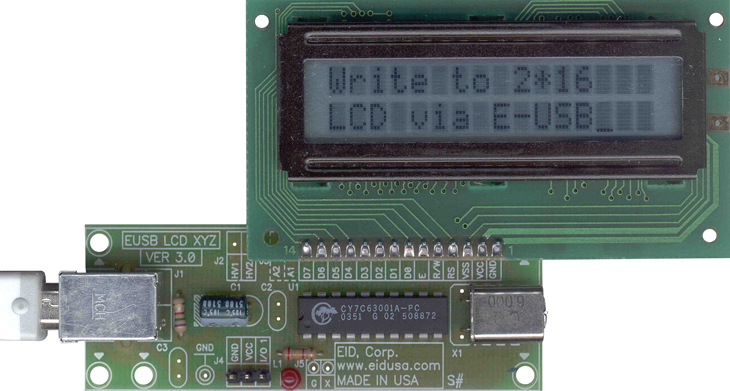

Shown above assembly flat (90 Deg. pins, Xtal and Cap). LCD sold separately.

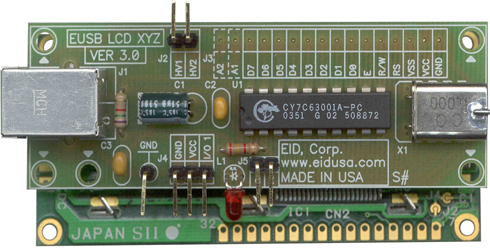

Shown above standard configuration

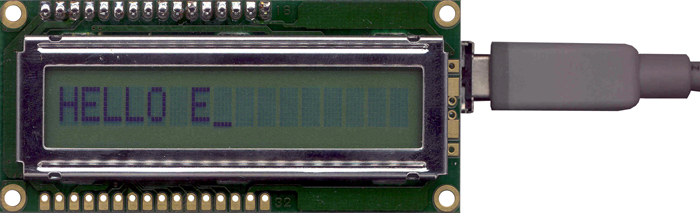

Few lines of code--HELLO E_...



* No need for external Power supply! The board and the LCD are powered directly from your PC.

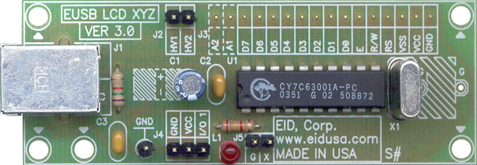

Shown above connected to 2-lines * 16-characters LCD

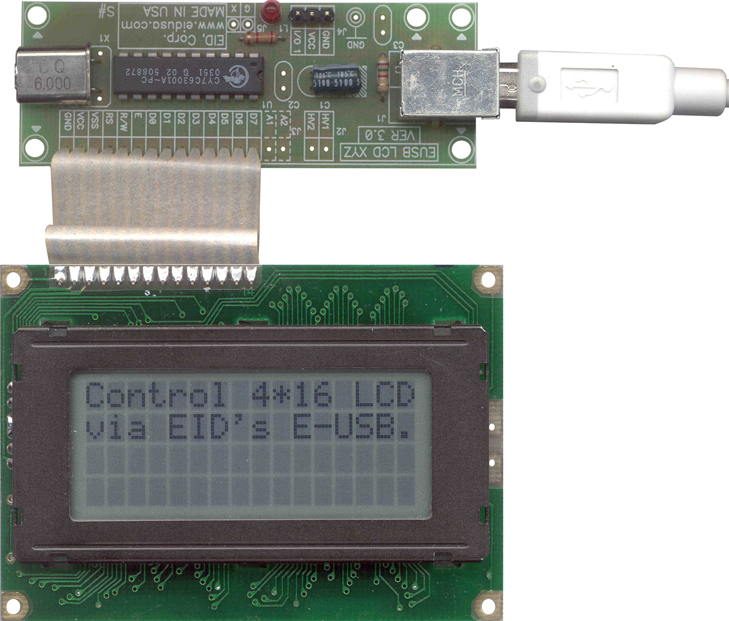

Shown above connected to 4-lines * 16-characters LCD via flex-cable



* Please be advised that LCD and flex-cable are sold separately.




Kit Includes

  • CY7C63001          IC                  1pc.

  • 7.5K Ohms           Resistor          1pc.

  • 2.4K Ohms           Resistor          1pc.

  • 0.1MF                 Capacitor        2pc. (option)

  • 14 Pins Molex       Connector       1pc.

  • 1 Pins Molex         Connector       1pc.

  • 2 Pins Molex         Connector       1pc. (option)

  • 3 Pins Molex         Connector       1pc.

  • 4.7MF                 Capacitor        1pc.

  • Red LED               LED               1pc.

  • USB Connector                          1pc.

  • Crystal 6MZ                              1pc.

  • LCD                                         See options.

  • PCB                                         1pc.


Character Type Liquid Crystal Display (LCD) Modules Features

1.        5x8 dot matrix

2.        Built-in controller (KS0066 or equivalent)

3.        +5V or +3.3V power supply

4.        1/16 duty cycle

5.        8-bit parallel interface






Kit Interface pin Connections information



LCD 16 pins (14 I/O + 2 for Back-light)



No.

Symbol

Function

CY7C63001A No.

Symbol

1

VSS

Ground

7 & 8

VSS & VPP

2

VDD

Power supply

12

VCC

3

VO

Contrast adjust

12

VCC

4

RS

Register select

4

P0.1

5

R/W

Read / Write

3

P0.2

6

E

Enable signal

4

P0.3

7

DB0

Data bus

5

P1.0

8

DB1

Data bus

6

P1.2

9

DB2

Data bus

15

P1.3

10

DB3

Data bus

16

P1.1

11

DB4

Data bus

17

P0.7

12

DB5

Data bus

18

P0.6

13

DB6

Data bus

19

P0.5

14

DB7

Data bus

20

P0.4



Back-light



No.

Symbol

Function

J2 Pins

Symbol

15

K

Backlight (-)

1

   HV1

16

A

Backlight (+)

2

   HV2



J4 & J5  I/O or Power indication or LED control:



*** For power indication G short to X



No.

Symbol

Function

CY7C63001A No

Symbol

G

VSS

Ground

7 & 8

GND

X

I/O 1'

I/O

1

P0.0 via 2.4K resistor to I/O1




LCD  Character Address Code



Display position

1

2

3

4

5

6

7

8

9

10

 11

12

13

14

15

16

Display DDRAM address

00

01

02

03

04

05

06

07

40

41

42

43

44

45

46

47






Code Instruction Set for Character Type LCD Modules



Instruction

Code

Description

RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

Clear
display

0

0

0

0

0

0

0

0

0

1

Clear display and return the cursor to home position
(Address 0).
Sets I/D=1 of Entry Mode

Return
home

0

0

0

0

0

0

0

0

1

*

Return the cursor to the home position (Address 0). Also return the display being shifted to the original position.
DD RAM contents remain unchanged.
Set DD RAM addresses to zero.

Entry
mode
set

0

0

0

0

0

0

0

0

I/D

S

Set the cursor move direction and specifies or not to shift the display. These operations are performed during data write and read of DD RAM/CG RAM.
For normal operation, set S to 0.

Display
On/Off
control

0

0

0

0

0

0

1

D

C

B

Set On/Off all display (D), cursor On/Off (C), and blink of cursor position character (B)

Cursor of
display
shift

0

0

0

0

0

1

S/C

R/L

*

*

Move the cursor and shift the display without changing DD RAM contents

Function
set

0

0

0

0

1

DL

N

F

*

*

Set interface data length (DL), number of display lines (N) and character font (F)

Set the
CG RAM
address

0

0

0

1

MSB          ACG

LSB

Set the CG RAM address. CG RAM data is sent and recievd after this setting

Set the
DD RAM
address

0

0

1

MSB                 ADD

LSB

Set the DD RAM address. DD RAM data is sent and recievd after this setting

Read
busy flag
&
address

0

1



MSB                 AC

LSB

Read Busy flag (BF) indicating internal operation is being performed and read address counter contents

Write
data to
CG or
DD RAM

1

0

MSB                                                LSB

Write data into DD RAM or CG RAM

Read
data
from
CG or DD
RAM

1

1

MSB                                                LSB

Read data from DD RAM or CG RAM



S=1 : accompanies display shift when data is written for normal operation set to 0

DD RAM : Display Data RAM

I/D = 1 : Increment

DL = 1 : 8 bits

CG RAM : Character Generator RAM

I/D = 0: Decrement

DL = 0: 4 bits

ACG : CG RAM Address

S/C = 1 : Display shift

N = 1 : 2 (1) line

ADD : DD RAM Address corresponds to cursor address

S/C = 0: Cursor move

N = 0 : 1 line

AC : Address Counter used for both DD and CG RAM addresses

R/L = 1 : Shift to the right

F = 1 : 5x10 dots

B : 1 = On, 0= Off (Blinking cursor)

R/L = 0: Shift to the left

F = 0: 5x7 dots

C : 1 = On, 0= Off (Cursor)

BF = 1 : Internally operating

D : 1 = On, 0= Off (Display)

BF = 0: Can accept instruction

*= Don't care



* The module automatically performed initialization when powered on (using internal reset circuit). The following instructions are executed during initialization:



1 Clear Display

The Busy Flag in the buisy state (BF = 1) unit initialization ends. The time is 15 ms.

2 Function Set

DL = 1 : 8 bits long interface data
N = 0: 1 Line display

3 Display On/Off Control

D = 0: Display OFF
C = 0: Cursor OFF
B = 0: Blink OFF

4 Entry mode Set

I/D = 1 : +1(INCREMENT)
S = 0: NO SHIFT

5 DD RAM is Selected

Power On Initialization depends on rise time of the supply when it is turned on. The following time relationship must be satisfied.




Item

Symbol

Standard

Unit

Min

Typ

Max

Power Supply Rise Time

t rec

0.1

-

10

ms

Power Supply Off Time

t off

1.0

-

-

ms

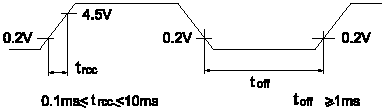

Power On Timing Diagram

Power On Timing Diagram



Note: When the above power supply condition is not satisfied, the internal reset circuitry does not operate correctly. In this case perform the needed initialization by sending function set instructions thrice from MPU after turning the power on. For example, to designate an 8-bit data length, set the following instructions thrice.



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

*

*

*

*

0

0

0

0

1

1

*

*

*

*

0

0

0

0

1

1

*

*

*

*




Character Type LCD Modules Initialization For 8 bit data interfacing



Power On



Wait for 15ms or more after Vcc rises to 4.5v Please be advised that BF cannot be checked at this time



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

X

X

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization

Wait for 4.1ms or more Please be advised that BF cannot be checked at this time



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

X

X

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



Wait for 100us or more



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

X

X

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



BF cannot be checked at this time, check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

1

1

N

F

X

X

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization0



check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

0

0

1

0

0

0

Display off



check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

0

0

0

0

0

1

Clears all display and returns cursor to home position



check for not busy



RS

R/W

DB7

DB6

DB5

DB4

DB3

DB2

DB1

DB0

0

0

0

0

0

0

0

1

I/D

S

Set the shift mode



End of Initialization




Character Type LCD Modules Initialization For 4 bit data interfacing

Power On

Wait for 15ms or more after Vcc rises to 4.5v. Please be advised that BF cannot be checked at this time



RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



Wait for 4.1ms or more. Please be advised that BF cannot be

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



Wait for 100us or more Please be advised that BF cannot be

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

0

Function set :
DL = 0, 4 bit interface data



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

1

Function set :
DL = 1, 8 bit interface data
DL must be set at H during this initialization



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

1

0

0

0

N

F

X

X

Function set :
DL = 0, 4 bit interface data
N = No. of lines
F = character font



check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

0

0

0

0

1

0

0

0

Display off

check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

0

0

0

0

0

0

0

1

Display on

Check for not busy

RS

R/W

DB7

DB6

DB5

DB4

0

0

0

0

0

0

0

0

0

1

I/D

S

Entry mode set

End of Initialization

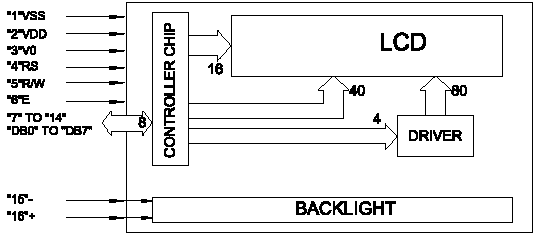

Typical Character Type LCD Modules Block Diagrams

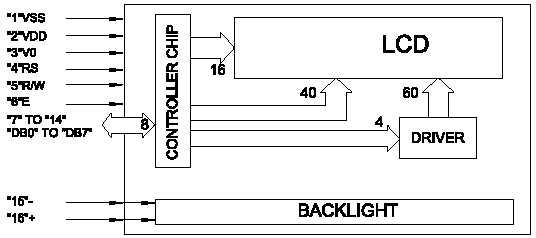

16x1 DMM, 1/16 MUX



16x1 DMM, 1/16 MUX block diagram

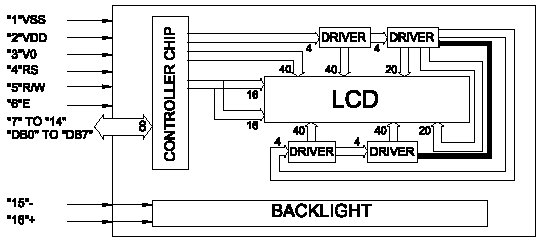

16x2 DMM, 1/16 MUX



16x2 DMM, 1/16 MUX block diagram


16x4 DMM, 1/16 MUX



16x4 DMM, 1/16 MUX block diagram


20x2 DMM, 1/16 MUX



20x2 DMM, 1/16 MUX block diagram

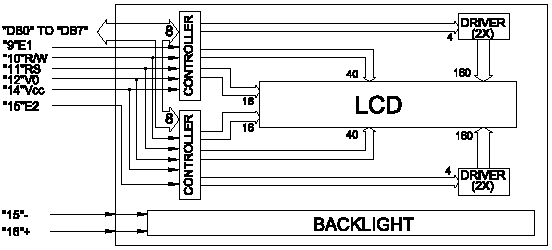

20x4 DMM, 1/16 MUX



20x4 DMM, 1/16 MUX block diagram


24x2 DMM, 1/16 MUX



24x2 DMM, 1/16 MUX block diagram


40x4 DMM, 1/16 MUX



40x4 DMM, 1/16 MUX block diagram




EUSB Basics








Description and SKU#

Price


EUSB to CHARACTER LCD

EID-K-EUSB-LCD-XX-YY-ASM   Fully assembled

EID-K-EUSB-LCD-XX-YY-ASM   Kit



49.00

39.75



EUSB to LCD PCB

EID-K-EUSB-LCD-XX-YY-PCB   PCB Only



23.97



I/O DLL, SDK Library only

EID-K-EUS-BS-LIB1S    Software (Library only)



12.00



EUSB A to B Cables

This cable is used to connect the EUSB port to the EUSB peripheral. A male to B male.



EID-C-USB-32-930  3’

EID-C-USB-32-931  6’

EID-C-USB-32-932  10’

EID-C-USB-32-933  15’









9.99

10.99

11.99

15.99



USB Complete (Second Edition) by J. Alexson

EID-K-BOOK-USB-001  Regular price

EID-K-BOOK-USB-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





49.95

33.33





  •
