RS232 Kit is an Electronics board that allows you to connect both the Transmit (Tx) and the Receive (Rx) lines of a Personal Computer (PC) Communication Port (COMM. PORT) to microcontroller with TTL device (5Volt) Input and Output (I/O). i.e. connect your PC to 80C51 microcontroller for the purpose of streaming information using the RS232 Protocol.



This unique kit design provides you with three mounting capabilities:

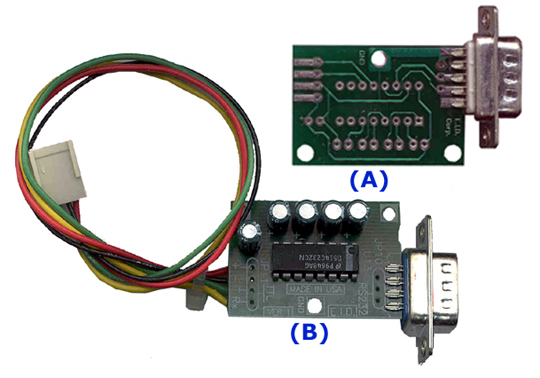

  • Solder the DB9 connector directly to the PCB see drawing (A) left side

  • Solder wire direct to the PCB and mount the PCB using one of the three 1/8" mounting holes. drawing (B) solder side on the right. the PCB slide between the upper and lower pins of the connector.

  • Solder wire connector directly to the PCB and mount board using one of the three 1/8" mounting holes

Kit Includes:

  • DS14C232CN    1pc.

  • 1MF Capacitor  5pc.

  • DB9 Male type  1pc.

  • PCB                1pc.

Note: The wires and the white connector are for demonstration only and are not included in this kit.

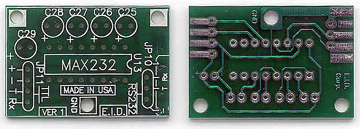

PCB Top and bottom





Description and SKU#

Price


RS232 Kit, Tx and Rx +/- 15V to 5V (TTL)

EID-K-RS2-32-ASM Fully assembled

EID-K-RS2-32-KIT   Kit



25.47

19.20



EID-K-RS2-32-PCB  PCB Only

12.78

Serial Port Complete (Second Edition) by J. Alexson

EID-K-BOOK-SERIAL-001  Regular price

EID-K-BOOK-SERIAL-0KC  w/ kit purchase



NEW! We carry technical books...

LEARN & SAVE!



This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!





39.95

27.33



  •
