RS232 to I2C Temperature Sensor Kit is an Electronics board that allows you to connect Dallas DS1621 or NSC LM75 Temperature sensor to your Personal Computer (PC) Communication Port (COMM. PORT).
No need for external Power supply!
This unique kit design provides you with ability to mount two temperature sensors. You will be able to monitor in two places at the same time i.e. you can place one sensor in the house and one outside to monitor the temperature.
Please note: We sell pre-assembled sensors with 3 ft. wire.
Student with student ID Free Software:
Version 3.00TS (Win95/98/2000/XP) via email.

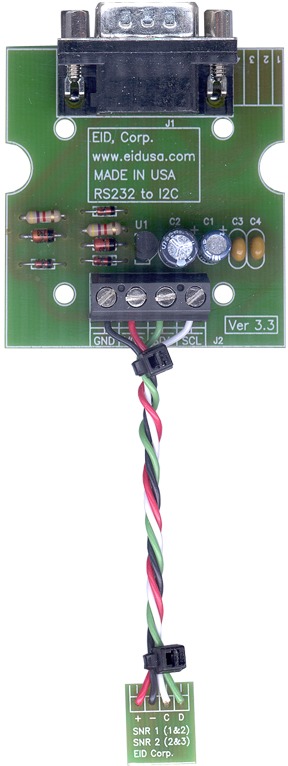

This unique kit design provides you with the ability to wire your temperature-IC-sensor-board wires easily via front mounted terminal blocks (4). You will be able to monitor the 2 temperature-IC-sensors directly from the PC.
Please note: wire are sold separately (for demonstration only).
Kit Includes:

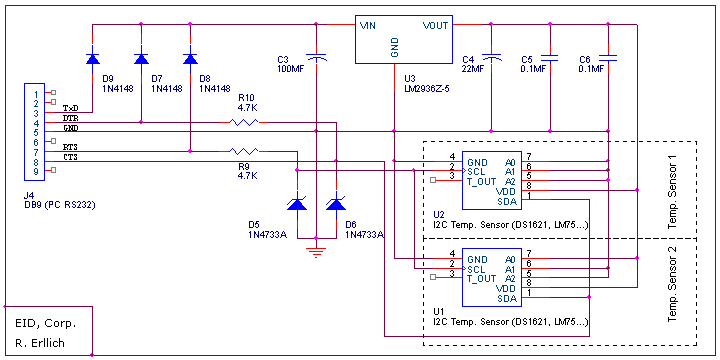

Schematic:
|
||
|
Description and SKU# |
Price |
Picture |
|
RS232 to I2C 2 Temp Sensors Kit EID-K-RS2-32-I2CTD-ASM Fully assembled EID-K-RS2-32-I2CTD-KIT Kit EID-K-RS2-32-I2CTD-SFT Pro-Software |
45.33 29.10 59.40 |
|
|
RS232 to I2C 2 Temp Sensors Kit EID-K-RS2-32-I2CTD-PCB PCB Only
|
15.33 |
|
|
2 Fully Assembled Temp Sensors, with 3' wire EID-K-TEMP-DS1621-DS-ASM Temp. Sensor EID-K-TEMP-NSLM75-DS-ASM Temp. Sensor |
39.00 29.00 |

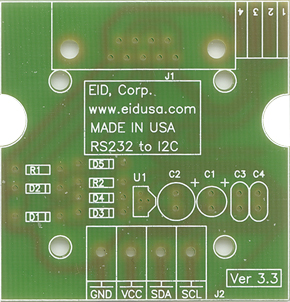

Only the PCB shown above
|
|
Serial Port Complete (Second Edition) by J. Alexson EID-K-BOOK-SERIAL-001 Regular price EID-K-BOOK-SERIAL-0KC w/ kit purchase
NEW! We carry technical books... LEARN & SAVE!
This is a "must have" book for any student or engineer. Therefore, an additional 10% off for student with student ID!
|
39.95 27.33 |
|
|
|
||
After soldering the SMT chip cut the board into two sensor
