AD590 current transducer to degree C (mV)
This kit allows you to measure degrees C utilizing temperature to current transducer IC AD590
Model B shown above with sensor connection via terminal block
Kit Model A Includes
953 Ohms 1/% Resistor 1pc.
2.74 Ohms 1/% Resistor 1pc.
7.5 Ohms 1/% Resistor 1pc.
8.66 Ohms 1/% Resistor 1pc.
100 Ohms Trimmer 1pc.
2K Ohms Trimmer 1pc.
LM358-1.2 Diode 4pc.
2P Terminal Block Connector 3pc.
PCB 1pc.

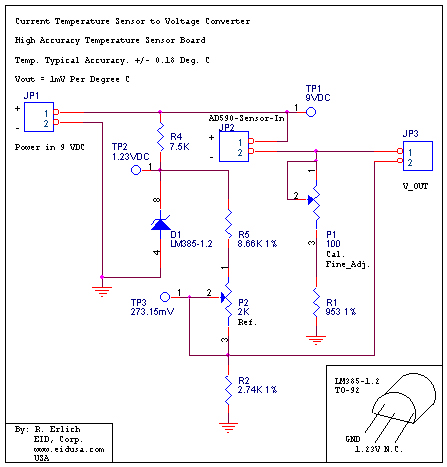

Schematic
Description and SKU#
Price
Deg. C using AD590
EID-K-TEMP-CX1-590-ASM Fully-
assembled
EID-K-TEMP-CX1-590-KIT Kit
29.00
15.95
EID-K-TEMP-XX1-590-M1-PCB PCB Only this PCB option allow you to connect the board to the 3.5 display kit to show temperature.
9.99
EID-K-TEMP-XX1-590-M2-PCB PCB Only
7.99
•
