AD590
current transducer to degree F (mV)
This
kit allows you to measure degrees F
utilizing temperature to current transducer IC AD590
Model
A shown above with terminal block

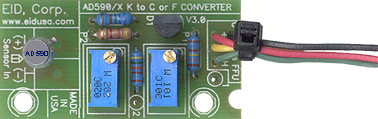

Model
B shown above with sensor mounted directly to the board on the
left, and power + output voltage via wires on the right.
Kit
includes

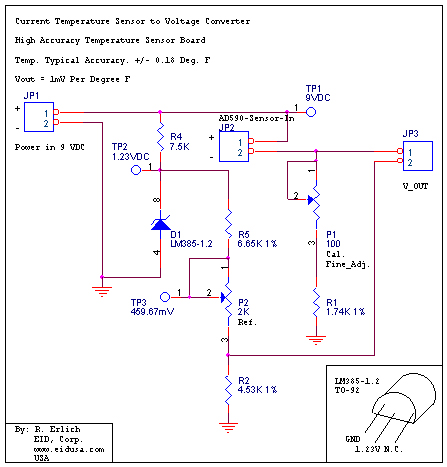

Schematic
|
