This unique kit allows you to convert +5V DC to -5VDC.



Input Voltage = +5VDC



Output voltage = -5VDC



Model A to use with our 3.5 digit display board if -5V is necessary.



Model B



Kit Includes:

  • ICL7660              IC                1pc.

  • 10MF                  Capacitor      2pc.

  • 2P Terminal Block  Connector     2pc.

  • PCB                                       1pc.

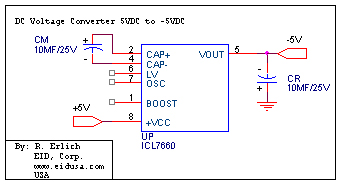

Schematic:





Description and SKU#

Price


5V to -5V voltage converter Kit Model A

EID-K-VC-NVRT-5PN-L1-ASM Fully assembled

EID-K-VC-NVRT-5PN-L1-KIT  Kit



18.00

15.99

5V to -5V voltage converter Kit Model B

EID-K-VC-NVRT-5PN-L2-ASM Fully assembled

EID-K-VC-NVRT-5PN-L2-KIT  Kit



15.33

12.95

EID-K-VC-NVRT-5PN-L1-PCB  PCB model A PCB Only

999





EID-K-VC-NVRT-5PN-L2-PCB  PCB model B PCB Only

7.95





  •
