NEMA 12 - Welded - "Contempra" Rack Accessories (EID-C3 Series)



Side Panels

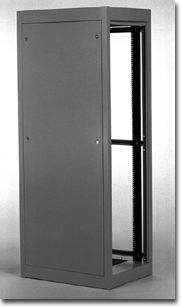

C3 Side Panels

Features:

  • Sold in pairs

  • Constructed of 16 gauge steel

  • Panels fit flush with frame

  • Features quick release quarter turn cam fasteners (4 per side). Also provides a tight seal against the gasket & frame

  • For higher security, quarter turn fasteners can be replaced with key locking versions (see below). Order part number CSPQTRL

  • NEMA 12 rated...

  • Paint matches “EID-C3” type rack frame in the same rugged textured baked enamel finish


  • For 23.63" Deep models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3SP6323CG1



    63

    36

    EID-C3F196323CG1 or EID-C3F246323CG1

    EID-C3SP7023CG1



    70

    40

    EID-C3F197023CG1 or EID-C3F247023CG1

    EID-C3SP7823CG1



    78

    45

    EID-C3F197823CG1 or EID-C3F247823CG1



    For 31.50" Deep models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3SP6331CG1



    63

    36

    EID-C3F196331CG1 or EID-C3F246331CG1

    EID-C3SP7031CG1



    70

    40

    EID-C3F197031CG1 or EID-C3F247031CG1

    EID-C3SP7831CG1



    78

    45

    EID-C3F197831CG1 or EID-C3F247831CG1


    Door (Solid)

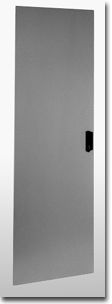

    C3 Door (Solid)

    Features:

    • Surface mount...

    • Heavy Duty 14 gauge steel construction...

    • Smooth action handle provides solid NEMA 12 seal...

    • Quick release hinge design allows for easy removal...

    • Can be used on front or rear of frame...

    • Allows full access to space between panel rails when open...

    • Paint matches “EID-C3” type rack frame in the same rugged textured baked enamel finish...


    For use with 19" Rack Mount Models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS1963CG1



    63

    36

    EID-C3F196323CG1 or EID-C3F196331CG1

    EID-C3DS1970CG1



    70

    40

    EID-C3F197023CG1 or EID-C3F197031CG1

    EID-C3DS1978CG1



    78

    45

    EID-C3F197823CG1 or EID-C3F197831CG1



    For use with 24" Rack Mount Models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS2463CG1



    63

    36

    EID-C3F246323CG1 or EID-C3F246331CG1

    EID-C3DS2470CG1



    70

    40

    EID-C3F247023CG1 or EID-C3F247031CG1

    EID-C3DS2478CG1



    78

    45

    EID-C3F247823CG1 or EID-C3F247831CG1

    Door (Solid - Quarter
    Turn Latching)

    C3 Door (Solid Qtr Turn)

    Features:

    • Surface mount...

    • Heavy Duty 14 gauge steel construction...

    • 3 quarter turn latches provide solid NEMA 12 seal...

    • Latches are close to door edge allowing for maximum door mounting area...

    • Quick release hinge design allows for easy removal...

    • Can be used on front or rear of frame...

    • Allows full access to space between panel rails when open...

    • Paint matches “EID-C3” type rack frame in the same rugged textured baked enamel finish...



    For use with 19" Rack Mount Models



    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS1963QCG1



    63

    36

    EID-C3F196323CG1 or EID-C3F196331CG1

    EID-C3DS1970QCG1



    70

    40

    EID-C3F197023CG1 or EID-C3F197031CG1

    EID-C3DS1978QCG1



    78

    45

    EID-C3F197823CG1 or EID-C3F197831CG1



    For use with 24" Rack Mount Models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS2463QCG1



    63

    36

    EID-C3F246323CG1 or EID-C3F246331CG1

    EID-C3DS2470QCG1



    70

    40

    EID-C3F247023CG1 or EID-C3F247031CG1

    EID-C3DS2478QCG1



    78

    45

    EID-C3F247823CG1 or EID-C3F247831CG1

    Door (Plexiglas)

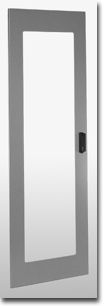

    C3 Plexi Door

    Features:

    • Surface mount...

    • UL/CSA listed polycarbonate window...

    • Heavy Duty 14 gauge steel frame construction...

    • Slim-line handle design allows maximum window viewing area and provides a solid NEMA 12 seal...

    • Quick release hinge design allows for easy removal...

    • Can be used on front or rear of frame...

    • Allows full access to space between panel rails when open...

    • Frame paint matches “EID-C3” type rack frame in the same rugged textured baked enamel finish...



    For use with 19" Rack Mount Models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS1963PCG1



    63

    36

    EID-C3F196323CG1 or EID-C3F196331CG1

    EID-C3DS1970PCG1



    70

    40

    EID-C3F197023CG1 or EID-C3F197031CG1

    EID-C3DS1978PCG1



    78

    45

    EID-C3F197823CG1 or EID-C3F197831CG1



    For use with 24" Rack Mount Models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS2463PCG1



    63

    36

    EID-C3F246323CG1 or EID-C3F246331CG1

    EID-C3DS2470PCG1



    70

    40

    EID-C3F247023CG1 or EID-C3F247031CG1

    EID-C3DS2478PCG1



    78

    45

    EID-C3F247823CG1 or EID-C3F247831CG1

    Solid Cover

    C3 Cover

    Features:

    • Surface mount...

    • 16 gauge steel construction...

    • Screws to frame to provide a solid NEMA 12 seal...

    • Normally used to cover & seal the rear of the rack...

    • Paint matches “EID-C3” type rack frame in the same rugged textured baked enamel finish...


    For use with 19" Rack Mount Models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS1963SCG1



    63

    36

    EID-C3F196323CG1 or EID-C3F196331CG1

    EID-C3DS1970SCG1



    70

    40

    EID-C3F197023CG1 or EID-C3F197031CG1

    EID-C3DS1978SCG1



    78

    45

    EID-C3F197823CG1 or EID-C3F197831CG1



    For use with 24" Rack Mount Models

    Part Number

    1-99

    EID-C3 Rack

    Panel Height

    Use With Frame Part Numbers

    Inches

    U

    EID-C3DS2463SCG1



    63

    36

    EID-C3F246323CG1 or EID-C3F246331CG1

    EID-C3DS2470SCG1



    70

    40

    EID-C3F247023CG1 or EID-C3F247031CG1

    EID-C3DS2478SCG1



    78

    45

    EID-C3F247823CG1 or EID-C3F247831CG1



    General Accessory

    • Extra Panel Rails

    • Tops solid, vented & Raised - note: existing solid top must be removed

    • Fan Tops 4" or 10" Fans - note: existing solid top must be removed

    • Doors solid, louvered & plexi

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels Louvers, slots, baffles etc.

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Shelves & Slides - Dual Vertical Rail Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Cooling Accessories

    • Vertical rack mount power bars

    • Blowers

    • Fan Trays

    • Mounting (Hardware)

    Notes:

    • All Dimensions in inches

      •
