Rack Accessories (Cable Organizing)



Horizontal | Vertical



Horizontal Cable Organizing

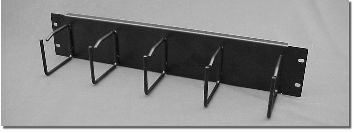

PCMBS Panel

Ring Panel

  • Five steel rings welded to a folded (for extra strength) 19” rack panel

  • Rings extend 3.5" from panel front

  • Rugged textured black powder paint finish

  • Requires mounting hardware



Part Number

1-99

Panel Height

Inches

Units

EID-PCMBS19001BK1



1.75

1

EID-PCMBS19003BK1



3.50

2

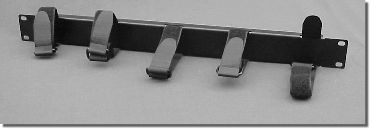

Velcro Strap Panel

Velcro Strap Panel

  • Five velcro strap panel, folded (for extra strength)

  • Standard 19" rack panel

  • Includes five velcro straps

  • Rugged textured black powder paint finish

  • Requires mounting hardware



Part Number

1-99

Panel Height

Inches

Units

EID-PCMBV19001BK1



1.75

1




Rear View


Front View

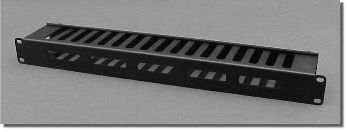

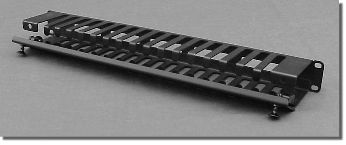

Metal Finger Panel

  • 19” rack mount

  • Snap open, hinged rear door

  • Rack mount side has five slotted openings

  • Extends 3" (not including snap buttons) from rack rails

  • Rugged textured black powder paint finish

  • Requires mounting hardware



Part Number

1-99

Panel Height

Inches

Units

EID-PCMDS19001BK1



1.75

 1

EID-PCMDS19003BK1



3.50

 2

EID-PCMDS19005BK1



5.25

 3

PCMT Trough

Rack Panel Mount Trough

  • Choice of 19” or 23" rack mount

  • Provides support for horizontal runs of heavy cable bundles

  • Uses 3.5" (2U) of panel space

  • Rugged textured black powder paint finish

  • Requires mounting hardware



Part Number

1-99

Color

Panel Width

EID-PCMT19003BK1



Black

19"

EID-PCMT23003BK1



Black

23"

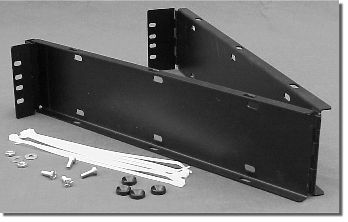

Hinged Cable Guide

Hinged Cable Guide

  • Mounts to standard 19” rack rails

  • Steel construction

  • Includes mounting hardware & tie wraps

  • Rugged textured black powder paint finish



Part Number

1-99

Panel Height

Inches

Units

EID-CGUIDE



3.50

 2

DNCE

Cable Entry Panel

  • Standard 19" rack mount

  • Formed 16 gauge steel construction

  • 15" x 2" cutout opening, with a protected edge

  • Allows for easy entry of cables through 19" panel opening

  • Rugged textured powder paint finish

  • Requires mounting hardware



Part Number

1-99

Color

Panel Height

Inches

Units

EID-DNCE19BK1
EID-DNCE19CG1



Black
Grey/Beige

3.5

2

Vertical Cable Organizing

Vertical Organizer

Vertical Cable Organizer

  • Mounts to depth amhal rack struts, vertically inside rack...

  • Steel body with two quick release doors...

  • Available in two rack heights...

  • Designed to work with our Contempra 2 rack series...

  • Rugged black powder paint finish.



Part Number

1-99

Panel Height

Inches

Units

EID-VCMD70BK1



70.00

40

EID-VCMD78BK1



78.75

45

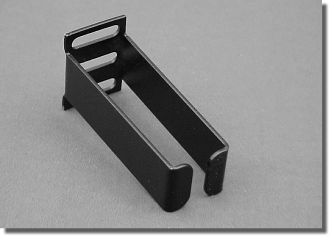

Single Cable Ring

Single Cable Ring

  • Mounts to standard 19” rack rails

  • Steel construction

  • 3.5" long X 1.25" wide

  • Rugged textured black powder paint finish

  • Requires mounting hardware



Part Number

1-99

Panel Height

Inches

Units

EID-CMRBK1



1.75

1



Notes:

  • All Dimensions in inches

  •
