Rack Accessories (Cooling)

19" Fan Panel

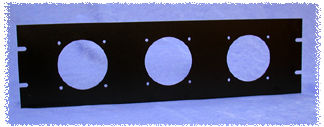

Fan Panel

  • Create your own 19" rack mount fan or filter fan panels

  • Accepts standard square fans (available below or use your own)

  • For a filter fan panel use our filter fan grills below

  • Perfect for an intake fan panel. When using "push-pull" cooling use the fan grill panel below for exhaust

  • Rugged textured black powder paint

  • Requires mounting hardware

  • Control your rack temperature with our economical, compact thermostat



Part Number

1-99

Number of Fan Holes

Accepts Fan Size

Panel Height

Inches

Units

EID-PPFP190802BK1



2

3.15"

5.25

3

EID-PPFP190803BK1



3

3.15"

5.25

3

EID-PPFP191202BK1



2

4.70"

7.00

4

19" Fan Grill Panel

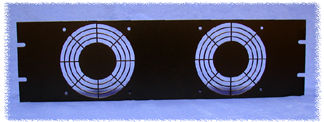

Fan Grill Panel

  • Create your own 19" rack mount fan panels

  • Accepts standard square fans (4.7" available below or use your own)

  • Perfect as an exhaust fan panel when using "push-pull" cooling. Use the fan panel above, with filter grills for intake

  • Rugged textured black powder paint finish

  • Requires mounting hardware

  • Control your rack temperature with our economical, compact thermostat



Part Number

1-99

Number of Fan Holes

Accepts Fan Size

Panel Height

Inches

Units

EID-PPGP191202BK1



2

4.70"

5.25

3



Click here to enlarge



Filter Fan Grills

  • Create your own filter fans or exhaust grills

  • Mounts easily with 4 screws using template and hardware provided.

  • Complete with flame retardant ABS plastic grill and flame retardant synthetic filter.

  • Integral gasket on reverse side of grill, seals against mounting surface.

  • Hole cutout is NOT critical as rear of filter grill seals to surface (see rear photo below)

  • Can be used with standard 3.15" or 5.25" square fans (available below or use your own) or alone as as exhaust grill

  • Molded in a choice of 3 colors to match our racks & accessories



Click here to enlarge

Shown left to right 4.7" and 3.15" models (black)

4.7" model shown with fan installed (not included)



Part Number

1-99

Color

Grill Size

Use With Square
Fan Size

H

W

EID-XPFA80BK
EID-XPFA80CG
EID-XPFA80GY



Black
Gray/Beige
ASA 61 Gray

4.13"

4.13"

3.15"

EID-XPFA120BK
EID-XPFA120CG
EID-XPFA120GY



Black
Gray/Beige
ASA 61 Gray

5.91"

5.91"

4.70"



Photo Features:



Click here to enlarge

Click here to enlarge

Open Photo

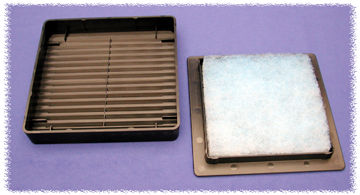

(Front, Back & Filter)

Rear Photo



Synthetic Filter



Replacement Filters (5 per pack)

Part Number

1-99

Use With Square Fan Size

EID-PFF1000



3.15" (EID-XPFA80 series)

EID-PFF2000



4.7" (EID-XPFA120 series)

Click Here To Enlarge



Fans (Tubeaxial)

  • Choice of 4.70" (100mm) or 3.15" (80mm)

  • 1.50" deep

  • Choice of either 115 or 230 VAC, 50/60 Hz.

  • Impedance protected motor

  • Class-B insulated

  • Ball bearing construction, metal blades

  • Diecast aluminum body

  • Rotation is counter clockwise (looking at the rotor - as pictured)

  • Airflow is over the struts (out the back as pictured)

  • 4.70" (100 mm) fans have male plug terminations (requires fan cords below)

  • 3.15" (80 mm) fans have 11" long lead wires

  • UL recognized, CSA listed, CE certified

  • With mounting hardwar

Click Here To Enlarge

4.70" (100mm) Size

3.15" (80mm) Size



115 VAC Fans (50/60 Hz.)

Part Number

1-99

Size

CFM

Wattage

Use With Fan Guard
Part Number
(see below)

Use With Filter
Grill (see above)
Part Number

Inches

mm

EID-FAN80AC115



3.15

80

32

10

FAN80FG

EID-XPFA80...

EID-DNMF100AC115



4.70

100

105

22

EID-DNFG

EID-XPFA120...



230 VAC Fans (50/60 Hz.)

Part Number

1-99

Size

CFM

Wattage

Use With Fan Guard
Part Number

Use With Filter
Grill (see above)
Part Number

Inches

mm

EID-FAN80AC230



3.15

80

32

10

FAN80FG

EID-XPFA80...

EID-DNMF100AC230



4.70

100

105

22

EID-DNFG

EID-XPFA120...



Metal Fan Guards (with mounting hardware)



Fan Grills



Part Number

1-99

Size

Inches

mm

EID-FAN80FG



3.15

80

EID-DNFG



4.70

100



Fan Cord

Fan Cords

  • For 115 VAC wiring

  • Molded female fan plug (0.91" x 0.68")



Part Number

1-99

Description

Lead Length

Fan Connector

115VAC Plug

EID-DNMFC



Single Fan Cord

24"

Straight

No

EID-DNFC48P



Single Fan Cord

48"

45 degree

Yes

EID-DNFC72P



Single Fan Cord

72"

45 degree

Yes

EID-DNFCDC2P



Daisy Chain

24"

Qty 2-45 degree, 24" apart

Yes

EID-DNFCDC3P



Daisy Chain

24"

Qty 3-45 degree, 24" apart

Yes

Baffle Panel

Baffle Panel

  • Mounts to standard 19” rack rails

  • Extends 14" behind rack rails - rear sloping

  • Uses only a single rack panel space (1.75")

  • Steel construction

  • Shown here upside down to show construction

  • Rugged, heat absorbing black powder paint finish

  • Requires mounting hardware

Part Number

1-99

Panel Height

Inches

Units

EID-PVBB19001BK2



1.75

1

 PVLL

Louvered Panel

  • Standard 19" rack mount

  • Formed 16 gauge construction

  • Designed with 3 columns of 4 inch wide louvers

  • Louvers face out

  • Powder paint finish

  • Requires mounting hardware



Part Number

1-99

Color

Paint
Texture

Panel Height

Inches

Units

EID-PVLL19005BK2
EID-PVLL19005CG2



Black
Gray/Beige

Smooth
Smooth

5.25

3

EID-PVLL19007BK2
EID-PVLL19007CG2



Black
Gray/Beige

Smooth
Smooth

7.00

4

EID-PVLL19008BK2
EID-PVLL19008CG2



Black
Gray/Beige

Smooth
Smooth

8.75

5

EID-PVLL19010BK2
EID-PVLL19010CG2



Black
Gray/Beige

Smooth
Smooth

10.50

6

EID-PVLL19012BK2
EID-PVLL19012CG2



Black
Gray/Beige

Smooth
Smooth

12.25

7

 PVSS

Steel Slotted Panel

  • Standard 19" rack mount

  • 14 gauge steel construction

  • Slots are 0.25" x 1.0"

  • Powder paint finish

  • Requires mounting hardware



Part Number

1-99

Color

Paint
Texture

Rows of Slots

Panel Height

Open Space
(Cubic In.)

Inches

Units

EID-PVSS19001BK2
EID-PVSS19001CG2



Black
Gray/Beige

Smooth
Smooth

1

1.75

1

9.7

EID-PVSS19003BK2
EID-PVSS19003CG2



Black
Gray/Beige

Smooth
Smooth

2

3.50

2

19.4

 PVSA

Aluminum Slotted Panel

  • Standard 19" rack mount

  • 0.13" thick aluminum construction

  • Slots are 0.25" x 1.0"

  • Powder paint finish

  • Requires mounting hardware



Part Number

1-99

Color

Paint
Texture

Rows of Slots

Panel Height

Open Space
(Cubic In.)

Inches

Units

EID-PVSA19001BK2
EID-PVSA19001CG2



Black
Gray/Beige

Smooth
Smooth

1

1.75

1

9.7

EID-PVSA19003BK2
EID-PVSA19003CG2



Black
Gray/Beige

Smooth
Smooth

2

3.50

2

19.4



Notes:

  • All Dimensions in inches or millimeters

  •
