"Contempra 2" Rack Accessories - Fan Tops



Fan Top Panel | 4" Wired Fan Top | 10" Fan Top

4 hole - 23.63" deep version

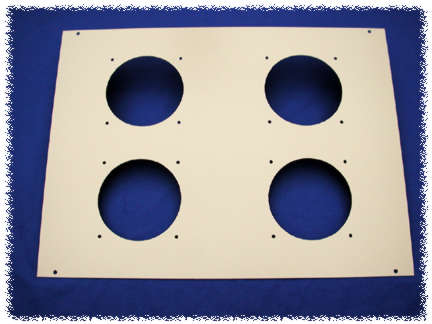

Fan Top Panel

  • Use only with Contempra 2 rack frames

  • 14 gauge steel construction

  • 4" fan top panel - fans not included (see below)

  • 4 or 6 opening depending on depth of rack

  • Maximum flexibility - add fans, leave holes open (for cable access) or use covers (see below)

  • Control your rack temperature with our economical, compact thermostat



4" Fan Top Panels
(Pre-punched for 4" fans - accepts our fan P/N DNMF100AC115 - see below)



Part Number

1-99

Color

Paint Texture

Use With
Rack Frame
Depth

Number of
Fan Holes

EID-C2T1923FBK1
EID-C2T1923FCG1



Black
Gray/Beige

Textured
Textured

23.63"

4

EID-C2T1931FBK1
EID-C2T1931FCG1



Black
Gray/Beige

Textured
Textured

31.5"

6

EID-C2T1936FBK1
EID-C2T1936FCG1



Black
Gray/Beige

Textured
Textured

36"

6



NOTE: Fans, finger guards & cords NOT included



Click Here To Enlarge

4.70" (100mm) Size

Fans (Tubeaxial)

  • Standard 4.70" (100mm) fan

  • 1.50" deep

  • Choice of either 115 or 230 VAC, 50/60 Hz.

  • Impedance protected motor

  • Class-B insulated

  • Ball bearing construction, metal blades

  • Diecast aluminum body

  • Rotation is counter clockwise (looking at the rotor - as pictured)

  • Airflow is over the struts (out the back as pictured)

  • 4.70" (100 mm) fans have male plug terminations (requires fan cords below)

  • UL recognized, CSA listed, CE certified

  • With mounting hardware

115 VAC Fans (50/60 Hz.)



Part Number

1-99

Size

CFM

Wattage

Use With Fan Guard
Part Number
(see below)

Use With Filter
Grill (see above)
Part Number

Inches

mm

EID-DNMF100AC115



4.70

100

105

22

DNFG

XPFA120...



230 VAC Fans (50/60 Hz.)



Part Number

1-99

Size

CFM

Wattage

Use With Fan Guard
Part Number

Use With Filter
Grill (see above)
Part Number

Inches

mm

EID-DNMF100AC230



4.70

100

105

22

DNFG

XPFA120...


Metal Fan Guards
(with mounting hardware)



Fan Grills



Part Number

1-99

Size

Inches

mm

EID-DNFG



4.70

100



4" Fan Hole Cover

4" Fan Hole Cover

  • Constructed of 14 gauge steel

  • For covering unused fan top openings on 4" fan tops (see above)

  • Individually packaged, hardware included



Part Number

1-99

Color

Paint Texture

EID-DNFPBK1
EID-DNFPCG1



Black
Grey/Beige

Textured
Textured



4" Fan Cord

Fan Cords

  • For 115 VAC wiring

  • Molded female fan plug (0.91" x 0.68")





Part Number

1-99

Description

Lead Length

Fan Connector

115VAC Plug

EID-DNMFC



Single Fan Cord

24"

Straight

No

EID-DNFC48P



Single Fan Cord

48"

45 degree

Yes

EID-DNFC72P



Single Fan Cord

72"

45 degree

Yes

EID-DNFCDC2P



Daisy Chain

24"

Qty 2-45 degree, 24" apart

Yes

EID-DNFCDC3P



Daisy Chain

24"

Qty 3-45 degree, 24" apart

Yes

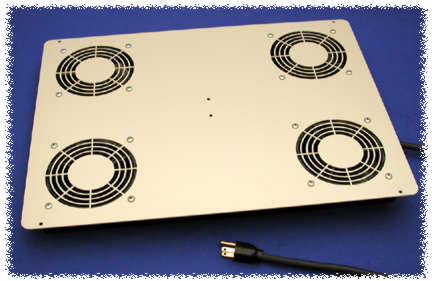

4" Pre-Wired Fan Top

Top View

Top View

Bottom View

Bottom View

  • Use only with Contempra 2 rack frames

  • Includes a quantity of 4 - long life, ball bearing, 4", 115 volt, 50/60 Hz. AC, 100 CFM fans

  • Finger guards are punched into top panel and bottom of fan top

  • Fans are pre-wired, installed and complete with 3 foot cord & plug

Part Number

1-99

Color

Paint Texture

Use With
Rack Frame
Depth

EID-C2T1923F4BK1
EID-C2T1923F4CG1



Black
Gray/Beige

Textured
Textured

23.63"

EID-C2T1931F4BK1
EID-C2T1931F4CG1



Black
Gray/Beige

Textured
Textured

31.5"

EID-C2T1936F4BK1
EID-C2T1936F4CG1



Black
Gray/Beige

Textured
Textured

36



Spare Fans
(Included in above)



Part Number

1-99

Color

Size

CFM

EID-DNMF100AC115



Black

4"

100

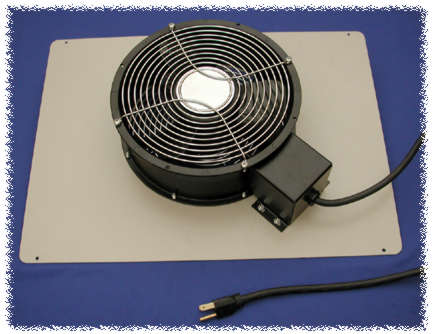

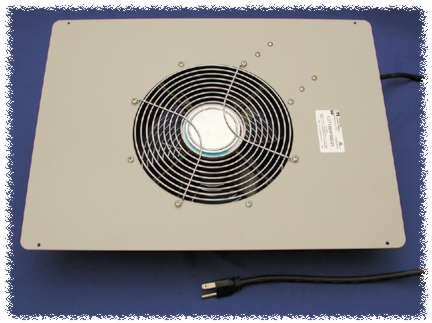

10" Fan Top

Top View

Top View

Bottom View

Bottom View

  • Use only with Contempra 2 rack frames

  • Includes quantity 1 - 10", 550 CFM, 115 V 50/60 Hz. AC fan

  • 35 watt motor

  • Thermal protected motor

  • Ball bearing construction, plastic blades (3)

  • Diecast aluminum body fan

  • Rotation is clockwise (looking down at the rotor - as pictured on the left)

  • Airflow exhausts the rack (out the top as pictured on the left)

  • C UL & UL recognized

  • 5' cord and molded on plug

  • Top & bottom finger guards included

  • Pre-wired and assembled as shown above

As Pictured Above



Part Number

1-99

Color

Paint Texture

Use With
Rack Frame
Depth

EID-C2T1923F10BK1
EID-C2T1923F10CG1



Black
Gray/Beige

Textured
Textured

23.63"

EID-C2T1931F10BK1
EID-C2T1931F10CG1



Black
Gray/Beige

Textured
Textured

31.5"

EID-C2T1936F10BK1
EID-C2T1936F10CG1



Black
Gray/Beige

Textured
Textured

36"



Same As Above Plus 4 - 3.5" Diameter
Cable Access Holes & Covers
in Each Corner



Part Number

1-99

Color

Paint Texture

Use With
Rack Frame
Depth

EID-C2T1923F10CEBK1
EID-C2T1923F10CECG1



Black
Gray/Beige

Textured
Textured

23.63"

EID-C2T1931F10CEBK1
EID-C2T1931F10CECG1



Black
Gray/Beige

Textured
Textured

31.5"

EID-C2T1936F10CEBK1
EID-C2T1936F10CECG1



Black
Gray/Beige

Textured
Textured

36"



Spare 10" Fans
(Included in above)



Part Number

1-99

Color

Size

CFM

EID-FAN10A115



Black

10"

550



Spare 10" Fan Guards
(Included in above)
(Complies with UL, CSA and VDE requirements. Meets UL 0.25" plug gauge test)



Part Number

1-99

Color

Use with Fan Size

EID-FAN10FG



Wire mesh, nickel plated

10"



  •
