Rack Fan Trays

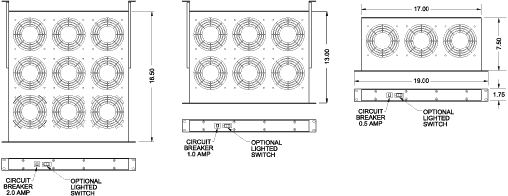

3, 6 + 9 Fan Tray



Features:

  • Standard 19" rack mount

  • Compact and economical rack cooling solution.

  • Fan trays can be positioned at the bottom of a rack to force air through the cabinet, at the top to exhaust air out or below specific pieces of equipment for spot cooling

  • 115VAC 50/60 Hz., thermally protected, ball bearing fans

  • Circuit breaker protected

  • Low profile 1.75" (1U) of panel space

  • 6' 14/3 STJW cord with molded 3 prong plug included

  • Integral finger guards above and below fans

  • Case width is 17"

  • 6 and 9 fan units include an adjustable rear mounting bracket (mounts to rear panel rails) for extra stability

  • Shipped fully assembled

  • Available with or without on/off switch

  • Finished in smooth black powder paint

  • Control your rack temperature with our economical, compact thermostat



Part Number
(No on/off Switch)

1-99

Number
Of Fans

Free Flow
Air Delivery
(CFM)

Running Amps

Running Wattage

Case Depth

Rear Bracket Depth

Min.

Max.

FT300TA1BK



3

300

0.5

40

7.50"

n/a

n/a

FT600TA1BK



6

600

1.0

80

13.00"

2.4"

19.2"

FT900TA1BK



9

900

1.5

120

18.50"

7.9"

24.7"


Part Number
(With on/off Switch)

1-99

Number
Of Fans

Free Flow
Air Delivery
(CFM)

Running Amps

Running Wattage

Case Depth

Rear Bracket Depth

Min.

Max.

FT300HA1BK



3

300

0.5

40

7.50"

n/a

n/a

FT600HA1BK



6

600

1.0

80

13.00"

2.4"

19.2"

FT900HA1BK



9

900

1.5

120

18.50"

7.9"

24.7"



  •
