Rack Accessories - Miscellaneous



Touch Up Paint - Spray Cans

Touch Up Paint

  • For use in matching standard Hammond Mfg. colors

  • Supplied in 12 oz. spray cans

Part Number

1-99

Color

EID-1413BKLGS



Black - Low Gloss

EID-1413BKS



Black

EID-1413CGRALS



Contempra Grey

EID-1413GFS



Gulf Blue

EID-1413LRS



ASA61 Grey

EID-1413NS



White



Print Pockets

Literature Pocket Kit

  • Typically applied inside the door or side panels of the rack

  • For literature storage

  • Kit includes plastic pocket, high strength two-sided adhesive tape and surface preparation swab

  • Plastic pocket is black

Part Number

1-99

Height

Width

EID-PKT66



6"

6"

EID-PKT99



6"

9"

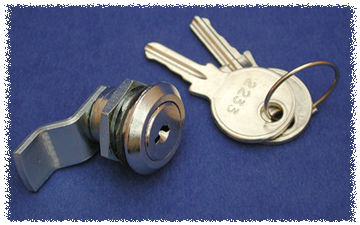

Locking 1/4 turn fasteners

Side Panel Lock Kit (Contempra 2 Racks)

  • For higher security, the quarter turn fasteners on our side panels
    can be replaced with this key locking version.

  • Kit contains 4 quarter turn locks and 8 keys (all keyed alike).

  • Good for 1 rack (ie...2 locks per side panel)

Part Number

1-99

Use With

EID-CSPQTRL



"C2" Contempra Rack Side Panels



Flush Lock

Cam Flush Lock Kit

  • Quarter turn fastener

  • Mounts flush in a 0.760" x 0.655" double D hole or alternately a 0.75" diameter hole..

  • Kit contains 1 quarter turn lock and 2 keys (all keyed alike).

  • Chrome plated brass housing with reversible cam.

Part Number

1-99

Use With

EID-1427BK



Flush mount doors or panels



Copper Bus Bar

Ground Bus Bars

  • Full Length copper bar - mounts vertically

  • 0.13" thick x 0.63" wide

  • Mounts to amhal struts of "C2" Contempra racks or REFK racks

  • Includes mounting hardware

Part Number

1-99

Use With Rack (Panel Space)

EID-CBB35



35"

EID-CBB42



42"

EID-CBB49



49"

EID-CBB56



56"

EID-CBB63



63"

EID-CBB70



70"

EID-CBB78



78.75"



Ground Lug

Ground Lugs

  • Dual L16 type aluminum lug

  • 1 1/8" wide x 1 3/16" long

  • Provides excellent grounding

  • Accepts wire sizes from 1/0 to 14

  • Usually used in conjunction with bus bar (above)

  • Packaged individually

  • Mounting hardware not included (requires drilling of bus bar)

Part Number

1-99

Package Quantity

EID-DNGL



1



Light Kit

Light Kit

  • Designed to fit inside the cabinets

  • Features a manually operated switch, 115VAC convenience outlet, durable plastic lens (replacement lens below) and 6' power cord (without plug)

  • Finished in white

  • CSA & UL component recognized

  • Installs with 1/4-20 bolts placed through holes (user drilled) in top of cabinet (or use magnet mount below). Screws and sealing washers provided

  • Uses standard 18" florescent lamps (NOT INCLUDED)

  • 1 3/4" high x 4 1/2" deep

  • Includes mounting hardware

Part Number

1-99

Description

EID-FLK18



18" Florescent Light Kit

EID-FLK18LENSE



Replacement plastic lens



Double Magnet Strip

Light Kit Magnet Mount

  • Designed to allow solid mounting of light kit (above) without drilling

  • Also allows light to be easily moved within the rack

  • Full length of light kit

Part Number

1-99

Description

EID-FLK18MM



Florescent Light Kit - Magnet Mount



  •
