Rack Accessories (Dual Vertical Rail Mount Shelves, Drawers & Slides)



Fixed Chassis/Shelf

Fixed Chassis/Shelf

  • Shelf can be used as a permanently mounted support shelf or as a pull out chassis

  • Will also accept type "RSLIDE" equipment slides (see below) for pull out applications

  • 18-gauge steel shelf and 14-gauge brackets

  • Shelf is 16.8” wide and 0.5” high

  • Finished in white powder paint for high visibility

  • MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)


19" Rack Mount



Part Number

1-99

Color

Paint
Texture

Shelf Depth

Bracket Depth

 Inches

Inches

EID-RASC1912WH2



White

Smooth

11.9

 13.2

EID-RASC1916WH2



White

Smooth

15.9

 14.9

EID-RASC1922WH2



White

Smooth

 21.9

 20.9


24" Rack Mount



Part Number

1-99

Color

Paint
Texture

Shelf Depth

Bracket Depth

 Inches

Inches

EID-RASC2412WH2



White

Smooth

11.9

 13.2

EID-RASC2416WH2



White

Smooth

15.9

 14.9

EID-RASC2422WH2



White

Smooth

 21.9

 20.9


Note: Weight load tested (EID-RASC1922WH2) to 85 pounds.



Unvented

Fixed Shelf (Un-vented or Vented)

  • Attach to both pair of rack combination rails

  • The vented version provides a sturdy shelf without obstructing upward heat movement

  • Front & rear lip folded down for extra strength

  • Heavy duty, 14 Ga. steel construction

  • Sides folded up for easy hardware installation from above

  • Sides are slotted for easy adjustment with most rail depth locations

  • Rugged textured powder paint finish

  • If used with our square hole rails you will need to order P/N CPRSA rail adaptor for each shelf ordered.
    Link here to more information.

  • MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)



Click here to enlarge

Click here to enlarge



UN-VENTED
19" Rack Mount



Part Number

1-99

Color

Paint
Texture

Shelf Depth

RFUS1918BK1
RFUS1918CG1



Black
Grey/Beige

Textured
Textured

 18"

RFUS1921BK1
RFUS1921CG1



Black
Grey/Beige

Textured
Textured

 21"

RFUS1926BK1
RFUS1926CG1



Black
Grey/Beige

Textured
Textured

 26"

RFUS1931BK1
RFUS1931CG1



Black
Grey/Beige

Textured
Textured

31"



UN-VENTED
24 " Rack Mount



Part Number

1-99

Color

Paint
Texture

Shelf Depth

RFUS2418BK1
RFUS2418CG1



Black
Grey/Beige

Textured
Textured

 18"

RFUS2421BK1
RFUS2421CG1



Black
Grey/Beige

Textured
Textured

 21"

RFUS2426BK1
RFUS2426CG1



Black
Grey/Beige

Textured
Textured

 26"

RFUS2431BK1
RFUS2431CG1



Black
Grey/Beige

Textured
Textured

31"


Note: Weight load tested (RFUS2426BK1) to 350 pounds.



VENTED
19" Rack Mount



Part Number

1-99

Color

Paint
Texture

Shelf Depth

RFVS1918BK1
RFVS1918CG1



Black
Grey/Beige

Textured
Textured

 18"

RFVS1921BK1
RFVS1921CG1



Black
Grey/Beige

Textured
Textured

 21"

RFVS1926BK1
RFVS1926CG1



Black
Grey/Beige

Textured
Textured

 26"

RFVS1931BK1
RFVS1931CG1



Black
Grey/Beige

Textured
Textured

31"



VENTED
24 " Rack Mount



Part Number

1-99

Color

Paint
Texture

Shelf Depth

RFVS2418BK1
RFVS2418CG1



Black
Grey/Beige

Textured
Textured

 18"

RFVS2421BK1
RFVS2421CG1



Black
Grey/Beige

Textured
Textured

 21"

RFVS2426BK1
RFVS2426CG1



Black
Grey/Beige

Textured
Textured

 26"

RFVS2431BK1
RFVS2431CG1



Black
Grey/Beige

Textured
Textured

31"



Note: Weight load tested (RFVS2426BK1) to 350 pounds.

Square Hole Panel Rail Adaptor

Click Here To Enlarge

Part Number CPRSA

  • use with RFVS & RFUS series (above) when using square hole rails

  • set of 4

  • includes mounting hardware

Vented

Rail Mounted Sliding Shelf (Vented or Un-vented)

  • Attach to both pair of 19” rack rails

  • The vented version provides a sturdy shelf without obstructing upward heat movement

  • Heavy duty ball bearing slides included

  • Heavy duty, 14 Ga. steel construction

  • Folded on all four sides for extra strength

  • Rugged textured powder paint finish

  • MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)



Click Here To Enlarge

Click Here To Enlarge



UN-VENTED
19" Rack Mount



Part Number

Color

Paint
Texture

Shelf Depth

Slide
Travel

RSUS1918BK1
RSUS1918CG1

Black
Grey/Beige

Textured
Textured

 18"

18"

RSUS1921BK1
RSUS1921CG1

Black
Grey/Beige

Textured
Textured

 21"

20"

RSUS1926BK1
RSUS1926CG1

Black
Grey/Beige

Textured
Textured

 26"

26"

RSUS1931BK1
RSUS1931CG1

Black
Grey/Beig

Textured
Textured

31"

28"



UN-VENTED
24 " Rack Mount



Part Number

Color

Paint
Texture

Shelf Depth

Slide
Travel

RSUS2418BK1
RSUS2418CG1

Black
Grey/Beige

Textured
Textured

 18"

18"

RSUS2421BK1
RSUS2421CG1

Black
Grey/Beige

Textured
Textured

 21"

20"

RSUS2426BK1
RSUS2426CG1

Black
Grey/Beige

Textured
Textured

 26"

26"

RSUS2431BK1
RSUS2431CG1

Black
Grey/Beig

Textured
Textured

31"

28"



Note: Weight load tested (RFUS2426BK1) to 120 pounds.



VENTED
19" Rack Mount



Part Number

Color

Paint
Texture

Shelf Depth

Slide
Travel

RSVS1918BK1
RSVS1918CG1

Black
Grey/Beige

Textured
Textured

 18"

18"

RSVS1921BK1
RSVS1921CG1

Black
Grey/Beige

Textured
Textured

 21"

20"

RSVS1926BK1
RSVS1926CG1

Black
Grey/Beige

Textured
Textured

 26"

26"

RSVS1931BK1
RSVS1931CG1

Black
Grey/Beige

Textured
Textured

31"

28"



VENTED
24 " Rack Mount



Part Number

Color

Paint
Texture

Shelf Depth

Slide
Travel

RSVS2418BK1
RSVS2418CG1

Black
Grey/Beige

Textured
Textured

 18"

18"

RSVS2421BK1
RSVS2421CG1

Black
Grey/Beige

Textured
Textured

 21"

20"

RSVS2426BK1
RSVS2426CG1

Black
Grey/Beige

Textured
Textured

 26"

26"

RSVS2431BK1
RSVS2431CG1

Black
Grey/Beige

Textured
Textured

31"

28"



Note: Weight load tested (RSVS2426BK1) to 120 pounds.

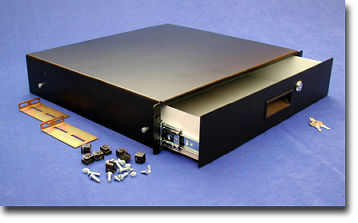

Drawer Kit

Rail Mounted Storage Drawer

  • Standard 19" rack mount

  • Plastic front pull handle

  • Complete drawer with slides, hardware, lock & two keys

  • Drawer shroud, 14 Ga. steel construction

  • Available in 3 depths

  • Rear support brackets included for all depths or can be supported from rear accessory rail

  • Drawer interior smooth white powder paint for high visibility

  • Front face finished in tough textured powder paint

  • MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)



12" DEEP DRAWER



Part Number

1-99

Color

Paint
Texture

Drawer Height

Slide
Travel

EID-RDRW1900312BK1
EID-RDRW1900312CG1



Black
Grey/Beige

Textured
Textured

 3.50"

12"

EID-RDRW1900512BK1
EID-RDRW1900512CG1



Black
Grey/Beige

Textured
Textured

 5.25"

12"

EID-RDRW1900712BK1
EID-RDRW1900712CG1



Black
Grey/Beige

Textured
Textured

 7.00"

12"

EID-RDRW1900812BK1
EID-RDRW1900812CG1



Black
Grey/Beige

Textured
Textured

 8.75"

12"

EID-RDRW1901212BK1
EID-RDRW1901212CG1



Black
Grey/Beige

Textured
Textured

12.25"

12"



16" DEEP DRAWER



Part Number

1-99

Color

Paint
Texture

Drawer
Height

Slide
Travel

EID-RDRW1900316BK1
EID-RDRW1900316CG1



Black
Grey/Beige

Textured
Textured

 3.50"

16"

EID-RDRW1900516BK1
EID-RDRW1900516CG1



Black
Grey/Beige

Textured
Textured

 5.25"

16"

EID-RDRW1900716BK1
EID-RDRW1900716CG1



Black
Grey/Beige

Textured
Textured

 7.00"

16"

EID-RDRW1900816BK1
EID-RDRW1900816CG1



Black
Grey/Beige

Textured
Textured

 8.75"

16"

EID-RDRW1901216BK1
EID-RDRW1901216CG1



Black
Grey/Beige

Textured
Textured

12.25"

16"



22" DEEP DRAWER



Part Number

1-99

Color

Paint
Texture

Drawer Height

Slide
Travel

EID-RDRW1900322BK1
EID-RDRW1900322CG1



Black
Grey/Beige

Textured
Textured

 3.50"

22"

EID-RDRW1900522BK1
EID-RDRW1900522CG1



Black
Grey/Beige

Textured
Textured

 5.25"

22"

EID-RDRW1900722BK1
EID-RDRW1900722CG1



Black
Grey/Beige

Textured
Textured

 7.00"

22"

EID-RDRW1900822BK1
EID-RDRW1900822CG1



Black
Grey/Beige

Textured
Textured

 8.75"

22"

EID-RDRW1901222BK1
EID-RDRW1901222CG1



Black
Grey/Beige

Textured
Textured

12.25"

22"



Note: Weight load tested (EID-RDRW1900322BK1) to 60 pounds (no rear support), (EID-RDRW2400822BK1) to 120 pounds (with rear support).

Click here to enlarge

Rail Mounted
Equipment Slides

  • Standard 19" rack mountable

  • Sold in pairs

  • Mounts to front & rear flange on both pairs of vertical panel rails (not included)

  • Heavy duty - double rail, ball bearing type

  • MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)



Part Number

1-99

Length

Capacity (Pair)

Slide
Travel

EID-RSLIDE12



12"

120 #

12"

EID-RSLIDE16



16"

130 #

16"

EID-RSLIDE22



22"

120 #

22"



Drawing of Rail Mounting


Click To Enlarge

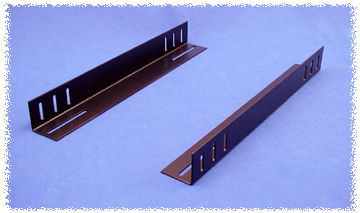

RASA Side Support Angles

Adjustable Side Support Angles

  • Angles mount on accessory rails with either leg or both used as support

  • Slots allow up/down and front/back adjustments

  • Made of 14 gauge steel, with dimensions of 1.75" x 1.75"

  • Finished in rugged textured black powder paint

  • Requires mounting hardware

  • MOUNTS ON TWO PAIR OF MOUNTING RAILS (FRONT & BACK)



Part Number

1-9

10-99

100-999

Color

Length

EID-RASA12BK3







Black

9.97"

EID-RASA16BK3







Black

14.95"

EID-RASA22BK3







Black

20.95"

EID-RASA28BK3







Black

28.00"

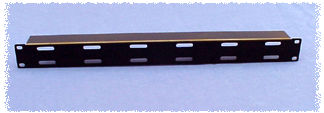

RASB Rear Support Bar

Rail Mounted Rear Support Bar

  • Standard 19" rack mountable

  • Heavy duty 14 gauge steel support fastens between accessory rails for support across rear of equipment

  • Folded top edge for extra deep edge & extra strength

  • Uses only 1U (1.75") of panel space

  • Includes slots for easy installation of cable ties or velcro belts for cable organizing

  • Rugged textured black powder paint finish

  • Requires mounting hardware



Part Number

1-9

10-99

100-999

Color

Paint
Texture

Length

EID-RASB19BK1







Black

Textured

19"



Notes:

  • All Dimensions in inches

  •
