Welded - Sloped Consoles (EID-1564 Series)



Features:

  • Heavy duty, 14 gauge steel frame - welded console frame...

  • Standard 19” panel width (22.56” overall)...

  • Choice of two depths 24.5”, 31.5” usable depth...

  • Unit is shipped as welded frame with 4 upper black, combination rails, 4 lower black combination rails and 4 levelling feet...

  • Save time, link here (RS series) to our assembled "Rapid Rack" version, complete with our most popular accessories...

  • Finished in powder paint.

  •

    Part Number

    1-99

    Color

    Paint Texture

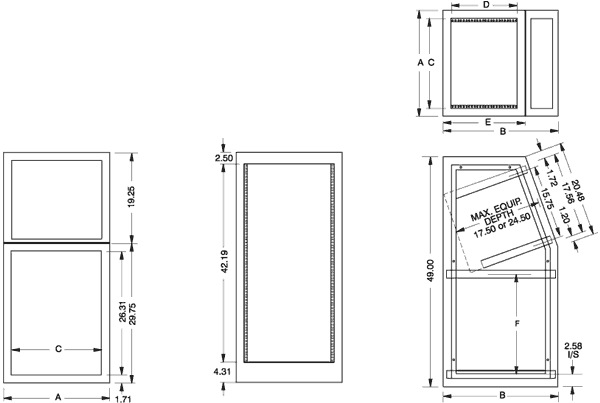

    Overall Dimensions

    A

    B

    C

    D

    E

    F

    EID-1564A2BK1
    EID-1564A2CG1



    Black
    Gray/Beige

    Textured
    Textured

    22.56

    24.5

    19.06

    14

    17.5

    21.31

    EID-1564B2BK1
    EID-1564B2CG1



    Black
    Gray/Beige

    Textured
    Textured

    22.56

    31.5

    19.06

    21

    24.5

    19.56


    Accessories:

    Casters (Part Number 1425P)

    1425P Caster Set

    • Supplied as a set of 4...

    • Manufacturers specified 400# capacity (per set)...

    • Twin nylon swivel wheels with zinc axels & hoods...

    • Wheel dia. 2.37" (final mounting height of 2.75"...

    • 5/16"-18 threaded stem mounts into existing holes in base of rack.



    General Accessory

    • Extra Panel Rails

    • Tops solid, vented & Raised - note: existing solid top must be removed

    • Fan Tops 4" or 10" Fans - note: existing solid top must be removed

    • Doors solid, louvered & plexi

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels Louvers, slots, baffles etc.

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Shelves & Slides - Dual Vertical Rail Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Cooling Accessories

    • Vertical rack mount power bars

    • Blowers

    • Fan Trays

    • Mounting (Hardware)

    Notes:

    • All Dimensions in inches

      •
