Open Frame Racks (EID-DNRR Series) - Heavy Duty Version



DNRR "H" Open Frame Rack

Features:

  • Welded 19” racks (20” wide overall)...

  • No assembly required...

  • Fabricated in 10-gauge steel or light duty (12-gauge steel) version available...

  • Front flange is drilled and tapped (10-32) universal EIA (5/8 - 5/8 - 1/2 inch) spacing...

  • For use as a single, free standing unit for sturdy support of standard 19” rack mount devices...

  • Recommended maximum weight (EID-DNRR84HDW tested) - 1,500 pounds...

  • Finished in rugged powder paint.

  • Part Number

    Color

    Paint Texture

    1-99

    Panel Height

    Overall Dimensions

    Wt. lbs.

    Inches

    Units

    Width

    A

    EID-DNRR42HDW

    Black

    Textured



    42

    24

    20

    48.13

    65

    EID-DNRR63HDW

    Black

    Textured



    63

    36

    20

    69.13

    77

    EID-DNRR70HDW

    Black

    Textured



    70

    40

    20

    76.13

    80

    EID-DNRR77HDW

    Black

    Textured



    77

    44

    20

    83.13

    82

    EID-DNRR84HDW

    Black

    Textured



    84

    48

    20

    90.13

    87


    Heavy Duty Dolly:

    1424T Dolly

    Part Number 1424T

    • Heavy duty design, 10 gauge folded & welded steel plate

    • Finished in rugged textured black (BK1) powder paint.

    • For use with EID-DNRR-HDW rack ONLY.

    • Assembled with 4 - 2.0" diameter casters (manufacturer’s specified capacity of 600 lbs.)

    • Comes with mounting hardware




    Vertical Cable Organizers:

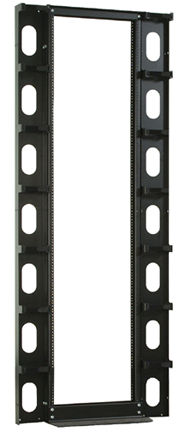

    Dual Vertical Cable Organizers

    • Used to organize large bundles of connecting wires

    • Manufactured in 16 Ga. steel

    • Mounts to either side of open relay rack (includes mounting hardware)

    • Finished in rugged black textured powder paint

    • Two units shown here, with a black painted RRAL open relay rack



    Part Number

    Use

    Color

    Rack Height

    1-9 10-99

    EID-RRCMS48

    Single Side

    Black

    48"



    EID-RRCMS72

    Single Side

    Black

    72"



    EID-RRCMS84

    Single Side

    Black

    84"



    EID-RRCMD84

    Both Sides (shown)

    Black

    84"




    Accessories:

    • Aluminum rack panels

    • Steel rack panels

    • Formed steel rack panels

    • Ventilated & Access Panels

    • Doors & Chassis - Panel Mount

    • Cable Organizing

    • Shelves - Panel Mount

    • Keyboard Shelves & Drawers

    • Rack mount power bars

    • Cooling Accessories

    • Blowers

    • Fan Trays

    • Mounting hardware

    Notes:

    • All Dimensions in inches

      •
