Welded
- Assembled "Contempra" Rapid Racks
(EID-C2RR Series)
 |
Features:
Heavy
duty - welded rack (1,500 lb even load rating)...
Standard
19” panel width (23” overall)...
Choice
of two stock depths:
-
usable
depth of 21.63" (23.63” overall)
-
usable
depth of 29.50" (31.50" overall)
Unit
is shipped complete (NO ASSEMBLY REQUIRED) with
removable side panels (1/4 turn latches), 4
infinitely adjustable - combination rack mount rails
(Full EIA hole centers - 5/8 - 5/8 - 1/2 inch
spacing), one solid flush mount door, solid top and
4 leveling feet...
Heavy
duty: 14 gauge steel frame, 16 gauge side panels.
Rails
are made of 10 gauge zinc plated steel...
Recommended
maximum weight (C2F247836 tested) - 1,500 pounds...
Finished
in a rugged, textured powder paint finish.
|
23.63"
Deep models:
Usable Depth = 21.63"
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|

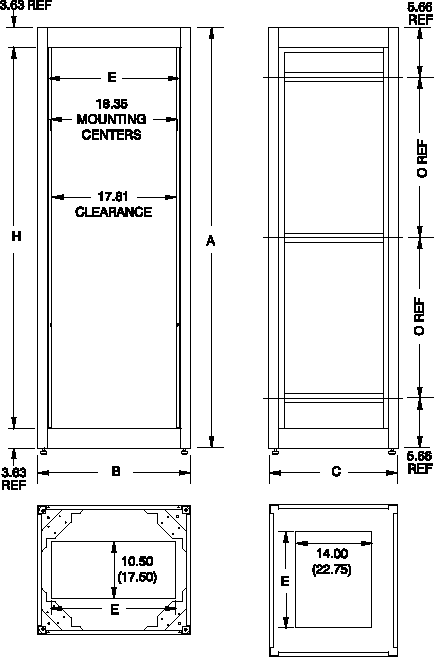

Overall
Dimensions
|
Wt.
lbs.
|
|
Inches
|
Units
|
A
|
B
|
C
|
H
|
|
EID-C2RR194223BK1
EID-C2RR194223CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
42
|
24
|
49.31
|
23
|
23.63
|
42.06
|
205
|
|
EID-C2RR196323BK1
EID-C2RR196323CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
63
|
36
|
70.31
|
23
|
23.63
|
63.06
|
260
|
|
EID-C2RR197023BK1
EID-C2RR197023CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
70
|
40
|
77.31
|
23
|
23.63
|
70.06
|
295
|
|
EID-C2RR197823BK1
EID-C2RR197823CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
78
|
45
|
86.06
|
23
|
23.63
|
78.81
|
330
|
31.5"
Deep models:
Usable Depth = 29.50"
|
Part
Number
|
1-99 |
Color
|
|
Panel
Height
|
Overall
Dimensions
|
Wt.
lbs.
|
|
Inches
|
Units
|
A
|
B
|
C
|
H
|
|
EID-C2RR194231BK1
EID-C2RR194231CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
42
|
24
|
49.31
|
23
|
31.5
|
42.06
|
218
|
|
EID-C2RR196331BK1
EID-C2RR196331CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
63
|
36
|
70.31
|
23
|
31.5
|
63.06
|
280
|
|
EID-C2RR197031BK1
EID-C2RR197031CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
70
|
40
|
77.31
|
23
|
31.5
|
70.06
|
315
|
|
EID-C2RR197831BK1
EID-C2RR197831CG1
|
|
Black
Gray/Beige
|
Textured
Textured
|
78
|
45
|
86.06
|
23
|
31.5
|
78.81
|
355
|
|
|
IN
STOCK! Ready
To Install RAPID
RACKS...

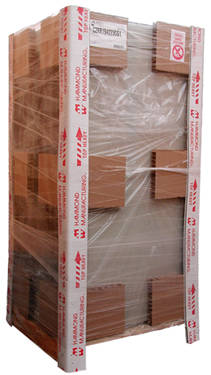

Shipped
assembled on it's own skid for handling ease &
protection!
|
Accessories:
Casters
|
|
-
No
drilling required...
-
Mounts
into existing holes in “EID-C2RR” type racks...
-
Swivel,
ball bearing units, hard composition type wheels...
-
Adds
only 0.75” to height of cabinet by fitting up
inside base of rack...
-
Sold
in sets of 4.
|
|
Part
Number
|
1-9 |
10-99 |
Mfg.
Specified
Capacity
(set of 4)
|
Wheel
Diameter
(Inches)
|
Height
Added To
Rack
(Inches)
|
|
EID-1425B
|
|
|
360
lbs.
|
3"
|
0.75"
|
|
EID-1425BM
|
|
|
700
lbs.
|
3"
|
0.75"
|
|
EID-1425BH
|
|
|
1050
lbs.
|
3"
|
0.75"
|
General Accessory
-
Extra
Panel Rails
-
Tops
solid, vented & Raised - note: existing solid top
must be removed
-
Fan
Tops 4" or 10" Fans - note: existing solid top
must be removed
-
Doors
solid, louvered & plexi
-
Aluminum
rack panels
-
Steel
rack panels
-
Formed
steel rack panels
-
Ventilated
& Access Panels Louvers, slots, baffles etc.
-
Doors
& Chassis - Panel Mount
-
Cable
Organizing
-
Shelves
- Panel Mount
-
Shelves
& Slides - Dual Vertical Rail Mount
-
Keyboard
Shelves & Drawers
-
Rack
mount power bars
-
Cooling
Accessories
-
Vertical
rack mount power bars
-
Blowers
-
Fan
Trays
-
Mounting
hardware
