12 Volts battery voltage simulator. This 12V voltage regulator Kit is an Electronics board that allows you to connect between 14 to 18V DC or AC (regulated or not) in one side of the board and get 12V DC regulated on the other side. Stop paying for batteries again and again...

The battery simulator "eliminator" helps you power any device that requires 12V battery. Replace your 12V Nickel-Mh, 12V Nickel-Cad, 12V Alkaline, and regular 12V battery with this unique kit and save...

The board can drive up to 12V DC @ 500mA.

No more need for 12V batteries

Kit Includes:

• LM7812                  Voltage Regulator   1pc.

• 0.1MF                    Capacitor              2pc.

• 100MF                   Capacitor              1pc.

• 47MF                     Capacitor              1pc.

• 1N4001                  Diode                    4pc.

• 9V battery clips       Connector              1pc.

• 4-40 * 1/4" screws                              2pc.

• 2.5mm Power Jack                               1pc.

• Enclosures screws                               2pc.

• Pre-drilled 4 pc. ABS plastic enclosure     1pc.

• PCB                                                  1pc.

Note: Enclosure (P#EID-1593KBK) sold separately plastic enclosure.

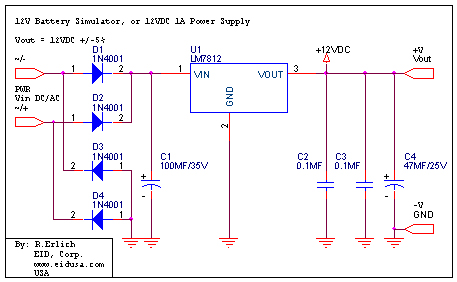

Schematic:

Enclosure pad printing with your logo and/or art works are available for our OEM customers.

Price


Battery simulator kit, Input up to 16V DC output  +12V /0.5A

EID-K-VRG-12V-BATS-ASM Fully assembled

EID-K-VRG-12V-BATS-ASM Kit

29.01

19.99

  ^•
