ISORELER-M2NX  Dual opto-ISOlated medium current Relays board



The ISORELER-M2NX board is designed to turn two relays on and off as a direct response to low voltage inputs. While the signal between the input and the relay are totally isolated utilizing opto-coupler ICs.



If used properly, it will eliminate the need for expensive units, which would otherwise be needed to carry out the same tasks.



ISORELER-M2NX is easy to install, setup and operate. If you want to do professional high voltage switching related functions, ISORELER-M2NX offers the features you need. Mounted easily via four 0.125" mounting holes.

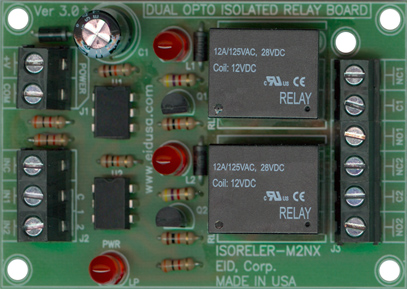

Shown above ISORELER-M2NX Model B with 12V coil "C type" relays



Note: When the dual isolated relay module is powered on, all relays (and LEDs) are "Off", individual signal will turn its corresponding relay "On", while the module power on indictor will remain lit as long the module is powered.

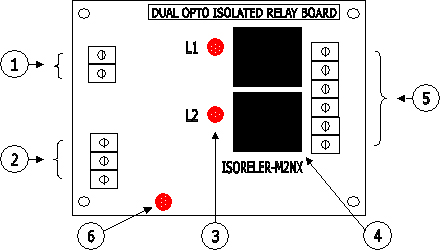

Figure A



1. Input Power: 5, 12 or 24V relay's coils model depended.

2. Input control signal with common ground.

3. Relay corresponding LED Power Indicator.

4. Medium size "C" relay.

5. Relays outputs.

6. LED power indicator.





Dual opto-isolated medium current relay boards configuration models:



Model #

Input Voltage

Relays coils

EID's OEM P#

ISORELER-M2NXA

0-5V DC (TTL)

5V

EID-ISO-RELER-M2NX-05VRT

ISORELER-M2NXA

0-10V DC (HVAC)

5V

EID-ISO-RELER-M2NX-05VRH

ISORELER-M2NXA

0-24V DC (INDUSTRIAL)

5V

EID-ISO-RELER-M2NX-05VRI

ISORELER-M2NXA

0-XV DC (CUSTOM)

5V

EID-ISO-RELER-M2NX-05VRCX








ISORELER-MNXB

0-5V DC (TTL)

12V

EID-ISO-RELER-M2NX-12VRT

ISORELER-M2NXB

0-10V DC (HVAC)

12V

EID-ISO-RELER-M2NX-12VRH

ISORELER-M2NXB

0-24V DC (INDUSTRIAL)

12V

EID-ISO-RELER-M2NX-12VRI

ISORELER-M2NXB

0-XV DC (CUSTOM)

12V

EID-ISO-RELER-M2NX-12VRCX








ISORELER-M2NXC

0-5V DC (TTL)

24V

EID-ISO-RELER-M2NX-24VRT

ISORELER-M2NXC

0-10V DC (HVAC)

24V

EID-ISO-RELER-M2NX-24VRH

ISORELER-M2NXC

0-24V DC (INDUSTRIAL)

24V

EID-ISO-RELER-M2NX-24VRI

ISORELER-M2NXC

0-XV DC (CUSTOM)

24V

EID-ISO-RELER-M2NX-24VRCX





ISORELER-M2NX Features



  • Built-in relay on LED indicator for each relay.

  • Power source is chained on the board mechanically.

  • Also, designed to operate from 12VDC or 24VDC car battery (models B and C).

Specifications

  • PCB material                            FR4

  • Relay switch min. rating            110V/10A other values are available

  • Max power consumption            2W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               5, 12 or 24 [VDC]

  • Power source                          12V battery or 12VDC (Model B)

  • Relay on  indicator                    LED Green or Red

  • Wires Connections                    Via terminal-block

  • Manufactured                          100% in U.S.A.

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.



Description

SKU #

Price

ISORELER-M2NX Dual opto isolated relay board. with 5V-coils relays, input via TTL signals.

EID-ISO-RELER-M2NX-05VRT

$111.96

ISORELER-M2NX Dual opto isolated relay board. with 5V-coils relays, input via TTL signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-05VRT

$111.96

ISORELER-M2NX Dual opto isolated relay board. with 5V-coils relays, input via HVAC signals.

EID-ISO-RELER-M2NX-05VRH

$111.96

ISORELER-M2NX Dual opto isolated relay board. with 15V-coils relays, input via HVAC signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-05VRH

$111.96

ISORELER-M2NX Dual opto isolated relay board. with 5V-coils relays, input via INDUSTRIAL signals.

EID-ISO-RELER-M2NX-05VRI

$111.96

ISORELER-M2NX Dual opto isolated relay board. with 5V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-05VRI

$111.96

ISORELER-M2NX Dual opto isolated relay board. with 12V-coils relays, input via TTL signals.

EID-ISO-RELER-M2NX-12VRT

$99.33

ISORELER-M2NX Dual opto isolated relay board. with 12V-coils relays, input via TTL signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-12VRT

$109.56

ISORELER-M2NX Dual opto isolated relay board. with 12V-coils relays, input via HVAC signals.

EID-ISO-RELER-M2NX-12VRH

$109.56

ISORELER-M2NX Dual opto isolated relay board. with 12V-coils relays, input via HVAC signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-12VRH

$109.56

ISORELER-M2NX Dual opto isolated relay board. with 12V-coils relays, input via INDUSTRIAL signals.

EID-ISO-RELER-M2NX-12VRI

$109.56

ISORELER-M2NX Dual opto isolated relay board. with 12V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-12VRI

$109.56

ISORELER-M2NX Dual opto isolated relay board. with 24V-coils relays, input via TTL signals.

EID-ISO-RELER-M2NX-24VRT

$156.68

ISORELER-M4 Dual opto isolated relay board. with 24V-coils relays, input via TTL signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-24VRT

$106.68

ISORELER-M2NX Dual opto isolated relay board. with 24V-coils relays, input via HVAC signals.

EID-ISO-RELER-M2NX-24VRH

$106.68

ISORELER-M2NX Dual opto isolated relay board. with 24V-coils relays, input via HVAC signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-24VRH

$106.68

ISORELER-M2NX Dual opto isolated relay board. with 24V-coils relays, input via INDUSTRIAL signals.

EID-ISO-RELER-M2NX-24VRI

$106.68

ISORELER-M2NX Dual opto isolated relay board. with 24V-coils relays, input via INDUSTRIAL signals. with 6" wires (6).

EID-ISO-RELER-M2NXW-24VRI

$106.68

  •
