pH electrodes

Our pH Electrode Are light-weight and durable, suitable for a wide range of applications. Mating is by a 2-stud bayonet lock (BNC "male" type connector). Our pH electrodes Are made to exacting standards. Every electrode is tested for response, speed, slope, E(0) isolation, drift and temperature response. You can rely on your EID pH electrode to deliver dependable measurements now and well into the future. Use it with your PROBER-PH8 Meter/Logger for the highest accuracy and maximum performance.

ELECTRODER - General Purpose pH Electrode (GPH)

pH combination electrode, epoxy body, fixed guard, PIN junction, 12mm * 120mm, 0-14 pH range

Although it is the most economical pH electrode on the market. the ELECTRODER-GPH provides reliable and accurate performance. Popular in routine pH determinations, it comes with unique designs. Featuring built in bulb guards. It offers high performance at attractive prices. It's shipped with a soaker bottle, which guarantees high performance out of the box without conditioning the electrode each time.

ELECTRODER - ReFillable Glass pH Electrode (FGP)

pH combination electrode, glass body, annular ceramic junction, 12mm * 120mm, 0-14 pH range

ELECTRODER - Glass pH Electrode (GLP)

pH combination electrode, glass body, annular ceramic junction 12mm * 120mm, 0-14 pH range

ELECTRODER - Glass Spear-Tip pH Electrode (STP)

pH combination electrode, glass body, annular ceramic junction 12mm * 120mm, 0-14 pH range

ELECTRODER - Glass Refillable Spear-Tip Semi-Micro pH Electrode (SMP)

pH comb. electrode, glass body, annular ceramic junction 12mm* 8mm * 65mm "I" * 150mm, 0-14 pH range

ELECTRODER - General Purpose Micro pH Electrode (GMP)

pH combination electrode, epoxy body, annular ceramic junction 6mm * 230mm, 0-14 pH range

ELECTRODER - Flat Head pH Electrode (FPH)

pH combination electrode, epoxy body, flat surface, PIN junction 12mm * 120mm, 0-13 pH range

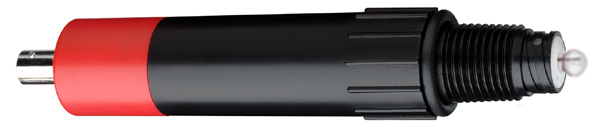

ELECTRODER - Screw-On pH Electrode (SPH)

pH combination electrode, in-line with 1/2" NPT, ABS body, teflon junction 12mm * 120mm, 0-14 pH range

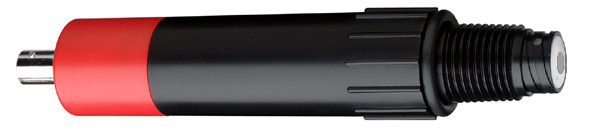

ELECTRODER - Flat Head Screw-On pH Electrode (FSP)

pH combination electrode, in-line with 1/2" NPT, ABS body, teflon junction 12mm * 120mm, 0-14 pH range

EID's low cost electrodes fitting:

Simply slide, twist and look any 10mm to 14mm electrode (probe) into a pipe, tanks or tee fitting utilizing the ELECTRODER-FT5 Compression Fitting Gland.

For an additional gland fittings diameters see also our Liquid-Tight Strain Relief Grips.

The ELECTRODER-FT5 strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the electrode, providing a liquid-tight electrode-grip. The ELECTRODER-FT5 accepts a wide range of electrodes diameters due to large opening and highly flexible strain relief elements, together with a TPE sealing ring.

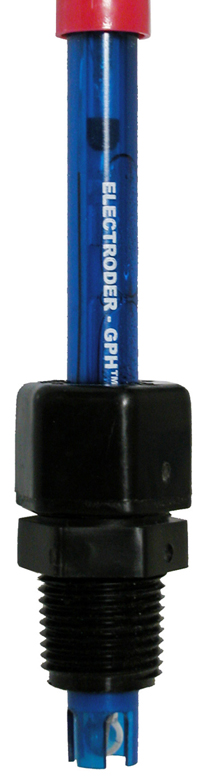

ELECTRODER - GPH 12mm diameter pH electrode mounted in ELECTRODER-FT5 electrode fitting

* Our pH electrodes are furnished standard with a 3-foot low noise coaxial (RG-174) cable and BNC connector. Cable extension lengths up to 12 feet are available. When longer distance requires, or when using the electrode in a industrial environment, use our pH unity gain amplifier AMPER-PH1

* EID Corp. offers many types and styles of OEM pH electrodes both with single and double junction. We will customize them for you. Let us know the style you are looking for and we will produce to your specifications. Contact EID Sales team for more details. Join the thousands who use them every day worldwide.

Many of you asked us -- what are the purchase volume requirements for custom labeling?

Custom labeling requires minimum purchasing quantities of 50 units

Instruction manual and electrode care.

* pH electrode Manual

ELECTRICAL SPECIFICATIONS

MATERIALS

Description and SKU#

Price


ELECTRODER-GPH

EID-E-GPH-A001 for Single junction

EID-E-GPH-A002 for Double junction

Until July 1, 2006 Student Price for

the Single junction electrode is only

$45.99

49.70

74.75

ELECTRODER-GPH COMBO

with thermistor

EID-E-GPH-A001-T10K with 10K thermistor

EID-E-GPH-A001-T20K with 20K thermistor

call

For picture of the ELECTRODER-GPH COMBO tip--

See application not #36

ELECTRODER-FGP

EID-E-FGP-A001

call

ELECTRODER-GLP

EID-E-GLP-A001

call

ELECTRODER-STP

EID-E-STP-A001

call

ELECTRODER-SMP

EID-E-SMP-A001

call

ELECTRODER-GMP

EID-E-GMP-A001

call

ELECTRODER-FPH

EID-E-FPH-A001

call

ELECTRODER-SPH

EID-E-SPH-A001

call

ELECTRODER-FSP Flat surface, Double Junction with KCl electrolyte.

EID-E-FSP-AKCl

call

ELECTRODER-FSP Flat surface, Double Junction with LiCl electrolyte.

EID-E-FSP-LICl

call

ELECTRODER-GPH Kit comes with one electrode with Protection soaker bottle, BNC-F-F-Adaptor & 12 ft. extension cable.

EID-K-GPH-K005

call

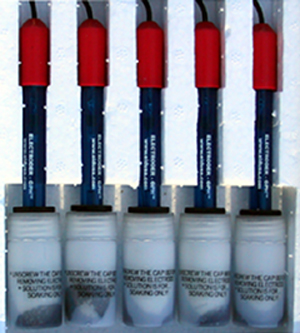

ELECTRODER-GPH 5 Set, comes with 5 general pH electrodes with protection soaker bottles.

EID-K-GPH-A05

Until July 1, 2006 Student Price is only $234.00

249.50

pH Electrode Stand Kit, 6 Pieces *

Rotates 360 Deg. Both, Vertical & Horizontal

EID-S-GPH-BO06

Until July 1, 2006 Student Price is only

$15.95

* Electrode sold separately

call

pH Refill electrolyte solution.

EID-F-GPH-BO01 Single Junction Electrodes

KCl/AgCl pH Fill Solution

EID-F-GPH-BO02 Double Junction Electrodes

KNO3 pH Fill Solution

call

ELECTRODER-SPH Protective Cap

EID-E-SPH-A0PC

call

ELECTRODER-FT5 Compression fitting

EID-E-COM-PRE-SSION-FT5

call

ELECTRODER-SPH Removable Guard

EID-E-SPH-A0RG

call

Protection soaker bottle with solution

(4M kCI, pH4 OR pH7)

EID-B-GPH-BO01

call

BNC (RG-58) Cable extension cord

EID-C-BNC-58BB-3 for 3 ft.

EID-C-BNC-58BB-6 for 6 ft.

EID-C-BNC-58BB-12 for 12 ft.

call

Double Female Adapter

EID-A-BNC-305 (UG-914/U)

call

^•
