Rack Accessories - Ventilated Panels

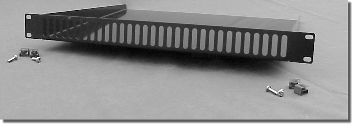

Baffle Panel

  • Standard 19" rack mount

  • Rear sloping baffle for directing air flow

  • Steel construction

  • Shown here upside down, to show construction

  • Extends apx. 14" behind panel rails

  • Rugged, heat absorbing black powder paint finish

  • Requires mounting hardware



Part Number

1-99

Color

Paint
Texture

Panel Height

Inches

Units

EID-PVBB19001BK2



Black

Smooth

1.75

1

 PVLL

Louvered Panel

  • Standard 19" rack mount

  • Formed 16 gauge steel construction

  • Includes a 0.50" fold, top and bottom for added strength

  • Designed with 3 columns of 4 inch wide louvers

  • Louvers face out

  • Powder paint finish - smooth finish to match our standard panels

  • Requires mounting hardware

Part Number

1-99

Color

Paint
Texture

Panel Height

Inches

Units

EID-PVLL19005BK2
EID-PVLL19005CG2



Black
Gray/Beige

Smooth
Smooth

5.25

3

EID-PVLL19007BK2
EID-PVLL19007CG2



Black
Gray/Beige

Smooth
Smooth

7.00

4

EID-PVLL19008BK2
EID-PVLL19008CG2



Black
Gray/Beige

Smooth
Smooth

8.75

5

EID-PVLL19010BK2
EID-PVLL19010CG2



Black
Gray/Beige

Smooth
Smooth

10.50

6

EID-PVLL19012BK2
EID-PVLL19012CG2



Black
Gray/Beige

Smooth
Smooth

12.25

7

 PVSS

Slotted Steel Panel

  • Standard 19" rack mount

  • 14 gauge steel construction

  • Slots are 0.25" x 1.0"

  • Powder paint finish - smooth finish to match our standard panels

  • Requires mounting hardware



Part Number

1-99

Color

Paint
Texture

Rows of Slots

Panel Height

Open Space
(Cubic In.)

Inches

Units

EID-PVSS19001BK2
EID-PVSS19001CG2



Black
Gray/Beige

Smooth
Smooth

1

1.75

1

9.7

EID-PVSS19003BK2
EID-PVSS19003CG2



Black
Gray/Beige

Smooth
Smooth

2

3.50

2

19.4

 PVSA

Slotted Aluminum Panel

  • Standard 19" rack mount

  • 0.13" thick aluminum construction

  • Slots are 0.25" x 1.0"

  • Powder paint finish - smooth finish to match our standard panels

  • Requires mounting hardware

Part Number

1-99

Color

Paint
Texture

Rows of Slots

Panel Height

Open Space
(Cubic In.)

Inches

Units

EID-PVSA19001BK2
EID-PVSA19001CG2



Black
Gray/Beige

Smooth
Smooth

1

1.75

1

9.7

EID-PVSA19003BK2
EID-PVSA19003CG2



Black
Gray/Beige

Smooth
Smooth

2

3.50

2

19.4

Cooling Accessories For more cooling accessories - link here to our rack cooling section

Notes:

  • All Dimensions in inches

  •
