EID’s
OEM industrial standard electronics board modules provide
ability to convert or isolate any conventional analog input to
output. Various input interface boards accept analog voltage or
current signals from all types of field sensors and sources. The
interface board then filter, isolate, amplify, “linearize,” scale
and convert these input signals to analog outputs suitable for
use in data acquisition DA, DDC, PLC, test and measurement, control
systems and Industry standard output
of either 2-10V, 0 to 10V, 1-5V, 0 to 5V, 0
to 20mA or 4 to 20,mA
(0)/4-20mA, 1KHz, 10KHz...PWM...Industrial and Commercial OEM
Power Multi Channel Solid State Relay...
Our signal
conditioning product line offers a broad assortment of products
to amplify, filter, condition, and convert measured signals
from sensors and other instruments. These signal conditioners
interface the enhanced signal to your HVAC (Heating,
Ventilation and Air Conditioning), Electro-hydraulic, Servo
Electronics; Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves dampers, DDC, PLC,
Logger , recorder, display, pump or other process control
instrumentation.
The
interface boards designed for industrial plant environment thus
reduce electrical noises for measurement signals and power from 24V (other available). All board connections are usually made
via screw terminal blocks (direct wires connection are also
available). Chose from our verity of plastic, aluminum and metal
enclosures
to encapsulate your board. Chose from our verity of cord/wire-glen
and DIN
rail mount kit
to mount your product.
EID's
Interface board benefits:
-
DIN
Rail Mount
Industry's best price/performance
Signal
Conditioners, Transmitters and Transducers
solution for complex process applications demands.
-
All
boards designed to fit the flagship plastic, aluminum and
steel enclosures
by Hammond Mfg. (In stock, and distributed by us as
well.)
-
All
PCB materials are designed and made in the USA and carries a UL
approval.
-
All
PCBs have Solder-Mask. No soldering mistakes to adjacent pins.
-
Terminal
blocs (utilizing the highest quality by
Molex
Inc.) for easy wire connections. All boards also available
with custom wires to fit your applications.
-
We
are proudly using Trimpot® single and multi-turn
trimmers by
Bourns
Inc.
These ensure easy calibration with high accuracy.
-
Full
information directly on our web-site in html format not
pdf.
-
Many
interface boards enclosures to choose from.
-
A
variety of interface boards to choose from.
-
High
quality, high grade components.
-
Since
we are an OEM manufacturing company, as well as R&D facility, we
can print your logo on the enclosures and PCBs. We customize the
interface boards to fit your requirements and needs. You can become one
of our interface-boards/kits-dealers, just drop us a line at:
sales@eidusa.com
or call us directly at (704) 366-HELP (4357)
-
OEM & ODM, Custom HVAC
Transducers
-
PROUDLY
DESIGNED, FABRICATED and MADE IN THE USA.
|
High
impedance voltage to voltage converter amplifier with
unity gain. Ideal for pH, ORP, ISE interface. Simply
connect them between your electrode and your voltmeter, oscilloscope
and or analog to digital converter interface (ADC).
|
|
|
|
|
High
impedance pH checker tester, transducer
board. Ideal for
pH
logger or meter reading accuracy evaluation. The OEM
CHECKER-PH3 simulator board helps determine if the
reading problem are related to the pH electrode, pH
buffer or to the ph transducer/transmitter. It simulates
pH in a mV value of standard calibration buffers 4, 7 or
10 pH units in 0.01 pH accuracy. The simulator operates
on a stand 9 volt battery and has a optional BNC
connector attached to the output signal.
|
|
The CHECKER-PH3 Calibration checker board simulates
values for pH 4.00, pH 7.00 & pH 10.00, professionally
with high accuracy. Where, the CHECKER-PH3E simulates
values for pH 5.00, pH 7.00& pH 9.00
|
|
High
impedance voltage to 4 to 20 mA converter transducer
board. Ideal for pH, ORP, ISE interface to remote
applications via 4 to 20 mA. Simply
connect them between your electrode and your PLC, and or analog to digital converter interface (ADC).
|
|
The
industrial pH, ORP or ISE to 4-20mA transmitter board is
also available in a 1-5V and 2-10V output
configuration.
|
|
Aqua display with high
impedance inputs. The
industrial sequential computerized Temperature, pH, ORP
aqua display and transmitter board. Ideal for
displaying temperature pH, ORP and transmits the
information wireless or with wires to remote
applications such as PLC, Personal computer,
data-loggers or water controllers.
|
|
The
industrial sequential computerized Temperature, pH, ORP
aqua display and transmitter board
|
|
pH,
ORP, ISE Interface-Boards Transducers (OEM). Ideal
for industrial and field pH ORP and ISE measurements. Simply connect
your
electrodes, and the transducer's outputs to your PLC or
measurement's device. Power the board
and start reading. Where; Model A power of 12V or 24V Dc
or AC and Model B power of custom voltage supply by the
user. i.e.
3.0V, 3.3V, 5.0V, 6.0V, 8.0V or 9.0V DC.
|
|
Model A Model B
The pH, ORP or ISE transducer board is designed to perform pH, ORP or
Ion Selective Electrode (ISE)
unity-gain signal amplification and resistance matching.
This unique transducer is
ideal
for multi-channels (pH, ORP or ISE) readings via PLC,
Analog to Digital Converter (ADC) devices etc.
|

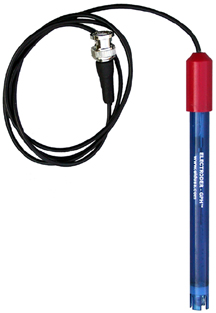

ELECTRODER-GPH
(Epoxy body) Side views
Our
pH,
ORP and ISE
(electrodes, sensors, cups and probes) are
light-weight and durable, suitable for a wide range of
applications. We will customize them for you. Let us
know the style you are looking for, and we will produce
to your specifications. Most TC's available.
|
|

Model A
Model B
The pH, ORP or ISE transducer board is designed to perform pH, ORP or
Ion Selective Electrode (ISE)
unity-gain signal amplification and resistance matching
with additional temperature reading functions, for pH
Temperature Compensation (TC).
|
|
Model A
Model B
Model C
The dual channel; pH, ORP or ISE transducer board is designed to perform 2 Channels pH, ORP and
Ion Selective Electrode (ISE)
unity-gain signal amplification and resistance matching with additional temperature
reading functions,
for pH reading Temperature Compensation (TC).
|
|
Model 3ATB
Module Front Panel
The dual channel; pH, mV, ORP, ISE and temperature
transducer board with triple outputs
or
or

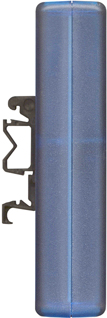

Many Din-Rail Enclosures
are available for this module!
Din-Rail Enclosures
Translucent-Blue or Black standard color (other color
are available)
|
|
Model 3A10X0
Module Front Panel
The dual channel; pH, mV, ORP, ISE and temperature
transducer board with triple 0...10V outputs
or
Din-Rail Enclosures
Translucent-Blue or Black standard color (other color
are available)
|
|
Model 3A10X0TB
Module Front Panel
The dual channel; pH, mV, ORP, ISE and temperature transducer board with
triple 0...10V outputs
or
Din-Rail Enclosures
Translucent-Blue or Black standard color (other color
are available)
|
|
pH

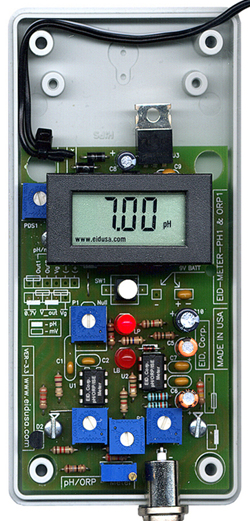

meter interface converter board (OEM). Ideal
for industrial and field pH measurements. Simply connect
electrode. Adjust temperature (0-80C), reference voltage
(at pH 7.00) and slope (pH 4.00 and 10.01) and
read the ph from the front mounted LCD display.
|
|
|
ELECTRODER-GPH
(Epoxy body) Side views
Our
pH,
ORP and ISE
(electrodes, sensors, cups and probes) are
light-weight and durable, suitable for a wide range of
applications. We will customize them for you. Let us
know the style you are looking for, and we will produce
to your specifications. Most TC's available.
|
|
Conductivity
interface converter board. Ideal for conductivity cell
K=1 with 10K-Ohms thermistor interface. Simply connect
them between your electrode cell and your voltmeter, oscilloscope
and or analog to digital converter interface (ADC). Many
models to choose from. Power via external power or 9V
battery.
|
|
|
OEM
|
|
|
|
|

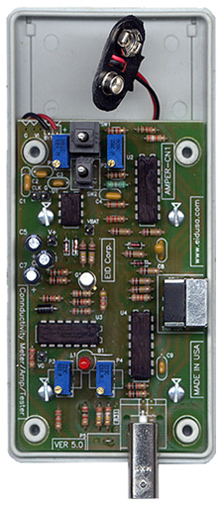

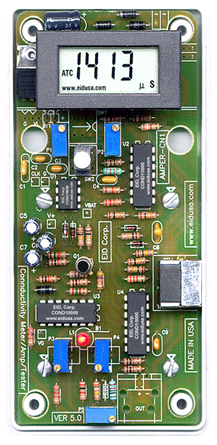

Conductivity
meter interface converter board (OEM)
Ideal for industrial conductivity measurements. Simply
connect cell K=1 with 10K Ohms thermistor (via mini din
6 connector). Adjust Zero and Calibration trimmers and
read the amount of uS/cm from the front mounted LCD
display.
|
|
|

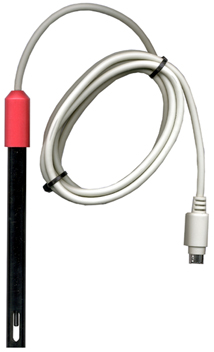

ELECTRODER-AC2
(ABS body) Side views
Our
conductivity
cells (cup & electrodes) Are
light-weight and durable, suitable for a wide range of
applications. We will customize them for you. Let us
know the style you are looking for, and we will produce
to your specifications. K=0.1, 1 or 10, most TC's available.
|
|
Frequency
generator tester checker board is designed to generate the following frequencies:
1Hz, 10Hz, 100Hz, or
10Hz, 100Hz, 1KHz. However, give us a call if you'd like your
interface board to be modified for other frequencies.
|
|
CHECKER-FQ3X: 1, 10 and
100Hz or 10, 100 and 1000Hz frequency
checker, tester,
simulator
|
|
Wave
generator
board is designed to generate the following frequencies:
50Hz, 60Hz, 100Hz, or
120Hz Model depended output wave form are Sine wave,
Square wave, Triangular wave or Saw-tooth wave. However, give us a call if you'd like your
interface board to be modified for other frequencies.
|
|

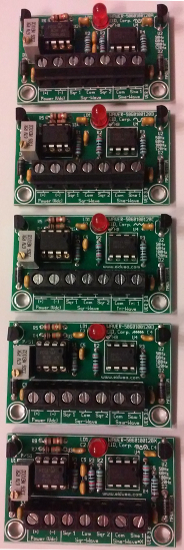

Shone above where;
WAVER-5060100120 Model A at the top down to model X at
the Bottom picture
WAVER-5060100120A/B/C/D/X:
50Hz or 60Hz or 100Hz or 120Hz frequency
wave generator board module:
Model A Sine wave with LPF
and amplitude of 5V, Model B 5V Sine wave and amplitude
of 5V, Model C 5V Triangular wave and amplitude of 5V,
Model D 5V Saw-tooth wave and amplitude of 5V& Model X
Sine wave with output pre-set amplification (preset
amplitude 0 to 10V)
|
|
Industrial isolated voltage to frequency
converter (VFC) board. Voltage signal (0-10V) to
isolated Frequency signal
(0-10KHz)
converter interface board with both Offset and
Gain
adjustments.
The
TRANSDUCER–VFC-OG
Module delivers isolated pulse rate (frequency) 0-10KHz
output proportional to analog 0 to +10 VDC input signals.
|
|
or
DIN Rail Mount Analog Voltage Signal Input to Isolated Frequency
Conditioners with Offset & Gain Adj.
Convert 0-10V
Single to 2KHZ, 5KHz or 10KHz frequencies
|
|
Industrial isolated current to frequency
converter (CFC) board. Current signal (4-20mA) to
isolated Frequency signal
(1-5KHz)
converter interface board with both Offset and
Gain
adjustments.
The
TRANSDUCER–CFC-OG
Module delivers isolated pulse rate (frequency) 1-5KHz
output proportional to analog 4-20mA input signals.
|
|
or
DIN Rail Mount Analog Current Signal Input to Isolated Frequency
Conditioners with Offset & Gain Adj.
Convert 4mA-20mA
Single to 1KHz-5KHz or 2KHz-10KHz frequencies
|
|

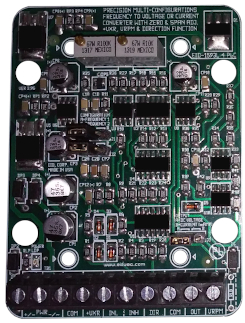

Frequency
to voltage converter board (tachometer) Ideal for converting motor
RPM to voltage. For building flow meter (liquid and
air.) Simply connect it between your frequency
generator, pulse source i.e. hall effect, light pulse -- and your voltmeter, oscilloscope and/or analog to
digital converter interface (ADC).
|
|
|
With terminal blocks
|
|
Industrial Frequency
to voltage converter (FVC) board. Frequency signal
(0-1KHz or 0-10KHz) to Voltage (0 to 10V or 0 to -10V)
converter interface board with both Zero and Span
adjustments.
The
TRANSDUCER–FVC-DZS
Module delivers analog 0 to +10 VDC or 0 to -10 VDC
outputs proportional to input pulse rate (frequency).
Where it accepts variable pulse rate inputs from a
variety of sensors including magnetic pick-ups, with
maximum linearity. It the ideal board for supplying
velocity feedback in closed loop speed control systems.
Ideal for converting motor
RPM
(Revolution Per Minute) via magnetic pickup to voltage. Simply connect it between your frequency
generator, pulse source i.e. magnetic pick-up, hall effect, light pulse -- and your voltmeter, oscilloscope and/or analog to
digital converter interface (ADC)... PLC or micro-controller.
For maximum linearity, precise calibration with simple SPAN and ZERO
adjustments .
|
|
or
F/V Model A.
DIN Rail Mount Differential/SE-Input Frequency to Analog Voltage Signal
Conditioners with Zero & Span Adj.
Convert Differential or
Single-Ended (SE) Input frequencies:
0
to 1KHz,
0 to 10KHz to Voltage 0 to 10V or 0 to -10V
0
to 1KHz,
0 to 10KHz to Voltage 0 to 5V or 0 to -5V
0
to 1.2KHz,
0 to 12KHz to Voltage 0 to 6V or 0 to -6V
0
to 1.2KHz,
0 to 12KHz to Voltage 0 to 12V or 0 to -12V
0
to 1.3KHz,
0 to 13KHz to Voltage 0 to 6.5V or 0 to -6.5V
0
to 1.3KHz,
0 to 13KHz to Voltage 0 to 13V or 0 to -13V
|
|
Industrial Frequency
to voltage converter (FVC) board with Auxiliary output. Frequency signal
(0-1KHz or 0-10KHz) to Voltage (0 to 10V or 0 to -10V)
converter interface board with both Zero and Span
adjustments.
The
TRANSDUCER–FVC-DZS
Module delivers analog 0 to +10 VDC or 0 to -10 VDC
outputs proportional to input pulse rate (frequency).
Where it accepts variable pulse rate inputs from a
variety of sensors including magnetic pick-ups, with
maximum linearity. It the ideal board for supplying
velocity feedback in closed loop speed control systems.
Ideal for converting motor
RPM
(Revolution Per Minute) via magnetic pickup to voltage. Simply connect it between your frequency
generator, pulse source i.e. magnetic pick-up, hall effect, light pulse -- and your voltmeter, oscilloscope and/or analog to
digital converter interface (ADC)... PLC or micro-controller.
For maximum linearity, precise calibration with simple SPAN and ZERO
adjustments .
|
|
F/V Model B.
DIN Rail Mount Differential/SE-Input Frequency to Analog Voltage Signal
Conditioners with Zero & Span Adj.
Convert Differential or
Single-Ended (SE) Input frequencies:
0 to 1KHz to Voltage 0 to 10V or 0 to -10V
0 to 10KHz to Voltage 0 to 10V or 0 to -10V
0 to 1KHz to Voltage 0 to
5V or 0 to -5V
0
to 10KHz to Voltage 0 to 5V or 0 to -5V
|
|
Industrial Frequency
to voltage converter (FVC) board with Bi-Directional
output voltage function. Frequency signal
(0-1KHz or 0-10KHz) to Voltage (0 +/-10V or 0 to +/- 5V)
converter interface board with both Zero and Span
adjustments.
The
TRANSDUCER–FVC-DDZS
Module delivers analog 0 +/-10 VDC or 0 to +/- 5 VDC
outputs proportional to input pulse rate (frequency) and
input direction switch mode.
Where it accepts variable pulse rate inputs from a
variety of sensors including magnetic pick-ups, with
maximum linearity. It the ideal board for supplying
velocity feedback in bi-directional closed loop speed control systems.
Ideal for converting motor
RPM
(Revolution Per Minute) via magnetic pickup to voltage. Simply connect it between your frequency
generator, pulse source i.e. magnetic pick-up, hall effect, light pulse -- and your voltmeter, oscilloscope and/or analog to
digital converter interface (ADC)... PLC or micro-controller.
For maximum linearity, precise calibration with simple SPAN and ZERO
adjustments .
|
|
or
F/V with Direction
function Model D.
DIN Rail Mount Differential/SE-Input Frequency to Analog Voltage Signal
Conditioners with Direction, Zero & Span Adjustments.
Convert Differential or
Single-Ended Input frequencies: 0
to 1KHz or
0 to 10KHz to Voltage +/-10V or +/-5V, where output
voltage direction controlled by input direction switch.
|
|
Industrial Frequency
to current (or voltage) converter (FCC) board with
Auxiliary output. Frequency signal
(0-1KHz or 0-10KHz) to Current (4-20mA) or Voltage (1 to
5V or 2 to 10V)
converter interface board with both Zero and Span
adjustments.
The
TRANSDUCER–FCC-24DZS
Module delivers 4-20mA current or analog 2 to +10 VDC or
1 to 5 VDC
outputs proportional to input pulse rate (frequency).
Where it accepts variable pulse rate inputs from a
variety of sensors including magnetic pick-ups, with
maximum linearity. It the ideal board for supplying
velocity feedback in closed loop speed control systems.
Ideal for converting motor
RPM
(Revolution Per Minute) via magnetic pickup to current
4-20mA or voltage 2-10V. Simply connect it between your frequency
generator, pulse source i.e. magnetic pick-up, hall effect, light pulse -- and your
current-meter or voltmeter, oscilloscope and/or analog to
digital converter interface (ADC)... PLC or micro-controller.
For maximum linearity, precise calibration with simple SPAN and ZERO
adjustments .
|
|
F/C with Zero and Span
function Model C.
Converting frequency signals (Hz) into current Amps
(4-20mA)
DIN Rail Mount Differential/SE-Input Frequency to Current 4-20mA or Analog Voltage
1-5VDC 0r 2-10VDC Signal
Conditioners with, Zero & Span Adjustments.
Convert Differential or
Single-Ended Input frequencies: 0
to 1KHz or
0 to 10KHz to current 4-20mA
|
|
Industrial Frequency
to voltage/current converter (FVV/C) board with Bi-Directional
output voltage function. Frequency signal
(0-1KHz or 0-10KHz) to Voltage (0 +/-10V or 0 to +/- 5V)
converter interface board with both Zero and Span
adjustments.
The
TRANSDUCER–FVC-DDZS
Module delivers analog 0 +/-10 VDC or 0 to +/- 5 VDC or
0-20mA
outputs proportional to input pulse rate (frequency) and
input direction switch mode.
Where it accepts variable pulse rate inputs from a
variety of sensors including magnetic pick-ups, with
maximum linearity. It the ideal board for supplying
velocity feedback in bi-directional closed loop speed control systems.
Ideal for converting motor
RPM
(Revolution Per Minute) via magnetic pickup to voltage. Simply connect it between your frequency
generator, pulse source i.e. magnetic pick-up, hall effect, light pulse -- and your voltmeter, oscilloscope and/or analog to
digital converter interface (ADC)... PLC or micro-controller.
For maximum linearity, precise calibration with simple SPAN and ZERO
adjustments .
|
|
Precision Multi-Configuration
Frequency to voltage or Current Converter (FVCC) with Zero &
Span Adj. +VXR, VRPM (Volts-RPM) & Direction Functions
F/V with Direction
function Model E-SMT.
Convert 3-Phase BLDC motor frequency
output to scaled RPM (represented in voltage or current)
DIN Rail Mount Differential/SE-Input Frequency to Analog Voltage Signal
Conditioners with Direction, Zero & Span Adjustments.
Convert Differential or
Single-Ended Input frequencies: 0
to 1KHz or
0 to 10KHz to Voltage +/-10V or +/-5V or 0-20mA where output
voltage direction controlled by input direction switch.
|
|
Frequency / Pulse
Divider Transducer board with dual output signals, Open
collector and scaled.
The
Frequency / Pulse Divider (FDX) transducer board
accepts pulse signals from devices such as flow sensors,
electric KWh meters etc., rescales and divides these pulses, and provides a level
pulse output. This allows the receiving devices such “pulse-accumulator,”
PLC or Flow Rate display to monitor higher frequencies than they are able accept directly.
While
enhancing the input pulses,
the Frequency/Pulse Divider (FDX) transducer board (module) utilized as
“Binary” Encoder Divider Module (BEDM) model A1 and AX or "Decimal"
Encoder Divider Module (DEDM) model BX to reduce the number of pulses
per encoder revolution. In addition
to
cover a wide application range,
the board output signal can be set for four signal levels; 3V for ARM-Processors, 5V TTL System and 10V PLC
input or 15V CMOS based equipments.
Where the board other output is an open collector that can be use
with system derived by opto-isolated inputs.
|
|
Encoder Pulse Rate divider
transducer board Model A1 (left), Model AX (center) and Model BX (right)
or
Encoder Pulse Rate divider
transducer board Model LX
Encoder Pulse Rate divider
transducer board Model CX
Model A1 or AX select
divider factor 2, 4, 8 ... 256, Model BX divider
factor 1, 2 , 3, 4, 5, 9 or 10 and Model CX divider factor
1, 2 , 3, 4, 5, 6, 7, 8, 9 or 10
All Model output pulse
signal level magnitude select 3VDC, 5VDC, 10VDC or +VX
(default 15VDC)
|
|
Industrial Din-Rail
Potentiometer Module. Ideal for adjusting/set point
signal externally. Single Turn, through-hole Mounted for
durability, rotary linear potentiometer. Set
individually resistance value.
|
|
Industrial Din Rail front mounted set point
potentiometer board with Din-rail-clip
|
|
Industrial Din-Rail
Push Button Switches Modules. Ideal for adjusting/set point
signal externally. Single Turn, through-hole Mounted for
durability, UP/DOWN linear 0-10V potentiometer (POT).
|
|
3 PUSH BUTTON SWITCHES
(Increase/Decrease/Reset or Down/Up/Reset)
RESET/INCREASE/DECREASE
DOWN/UP/RESET
BACK-SIDE Terminal-Block wires connections
Industrial Din Rail front mounted
UP (INCREASE) DOWN (DECREASE) & RESET Push button boards with
Terminal Blok or direct wires connections & Din-rail-clip
Optional configurations
|
|
Industrial External
Pull Up or Pull Down Resistor Module. Ideal for
puling up or down analog signal voltage on the
controller, PLC or micro-controller inputs.
Simply connect the board
between a signal conductor and a positive power supply
voltage (pull-up resistor) or power supply ground
(pull-down resistor) to ensure that the signal will be a
valid logic level if external devices are disconnected
or high/low-impedance is introduced. |
|
or
Pull-up or pull-down
resistor board
|
|
Voltage to Voltage
Divider with L.P.F. Attenuator scaling board. Ideal for converting
sensor voltage range to another lower range to fit your
controller, PLC or micro-controller needs. Simply connect it between your
sensor-- and your controller, PLC and it will linearly
scale it. I.e. convert 0-10V to 0-5V or 0-3.3V or
0-3V...
|
|
or
Voltage (X to A) to DC voltage (X to Y)
Divider Attenuator (Scale) board
|
|
Dual Voltage to Voltage
Divider with L.P.F. and Fine Adjustment Attenuator scaling board. Ideal for converting
two different sensors voltage range to another lower range to fit your
controller, PLC or micro-controller needs. Simply connect it between your
sensor-- and your controller, PLC and it will linearly
scale it. I.e. convert both 0-24V to 0-10V and 0-15V or
0-10V at the smae time...
|
|
or
Dual Voltages (X1 to A1
and X2 to A2) to DC voltage (X1 to Y1 and X2 to Y2)
Divider Attenuator (Scale) board
|
|
Voltage Simulator with
fine adjustment module. Ideal for simulating and
controlling voltage range with fine adjustment. The
voltage simulator is available in many configurations to
choose from and wide variety of controlled outputs: 0-10V,
2V-10V ,0-5V, 1V-5V, 0-3V, 0-3.3V...
|
|
or
24V AC/DC Industrial
standard powered voltage simulator with fine
adjustment via multi-trimmer or external potentiometer
controlled module (many outputs are available: 0-10V,
2V-10V ,0-5V, 1V-5V, 0-3V, 0-3.3V...)
|
|
Voltage Simulator with
fine adjustment and buffered output interface board. Ideal for
simulating and controlling buffered voltage range with
fine adjustment. The buffered voltage simulator is
available in many configurations to choose from and
wide variety of controlled outputs: 0-10V, 2V-10V ,0-5V,
1V-5V, 0-3V, 0-3.3V...
|
|
or
28V, 24V AC/DC Industrial
standard powered buffered voltage simulator with
fine adjustment via multi-trimmer controlled module
(many outputs are available: 0-10V, 2V-10V ,0-5V, 1V-5V,
0-3V, 0-3.3V...
|
|
8 Channel
Voltage to Voltage
Divider with L.P.F. Attenuator scaling board With Common
Return line. Ideal for converting
sensor voltage range to another lower range to fit your
controller, PLC or micro-controller needs. Simply connect it between your
sensor-- and your controller, PLC or Analog to digital
Converter (ADC) and it will linearly
scale it. I.e. convert 0-10V to 0-5V or 0-3.3V or
0-3V... Simple connection via D-SUB-9 connectors.
Available in both, 1/4W and 1/2W resistors!
|
|

8 Channel Voltage (X to A) to DC voltage (X to Y)
Divider Attenuator (Scale) board with Common
return lines
|
|
8 Channel
Voltage to Voltage
Divider with L.P.F. Attenuator scaling board With
Individual Return lines. Ideal for converting
sensor voltage range to another lower range to fit your
controller, PLC or micro-controller needs. Simply connect it between your
sensor-- and your controller, PLC or Analog to digital
Converter (ADC) and it will linearly
scale it. I.e. convert 0-10V to 0-5V or 0-3.3V or
0-3V... Simple connection via D-SUB-25 connectors.
Available in both, 1/4W and 1/2W resistors!
|
|

8 Channel Voltage (X to A) to DC voltage (X to Y)
Divider Attenuator (Scale) board with individual
return lines
|
|
8 Channel
Voltage to Voltage
Divider with L.P.F. Attenuator scaling board With
Individual Return lines. Ideal for converting
sensor voltage range to another lower range to fit your
controller, PLC or micro-controller needs. Simply connect it between your
sensor-- and your controller, PLC or Analog to digital
Converter (ADC) and it will linearly
scale it. I.e. convert 0-10V to 0-5V or 0-3.3V or
0-3V... Simple connection via D-SUB-25 connectors.
Available in both, 1/4W and 1/2W resistors! and direct
Mounting via on board DIN-RAIL-CLIPS option.
|
|

8 Channel Voltage (X to A) to DC voltage (X to Y)
Divider Attenuator (Scale) board with individual
return lines
|
|
Voltage/Current
to voltage converter scaling board. Ideal for converting
sensor voltage range to another range to fit your
controller, PLC or micro-controller needs. Simply connect it between your
sensor-- and your controller, PLC and it will linearly
scale it.
Precise calibration with simple SPAN and ZERO
adjustments.
Also, designed to operate from 24AC. All SCALER board
model have auxiliary +15V
output (for sensor drive). Output auxiliary can be customized to fit your
needs i.e. 10VDC, 12V, 18VDC ...
|
|
Current (4-20mA) or DC
Voltage (A to B) to DC voltage (X to Y) Converter
(Scale) board with
+15VDC auxiliary output
voltage signal
for sensor drive.
-2.5V to 2.5V scale to 0V
to 10V
-2.5V to 2.5V scale to 0V
to 5V
0V to 5V scale to 0V to
10V
0V to 10V scale to 2V to
10V
0.2V to 1.2V scale to
3.75V to 2.25V
2.73V to 3.73V scale to 0V
to 5V
2.73V to 3.73V scale to 0V
to 10V
-5V to 5V scale to 0V to
1V
-5V to 5V scale to 0V to
5V
-5V to 5V scale to 0V to
10V
2.23V to 4.23V scale to 0V
to 10V
AV to BV scale to XV to YV
...
|
|
Industrial
voltage "bi-polar" signals (-0.25V to
0.25V, -0.5V to 0.5V, -0.75V to 0.75V, -1V to
1V,
-1.25V to 1.25V, -2.5V to 2.5V, -3.5V to 3.5V, -3.75V to
3.75V,-5V to 5V or -10V to 10V) to
"uni-polar" voltage 0 to 10V
(3.3...5...10V) converter interface board
with
both Zero and Span adjustments.
Control Bipolar Signal (Differential, Proportional) voltage to voltage
Single Polar (Single
ended)
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. The boards offers
effective, state-of-the-art, reliable linear control of
HVAC +/-10V, motor drive, motor speed controls, dampers and valves. |
|
or
DC
Bi-Polar Voltage (-VX to +VX) to Uni-Polar DC voltage (0 to X) Converter
(Scale) board
Convert from ±10V Bipolar input signal to 0-3.3V or 0-5V
or 0-10V Unipolar output signal
-10V to 10V scale
(convert) to 0V
to 10V
-10V to 10V scale
(convert) to 0V
to 5V
-10V to 10V scale
(convert) to 0V
to 3.3V...
Convert from ±5V Bipolar input signal to 0-3.3V or 0-5V
or 0-10V Unipolar output signal
-5V to 5V scale
(convert) to 0V
to 10V
-5V to 5V scale
(convert) to 0V
to 5V
-5V to 5V scale
(convert) to 0V
to 3.3V...
Bipolar ±0.25V
to Unipolar 0 to 10V Converter
Bipolar ±0.5V
to Unipolar 0 to 10V Converter
Bipolar ±1V to Unipolar 0 to 10V
Converter
Bipolar ±3.3V to Unipolar 0 to 10V
Converter
Bipolar ±5V to Unipolar 0 to 10V
Converter
Bipolar ±10V to Unipolar 0 to 10V
Converter
|
|
Signal
"Manual-Off-Automatic" interface board
with
unique per channel outputs: signal/override voltage and
switch status. Ideally for remote actuator or dumper adjustment.
Allows the engineer to checkout and manual override of actuators, dumpers
and linkage operation to the controller. Additionally,
provides temporary override or cut (disable) the signal if the
controller malfunctions.
|
|
|
|
|
Up
to 4 Signals Buffer/Splitter interface board
with
unique buffered input/inputs to multiple outputs
(splitter) selectable jumpers. Up to 4X4 configuration
|
|
or
High-Performance Industrial
DIN Rail Mount Quad Buffer and Splitter OP-AMP
Split
0-10V signal up to four (4) 0-10V signals...
|
|
Signal Splitter (and
buffer) interface board
with
unique input to multiple buffered outputs
(splitter) 1X2, 1X3,1X4 configurations
|
|
or
High-Performance Industrial
DIN Rail Mount Signal Splitter
Split
0-10V signal up to four (4) 0-10V signals...
|
|
A Reverse and/or Inverter OP-AMP interface board
|
|
or
High-Performance Industrial
DIN Rail Mount reverse/Inverter signal OP-AMP Interface
board with Zero, Bias and Span (Gain)
Adjustments. Available in three models.
Convert 0-10V to 10-0V
Convert +/-10V to -/+10V...
|
|
An Absolute and
Inverter OP-AMP interface board
with
unique Dual function on board connections
|
|
or
High-Performance Industrial
DIN Rail Mount Absolute and Inverter OP-AMP with Gain
Adjustments.
|
|
An Custom General
Purpose Amplifier interface board
with
unique design board.
|
|
or
High-Performance Industrial
DIN Rail Mount customized scientific
General Purpose Amplifier with both Gain and Bias
Adjustments.
|
|
Slotted
Infra Red (IR)
Detector Interface
Board Transducer is the simple non-contact solution for
detecting/checking pin location. Ideal for zero
positioning and motor RPM measurements.
|
|
or
|
|
Reflective Infra Red (IR)
Line
Detector
Interface Board Transducer is the simple non-contact solution for
detecting/checking liquid level in
a clear pipe. It utilized as Line Level Detection (LLP)
in Bottle filling and dispensing applications
|
|

or
|
|
"Air-in-line'
interface board is the simple non-contact solution for
detecting/checking air bobbles in
a clear pipe. The board also includes analog switch interface
that eliminates the bouncing problem of your switch... no
more false switch readings from your I/O pins.
This
unique OEM non-contact fluid interface board is design
to detect air bobble in blood, plasma and intravenous
fluids or any other applications that require feedback
and verification of the presence of liquid and/or air
bobble in the liquid flowing throw clear tubing of
0.25” OD or less.
|
|
|
The non invasive liquid IR
sensor front and side (with clear pipe) views is ideal
for interrupt plasma, blood and fluid air bobble
and continues flow detection.
|
|
Current
simulator
tester 4-20mA. Ideal for test driving
actuators and remote sensing, or
source
milliamps.
The CHECKER-MA3X, 24V AC or DC operated electronic 4-20
mA SIMULATOR board that provides a accurate quick and
easy simulated output of 4mA, 12mA and 20mA for use in
checking testing and calibrating instruments with 4-20mA
current input. Also, it is the ideal device to set up
indicating ranges on panel meters and controllers.
Calibrate recorders, digital indicators, stroke valves
or any other instruments that get their input from a 4
to 20 mA loop. Easily set three value to within 0.01 mA
via front mounted rotary switch
The
CHECKER-MA3X provide industrial long distance carry
voltage 12-20VDc with three preset current 4mA, 12mA and 20 mA
allows one to test your transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. This board offers
effective, state-of-the-art, reliable linear current
setting and testing of
HVAC 4-20 mA dampers and valves. |
|
Model A
Model B with 4 Terminal Block
CHECKER-MA3X: 4-20mA (420) Current tester,
simulator (Industrial checker power of 24V AC or DC):
Off, 4mA, 12mA or 20mA output, up to 4 miles!
|
|
Voltage to current transducer.
Convert 0/4.8 to 24V or 0/2 to 10V or 0/1 to5V DC (many voltage
configurations are available) to 0/4-20mA
(0/4...20mA). Our
precision Voltage-to-Current Converter/Transmitter are ideal for driving
actuators and remote sensing.
4-20 mA voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. This board offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20 mA dampers and valves. |
|
Model
A with 6 pins
|
Model
B with 5 terminal block
Convert 1-5V, 2-10V or
4.8-24V DC to Current 4-20mA
|
|
or
Model
C with 6 terminal block
Convert 66mV-1.2V,
400mV-2V, 1-5V, 2-10V, 3-15V or
4.8-24V DC to Current 4-20mA
|
|
Voltage to Current Signal Converter/transducer. Convert
analog voltage signal 0/4.8 to 24V or 0/2 to 10V or 0/1 to5V DC (many voltage
configurations are available) to current 0/4-20mA
(0/4...20mA). Our
precision Voltage-to-Current Converter/Transmitter are ideal for driving
actuators and remote sensing.
4-20 mA single channel voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. This board offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20 mA dampers and valves. |
|
or
Model
1KX
Convert voltages: 66mV-1.2V,
400mV-2V, 1-5V, 2-10V, 3-15V or
4.8-24V DC to Current 4-20mA
|
|
In-Line
Voltage to Current Signal Converter/transducer. Convert
in line analog voltage signal 0/4.8 to 24V or 0/2 to 10V or 0/1 to5V DC (many voltage
configurations are available) to current 0/4-20mA
(0/4...20mA). Our
precision Voltage-to-Current Converter/Transmitter are ideal for driving
actuators and remote sensing.
4-20 mA in line voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. This board offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20 mA dampers and valves. |
|
Model
1ILJX
Convert in-line voltage: 66mV-1.2V,
400mV-2V, 1-5V, 2-10V, 3-15V or
4.8-24V DC to Current 4-20mA
|
|
Dual
voltage to current transducer.
Convert two 0/4.8 to 24V or 0/2 to 10V or 0/1 to5V DC (many voltage
configurations are available) to 0/4-20mA
(0/4...20mA). Our
precision Voltage-to-Current Converter/Transmitter are ideal for driving
actuators and remote sensing.
4-20 mA dual channel voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. This board offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20 mA dampers and valves. |
|
Model
2NX
Convert dual voltages: 66mV-1.2V,
400mV-2V, 1-5V, 2-10V, 3-15V or
4.8-24V DC to Current 4-20mA
|
|
Dual in line voltage to current transducer.
Convert two in line 0/4.8 to 24V or 0/2 to 10V or 0/1 to5V DC (many voltage
configurations are available) to 0/4-20mA
(0/4...20mA). Our
precision dual Voltage-to-Current Converter/Transmitter are ideal for driving
actuators and remote sensing.
4-20mA dual in line channel voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. This board offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20mA dampers and valves. |
|
DUAL Voltage to 0-20mA Outputs, Splitter, Re-transmitter,
Duplicator Super Transducer
Industrial Dual 0-20mA Outputs In-Line Transducer Signal
Splitter Module
Model
2AXIL
or
Model
2LXIL
Convert dual in line voltages: 66mV-1.2V,
400mV-2V, 1-5V, 2-10V, 3-15V or
4.8-24V DC to Current 4-20mA
|
|
Quad in line voltage to current transducer. Convert
up to four deferent in line signal voltages 0/4.8 to 24V or 0/2 to 10V or 0/1 to5V DC (many voltage
configurations are available) to 0/4-20mA
(0/4...20mA). Our
precision quad Voltage-to-Current Converter/Transmitter/splitter are ideal for driving
multiple actuators and remote sensing.
The CONVERTER,
Quad Voltage input signals
i.e 0-10V. 2-10V, 4.8b-24V... to Quad Outputs 0-20mA or
4-20 mA Splitter / converter/ Re-transmitter. Simple
linear 4-way signal duplicator for
remote applications up to 4 mils.
4-20mA dual in line channel voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. This board offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20 mA dampers and valves. |
|
QUAD Voltage to 0-20mA Outputs, Splitter, Re-transmitter,
Duplicator Super Transducer
Industrial QUAD 0-20mA Outputs In-Line Transducer Signal
Splitter Module
Model
4AXIL, 4 channel in-line, voltage (0-10V, 2-10V) to current (0-20mA, 4-20mA)
converter/splitter board,
with 18 terminal block,
power of 24V or 28V AC/DC
Quad Voltage input signals
i.e 0-10V. 2-10V, 4.8b-24V... to Quad Outputs 0-20mA or
4-20 mA Splitter / converter/ Re-transmitter
Convert Quad in line voltages: 66mV-1.2V,
400mV-2V, 1-5V, 2-10V, 3-15V or
4.8-24V DC to Current 4-20mA
|
|
Industrial
Voltage signals (0-1V, 0-2V, 0-2.5, 0-3V, 0-4.096V,
0-5V, 0-10V, 0-15V or 0-24V DC) to Current
4-20mA
(4...20mA) converter interface board
with
both Zero and Span adjustments.
Control Signal (Proportional) 4-20 mA. Single Ended and
differential Voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. The boards offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20 mA dampers and valves. |
|
or
Model
E
High-Performance Industrial
DIN Rail Mount Differential-Input Voltage to Current
(4-20mA) Signal Conditioners with Zero & Span
Adjustments.
Convert Diff. 0-1V,
0-2V, 0-2.5V, 0-3V, 0-4.096V, 0-5V, 0-10V, 0-15V, 0-24V, 0-30V DC to Current 4-20mA
|
|
or
Model
G input with Zero and Span Adjustment
High-Performance Industrial
DIN Rail Mount
Single Ended (SE)
Voltage to Current (4-20mA) Signal Conditioners with
Zero & Span Adjustments.
Convert SE 0-1V,
0-2V, 0-2.5V, 0-3V, 0-4.096V, 0-5V, 0-10V, 0-15V, 0-24V, 0-30V DC to Current 4-20mA
|
|
Model
G2 Dual inputs 4-20mA outputs with dual
channel Zero and Span Adjustment
High-Performance Industrial
Dual
Single Ended (SE)
Voltage to Current (4-20mA) Signal Conditioners with
per channel Zero & Span Adjustments.
Convert dual different SE
inputs 0-1V,
0-2V, 0-2.5V, 0-3V, 0-4.096V, 0-5V, 0-10V, 0-15V, 0-24V, 0-30V DC to
dual Current 4-20mA outputs
|
|
DUAL 4-20mA Outputs, Splitter, Re-transmitter,
Duplicator Super Transducer
Industrial Dual 4-20mA Outputs Super Transducer Signal
Splitter Module
or
Model
G2 Dual Voltage inputs to current 4-20mA outputs with
per
channel Zero and Span Adjustment
High-Performance Industrial
Dual
Single Ended (SE)
Voltage to Current (4-20mA) Signal Conditioners with
per channel Zero & Span Adjustments.
Convert two different SE
inputs 0-1V,
0-2V, 0-2.5V, 0-3V, 0-4.096V, 0-5V, 0-10V, 0-15V, 0-24V, 0-30V DC to
three Current 4-20mA outputs
Configure and or Spite One input to one
output or one input to two outputs (2X)
ideal for 0-20mA to quad 4-20mA splitter or
re-transmitter as well as 4 channel 0-10V to 4-20ma
converter.
|
|
TRIPLE 4-20mA Outputs, Splitter, Re-transmitter,
Duplicator Super Transducer.
Industrial Triple 4-20mA Outputs Super Transducer Signal
Splitter Module
Model
G3 In-Line Triple Voltage inputs to current 4-20mA outputs with
per
channel Zero and Span Adjustment
High-Performance Industrial
triple
Single Ended (SE)
Voltage to Current (4-20mA) Signal Conditioners with
per channel Zero & Span Adjustments.
Convert tree different SE
inputs 0-1V,
0-2V, 0-2.5V, 0-3V, 0-4.096V, 0-5V, 0-10V, 0-15V, 0-24V, 0-30V DC to
three Current 4-20mA outputs
Configure and or Spite One input to one
output or one input to two or three outputs (3X)
ideal for 0-20mA to quad 4-20mA splitter or
re-transmitter as well as 4 channel 0-10V to 4-20ma
converter.
|
|
QUAD 4-20mA Outputs, Splitter, Re-transmitter,
Duplicator Super Transducer
Industrial Quad 4-20mA Outputs Super Transducer Signal
Splitter Module
Model G4
Model G4SMT
Model
G4 and G4SMT In-Line Quad inputs voltage or current to 4-20mA outputs with
quad
channel Zero and Span Adjustment.
High-Performance Industrial
In-line Quad
Single Ended (SE)
Voltage to Current (4-20mA) Signal Conditioners with
per channel Zero & Span Adjustments.
Convert quad different SE
inputs 0-1V,
0-2V, 0-2.5V, 0-3V, 0-4.096V, 0-5V, 0-10V, 0-15V, 0-24V, 0-30V DC to
quad Current 4-20mA outputs.
Configure and or Spite one input to one
output or one input to two or three or four outputs (4X)
ideal for 0-20mA to quad 4-20mA splitter or
re-transmitter as well as 4 channel 0-10V to 4-20ma
converter.
0-10V or 0-20mA analog
linear input signal
duplicator/splitter/signal-retransmitted; This
board/module is designed to duplicate and or split a
linear single 0-20mA or 0-10V input signal into two,
three or four separate 4-20mA or 2-10V linear output
signals. Separate calibration adjustments (ZERO AND
SPAN) are provided for each output channel
independently.
Many models are
available-- I.e. 0 to 30V input signal to 4-20mA output
for your battery voltage remote monitoring (up to 4
miles away!). 0 to 3.3V input signals to 4-20mA outputs
for remote underwater robot steering and communications.
If you can’t find the
model that fit your application specification, simply
ask one of our sale representatives to build you new OEM
part number. This product can be customized as an OEM
with your logo/part number, watertight enclosure with
cable gland, and DIN-RAIL.
|
|
Industrial
Voltage signals (0-5V, 0-10V or 0-24V DC) to Current
4-20mA
(4...20mA) converter interface board
with
both Zero and Span adjustments.
Control Signal (Proportional) 4-20 mA. Voltage to current
Transducer for HVAC (Heating, Ventilation and Air
Conditioning), Electro-hydraulic and Servo Electronics;
Actuator, Dampers, Bleed Pilot Valve, Globe valves,
Butterfly valves and Plug valves. The boards offers
effective, state-of-the-art, reliable linear control of
HVAC 4-20 mA dampers and valves. |
|
or
Model
J Model
K
DIN Rail Mount, Convert 0-5V, 0-10V or
0-24V DC to Current 4-20mA
|
|
Industrial
Precision Current (4-20mA) to Voltage converter/transmitter interface board
with
unique dual output, ranges selection via selectable jumpers.
Zero and Span Adjustment.
Commonly utilized as the heart of 420 to +/-10V
Amplifier and In-Line Amplifier Transducer.
Current 4-20mA (4...20mA)
to Voltage Converter
receive signals from a hazardous area instrument i.e.,
temperature sensors, potentiometers or load cells and
then convert and condition them
into Industrial
signals: 0-10V (0…10V)
or Bi-polar +/-10V (-10…0…10V)
Input
industrial
standards current: 4-20mA or 1-5mA or 10-50mA or 20-100mA
Outputs
industrial
standards voltages and more:
Model A, 0 to
10V, 0 to -10V, 10 to -10V, -10 to 10V, -5V to
5V, 5V to -5V
Model B, 0 to 5V, 0 to -5V, 5 to
-5V, -5 to 5V, -2.5V to -2.5V, 2.5V to -2.5V,
0 to 10V, 0 to -10V
Model C, 0 to 3.3V, 0 to -3.3V, 5 to
-5V, -5 to 5V, -1.65V to -1.65V, 1.65V to -1.65V,
0 to 10V, 0 to -10V
Model D, 0 to 3V, 0 to -3V, 5 to
-5V, -5 to 5V, -1.5V to -1.5V, 1.5V to -1.5V,
0 to 10V, 0 to -10V
|
|
or
DIN Rail Mount Differential-Input Current (4-20mA) to Dual-Output
Analog Voltage Signal Conditioners with Zero & Span
Adjustments.
Convert 4-20mA to Unipolar Voltage 0-3V, 0-3.3V, 0-5V, 0-10V
or Bipolar voltage +/-2.5V, +/-5V, +/-10V...
|
|
Industrial
Precision Current (4-20mA) to Voltage transducer interface board
with
unique two output ranges selection via selectable jumper.
Input
industrial
standards current: 4-20mA or 1-5mA or 10-50mA or 20-100mA
Outputs
industrial
standards voltages and more:
Model A, 0 to
5V, 0 to 10V,
Model B, 0 to
-2.5V, 0 to -5V
Model C, 0 to
1V, 0 to 2V
Model D, 0 to
-1V, 0 to -2V
Model E, 0 to
3V, 0 to 3.3V
Model F, 0 to
-3V, 0 to -3.3V
Model G, -2.5 to 2.5V, -5 to
5V
Model H, 2.5 to
-2.5V, 5 to -5V
Model I, -0.5 to 0.5V, -1 to
1V
Model J, 0.5 to
-0.5V, 1 to -1V
Model X, 0 to
4.6V, 0 to 6.4V
|
|
or
DIN Rail Mount Differential-Input Current (4-20mA) to
Analog Voltage Signal Conditioners with Zero & Span Adj.
Convert 4-20mA (Input) to
Unipolar or Bipolar Voltage (Output) 0 to 5V, 0 to 10V, 0 to -5V, 0
to -2.5V, 0 to 1V, 0 to 2V, 0 to -1V, 0 to -2V, 0 to 3V,
0 to 3.3V, 0 to -3V,
0 to -3.3V, -2.5 to 2.5V, -5 to 5V, 2.5 to -2.5V, 5 to
-5V, -0.5 to 0.5V, -1 to 1V, 0.5 to -0.5V, 1 to -1V 0 to 4.6V or 0 to 6.4V...
|
|
Dual 4-20mA Inputs, Splitter, Re-transmitter,
Duplicator Super Transducer
Industrial Dual 4-20mA Inputs to Dual 0-10V output Super Transducer Signal
Splitter Module
or
Industrial DIN Rail Mount Dual Channel Differential-Input Current (4-20mA) to
Analog Voltage Signal Conditioners, converter with per
channel Zero & Span Adj.
Convert or split dual 4-20mA (Inputs) to Unipolar or Bipolar Voltage (Output) 0 to 5V, 0 to 10V, 0 to -5V, 0
to -2.5V, 0 to 1V, 0 to 2V, 0 to -1V, 0 to -2V, 0 to 3V,
0 to 3.3V, 0 to -3V,
0 to -3.3V, -2.5 to 2.5V, -5 to 5V, 2.5 to -2.5V, 5 to
-5V, -0.5 to 0.5V, -1 to 1V, 0.5 to -0.5V, 1 to -1V 0 to 4.6V or 0 to 6.4V...
|
|
QUAD 4-20mA Inputs, Splitter, Re-transmitter,
Duplicator Super Transducer
Industrial Quad 4-20mA Inputs to Quad 0-10V output Super Transducer Signal
Splitter Module
QCVC (Quad current to voltage converter) Trough-hole
Model
Qaud QCVC SMT Model
Trough-hole and SMT Models
Industrial Quad Channel Differential-Input Current (4-20mA) to
Analog Voltage Signal Conditioners, converter with per
channel Zero & Span Adj.
Convert or split quad 4-20mA (Inputs) to Unipolar or Bipolar Voltage (Output) 0 to 5V, 0 to 10V, 0 to -5V, 0
to -2.5V, 0 to 1V, 0 to 2V, 0 to -1V, 0 to -2V, 0 to 3V,
0 to 3.3V, 0 to -3V,
0 to -3.3V, -2.5 to 2.5V, -5 to 5V, 2.5 to -2.5V, 5 to
-5V, -0.5 to 0.5V, -1 to 1V, 0.5 to -0.5V, 1 to -1V 0 to 4.6V or 0 to 6.4V...
|
|
Industrial
Precision Current (4-20mA) to Output Reversed Direction
(O.R.D.) Voltage transducer interface board
with
unique two output ranges selection via selectable jumper.
Input
industrial
standards current: 4-20mA or 1-5mA or 10-50mA or 20-100mA
Linear Reversed Direction Outputs
industrial
standards voltages and more:
Model A, 5V to
5V, 10 to 0V,
Model B, -2.5V to
0V, -5V to 0V
Model C, 1V to
0V, 2V to0V
Model D, -1V to
0V, -2V to 0V
Model E, 3V to
0V, 3.3V to 0V
Model F, -3V to
0V, -3V to 0V
|
|
or
DIN Rail Mount Differential-Input Current (4-20mA) to
Reversed Direction Analog Voltage Signal Conditioners with Zero & Span Adj.
Convert 4-20mA (Input) to
Bipolar Voltage (Output) 5V to 0V, 10 to 0V, -5 to 0V,
-2.5
to 0V, 1V to 0V, 2V to 0V, -1V to 0V, -2V to 0V, 3V to 0V,
3.3V to 0V, -3V to 0V,
-3.3V to 0V, 4.6V to 0V or 6.4V to 0V...
|
|
Industrial
Phase-cut (0-20V) to Voltage transducer interface board.
The board offers
effective Interface between
phase cut controller signal outputs and VFD, Damper,
Magnetic Valves or Actuators with voltage standard 0 to
10VDC inputs.
|
|
or
DIN Rail Mount phase-cut-Input voltage (0-20V) to
0-10V DC Analog Voltage Signal Conversion with Power
indication LED, Zero & Span Adj.
|
|
Motor Speed Control interface board.
On board Pulse Width
Modulation (P.W.M.)
generator from 2% to 99% Available @ frequencies of
60HZ, 132HZ, 1.3KHz, 4KHz, 13KHz or 24KHz. Available @
6V, 9V, 12VDC & 24VDC
Call or e-mail to
customize your OEM unit.
|
|
DC Motor Speed
Control with PWM (Pulse-Width Modulation)
Available @ 6VDC,
9VDC, 12VDC, 24VDC and 28VDC
Available @
frequencies of 60Hz, 132Hz, 1.3KHz, 4KHz, 13KHz or 24KHz
|
|

or
External "N" or "P"
type Power MOSFET transistor module for high current PWM driven DC
motor speed
control
The board available @ single or
double MOS-FET configuration, in both P or N Channel
|
|
PIVOT-PBX5/R/D,
industrial remotely-control 12V, 24V or 28VDC, up to .5 HP brushed motor
from low voltage DC, solar panel or battery-pack source.
Providing smooth variable speed capability for mobile equipment.
Proudly designed, fabricated and MADE IN
U.S.A.
PWM FREQ., MINIMUM, MAXIMUM, I.R., CURRENT LIMIT, ACCEL. ...
FUSE, HIGH CURRENT QUICK-FIT TERMINALS, CONTROL TERMINAL-BLOCKS,
INHIBIT, NEMA-ENCLOSURE ...
EID's PIVOT-PBX5/R/D Industrial
Variable PWM DC Motor Control
modules are an Original Manufacturing Engineering (OEM)
industrial and commercial rated high performance, high
efficiency pulse-width modulation (PWM) speed control.
Depending on model, the control can drive
a 12V, 24V or 28V DC motor, while powered by standard DC
voltages a 12V, 24V or 28V. Therefore, it can be powered
by car, boat, RV, or airplane DC power source or
batteries. It provides smooth control operation with
high efficiency in a compact form.
It is designed for
heavy-duty battery operated permanent magnet DC motor
applications, such as small personnel carriers, floor
scrubbers, automatic guided vehicles (AVG), mobile
robot, laser guided vehicles (LGV), agricultural
sprayers, wire feeder and a vast variety of other portable equipment.
The board is the
industry’s first high current driver for 12V, 24V and
28V battery packs, bringing unprecedented flexibility to
today’s advanced industrial battery applications.
|
|
PIVOT-PBX5,
industrial remotely-control
24V, 36V, 48V VDC, up to .75 HP brushed motor
from low voltage DC, solar panel or battery-pack source.
Providing smooth variable speed capability for mobile equipment.
ON BOARD SETTINGS: MINIMUM, MAXIMUM, I.R., CURRENT LIMIT, ACCEL., HIGH CURRENT TERMINAL
Block, AND LOW CURRENT CONTROL TERMINAL-BLOCKS,
INHIBIT...
EID's PIVOT-PBX5/R/D Industrial
Variable PWM DC Motor Control
modules are an Original Manufacturing Engineering (OEM)
industrial and commercial rated high performance, high
efficiency pulse-width modulation (PWM) speed control.
Depending on model, the control can drive
a 36V or 48V DC motor, while powered by standard DC
voltages a 36V or 48V. Therefore, it can be powered
by car, boat, RV, or airplane DC power source or
batteries. It provides smooth control operation with
high efficiency in a compact form.
It is designed for
heavy-duty battery operated permanent magnet DC motor
applications, such as small personnel carriers, floor
scrubbers, automatic guided vehicles (AVG), mobile
robot, laser guided vehicles (LGV), agricultural
sprayers, wire feeder and a vast variety of other portable equipment.
|
|
PIVOT-PULSERTM
UP TO 1.2 HP
PERMANENT MAGNET DC MOTOR SPEED CONTROLLER/DRIVER WITH OVER
CURRENT & OVER TEMPERATURE PROTECTIONS, ACCELERATION (SOFT
START) FUNCTION & MORE
Shown above front (and front side) view, warning
face-plate and High Voltage protection plate kit
(optional)
ON BOARD SETTINGS: MINIMUM, MAXIMUM, I.R., CURRENT LIMIT, ACCEL., HIGH CURRENT TERMINAL
Block, AND LOW CURRENT CONTROL TERMINAL-BLOCKS,
INHIBIT...
PIVOT-PULSERTM
VARIABLE
SPEED PWM DC MOTOR CONTROLLER & DRIVER MODULE is an
Original Equipment Manufacturer (OEM) industrial and
commercial, rated high performance, high efficiency and
high power
pulse-width modulation (PWM)
velocity and speed control.
PIVOT-PULSERTM
is a feature rich electronic
interface board module designed to control a 12V,
24V or 28V
PMDC motor locally via potentiometer and/or switch, or
remotely via isolated signal. The output average current
is a linear function of the input signal of
potentiometer rotation. If used properly, it may
eliminate the need for expensive boards and instruments,
which would otherwise be required to carry out the same
control tasks, or a Programmable Logic Control (PLC).
Mounting the controller/driver is easy
via up to four (4) 0.160" mounting holes using 6-32
screws and wired securely via front mounted conventional
industrial standard cage-up type Terminal Blocks (TB)
and high current Quick-Fit terminals or barrier type
Terminal Blocks. |
|
PIVOTTM
BLDC:
3-Phase BLDC (Brush-Less Direct Currant) Motor Speed Driver (Amplifier) & Controller
(open or closed loop) interface board. Designed for
application where rapid smooth and fast acceleration and
deceleration, high torque and high velocity accuracy are
needed
High performance high efficiency third
generation monolithic brushless DC motor controller
3-phase Brushless DC Motor Control system. Functions
include open loop speed, forward or reverse direction,
run enable, External Tachometer output, and dynamic
braking. The board designed to operate with electrical
sensor phasing of 60° or 120°, and can also efficiently
control brush DC motors.
PIVOTTM
BLDC Module Features:
-
18 to 54 V Operation
-
PWM (Pulse
Wide Modulation)
and PID (Proportional
Integral Derivative )
closed loop systems
-
Under Voltage Lockout
-
External Over Temperature Lockout and
Internal Thermal Shutdown
-
Reference Supplying Sensor Power
(Hall Effect)
-
Accessible Error Amplifier for Closed
Loop Servo Applications
-
High Current Drivers 3-Phase MOSFET
Bridge (from 6 to 18 POWER MOSFET)
-
Cycle-By-Cycle Current Limiting
-
Selectable 60° or 120° Sensor Phasing
-
External Tachometer output
-
System Fault alarm indicator as well
as Fault alarm output on some models
-
Power indicator
-
Can Efficiently Control Brushless, Brush DC Motor
and PM DC Motor
|
|
PIVOT PIONEERTM UP TO 0.5 HP
3-PHASE BRUSHLESS MOTOR SPEED CONTROLLER/AMPLIFIER/DRIVER WITH OVER
CURRENT & OVER TEMPERATURE PROTECTIONS & MORE
PIVOT PIONEERTM
VARIABLE SPEED 3-PHASE BRUSHLESS DC MOTOR CONTROLLER &
DRIVER MODULE is an Original Equipment Manufacturer
(OEM) medical, avionic, industrial and commercial, high
performance rated, high efficiency and high power BLDC
velocity and speed control.
PIVOT PIONEERTM is
designed to drive power DC brushless motors at currents
up to 20A at 54V, utilizing Hall effect switch sensors
feedback for a constant velocity of the brushless
motors. The controller/driver is protected against over
current (cycle-by-cycle limited), Hall effect switch
sensors error and under voltage. A two quadrant drive
technique results in a low cost, and highly efficient
drive.
PIVOT PIONEERTM is a
feature rich electronic interface board module designed
to control a 24V, 28V, 36V or 48V 3-phase brushless DC
motor locally via potentiometer and/or switch, or
remotely via isolated signal. The output average current
is a linear function of the input signal of
potentiometer rotation. If used properly, it may
eliminate the need for expensive boards and instruments,
which would otherwise be required to carry out the same
control tasks, or a Programmable Logic Control (PLC).
The controller can drive a 24V, 28V, 36V
or 48V DC 3-phase brushless motor, while powered by
standard DC voltages of 24V, 28V, 36V or 48V. Therefore,
it can be powered by properly configured car, boat, RV,
or airplane DC power sources or batteries. It provides a
smooth and quiet control operation with high efficiency
in a compact form.
It is designed for heavy-duty battery
operated permanent magnet 3-phase brushless DC motor
applications, such as small personnel carriers,
automatic guided vehicles (AGV), mobile robots, laser
guided vehicles (LGV), agricultural sprayers, and a vast
variety of other portable equipment such as automated
machinery and processes that involve food, cosmetic,
textile yarn winding machines, diamond polishing
machines, packaging machines, pumps, fans, laboratory
centrifuge machines, large hand tools, blowers, mixers,
or medical packaging and diagnostics, motor controls for
respirators, labeling, electronic assembly robotics,
factory automation, conveyor and material handling
systems, pump flow control, XYZ table, equipment
upgrades for brushless type motors, and numerous other
applications where low or high torque stable speed
control is required.
The board offers those features required
for professional high current, closed loop, synchronized
3-phase brushless DC motor control.
Mounting the controller/driver is easy
via up to four (4) 0.160" mounting holes using 6-32
screws and wired securely via front mounted conventional
industrial standard cage-up type Terminal Blocks (TB)
and high current Quick-Fit terminals or barrier type
Terminal Blocks. |
|
PIVOT POWERTM UP TO 2.5 HP
3-PHASE BRUSHLESS MOTOR SPEED CONTROLLER//AMPLIFIER/DRIVER WITH OVER
CURRENT & OVER TEMPERATURE PROTECTIONS & MORE
PIVOT-POWERTM VARIABLE
SPEED 3-PHASE BRUSHLESS DC MOTOR CONTROLLER & DRIVER
MODULE is an Original Equipment Manufacturer (OEM)
medical, avionic, industrial and commercial, high
performance rated, high efficiency and high power BLDC
velocity and speed control.
Mounting the controller/driver is easy
via up to six (6) 0.178" mounting holes using 8-32
screws and wired securely via front mounted conventional
industrial standard cage-up type Terminal Blocks (TB)
and high current Quick-Fit terminals or barrier type
Terminal Blocks. |
|
PIVOT-SUPREMERTM UP TO 2.5 HP 3-PHASE BRUSHLESS
MOTOR SPEED CONTROLLER//AMPLIFIER/DRIVER WITH OVER CURRENT & OVER
TEMPERATURE PROTECTIONS, ACCELERATION, DECELERATION FUNCTIONS &
MORE
PIVOT-SUPREMERTM
VARIABLE SPEED 3-PHASE BRUSHLESS DC MOTOR CONTROLLER &
DRIVER MODULE is an Original Equipment Manufacturer
(OEM) medical, avionic, industrial and commercial, high
performance rated, high efficiency and high power BLDC
velocity and speed control.
Mounting the controller/driver is easy
via up to six (6) 0.178" mounting holes using 8-32
screws and wired securely via front mounted conventional
industrial standard cage-up type Terminal Blocks (TB)
and high current Quick-Fit terminals or barrier type
Terminal Blocks. |
|
PIVOT-EXTREMERTM UP TO 3.3HP 3-PHASE BRUSHLESS
MOTOR SPEED CONTROLLER//AMPLIFIER/DRIVER WITH OVER CURRENT & OVER
TEMPERATURE PROTECTIONS, ACCELERATION, DECELERATION FUNCTIONS &
MORE
PIVOT-EXTREMERTM
VARIABLE SPEED 3-PHASE BRUSHLESS DC MOTOR CONTROLLER &
DRIVER MODULE is an Original Equipment Manufacturer
(OEM) medical, avionic, industrial and commercial, high
performance rated, high efficiency and high power BLDC
velocity and speed control.
Mounting the controller/driver is easy
via up to six (6) 0.178" mounting holes using 8-32
screws and wired securely via front mounted conventional
industrial standard cage-up type Terminal Blocks (TB)
and high current Quick-Fit terminals or barrier type
Terminal Blocks. |
|
Industrial Precision
Drive Current or Voltage Multi Configuration Servo
Amplifier with PID and Dither Control interface board.
A
Super servo amplifier nodule with
Proportional–Integral–Derivative and Dither controller
(P.I.D. + D controller). The OEM P.I.D.D. (Proportional,
Integral, Derivative, Dither) allows one to accurately
control the position of his/her servo motor rotor, servo
valve etc. The interface board includes the mathematical
algorithm of the PID + D Proportional, Integral,
Derivative and Dither control options and more.
Call or e-mail to
customize your OEM unit.
|
|
Servo Amplifier with
Proportional Integral (with stop relay option),
Derivative, and Dither
selecting settings and super fine adjustments:
Rails Power LED
indications
Dither On/Off
settings and frequency adjustments
Main Gain, Scale,
Trim and Bias adjustments
Proportional On/Off
settings and adjustments
Integral On/Off
settings, adjustments and external "cut-off" relay
function with LED indicator.
Derivative On/Off
settings, gain adjustments and derivative frequency
adjustments
Output current or
bi-polar voltage drive select
Inner Loop Input
Configure servo
amplifier your way PID, PI, ID, P or Open-Loop...
|
|
or
Servo Amplifier
"Caddy" Current to voltage converter and Unity Gain
Inverter Module
|
|
Industrial Precision
RC Servo Drive & Control interface board.
Micro-controller based RC
Servo derivers and controllers.
The RC-Servo Motor Driver & Control Interface Board
Module produces the required PWM multiplexing signal at
50 Hz of PWM main frequency (period of 20ms) for
controlling the RC Servo motors. The PWM signal is used
for controlling the motor position or direction. The
position and direction are direct result of the
potentiometer (POT, Pot) position. The driver designed
to support both, Industrial high quality RC Servo motor
that require 2000 levels corresponding to 0-5VDC POT’s
position and/or 255 levels standard of low quality RC
Servo motors.
Please be advised that the exact PWM width is depending
on the servo motor types and brands.
Call or e-mail to
customize your OEM Servo Driver. |
|
Single Channel Servo Drive
& Controller
|
Dual Channel Servo Drive &
Controller
|
|
Triple Channel Servo Drive
& Controller
|
Quad Channel Servo Drive &
Controller
|
|
OEM Joystick Controlled Dual Servo Drive.
Typical applications include CCTV (pan and tilt),
robotics, electric wheelchairs, go-cart and measurement
systems.
|
|
Industrial Start/Stop (On/Off) Pulse Control For Motor/Light Latching
Relay
Remotely control Start/Stop (On/Off, Run/Stop) Motor/Light
latching relay pulse signal. The Board allows the
control of up to twenty-four (24) GE RR7 or GE RR9 relays or up to
twelve (12) P&S 1070-B relays from PLC dry contact or switch. Call or e-mail to
customize your OEM unit. |
|
Use Single Button Switches or PLC's relay-switch to
generate short pulses for START/STOP latching relay
|
|
Industrial
Start/Stop (On/Off) Motor/Light Latching Relay + "Start
Delay"
Control Start/Stop (On/Off, Run/Stop) Motor Drive or Light
control latching relay + Start delay function, Sync and VXR
outputs via terminal blocks.
Call or e-mail to
customize your OEM unit. |
|
Use Start (Run) and Stop Push Button Switches or 3
Positions Toggle Switch (NO-Center-NC) to control line
power for both, Motor or Light Control Circuits.
|
|
Industrial
Single Phase Half Controlled Bridge Rectifier Module
Industry-standard High current, voltage and efficiency
power diode and Silicon Controlled Rectifier (SCR)
module. The module is ideal choice for DC Motor Speed
Control (Drive). |
|
Made in USA, AC to DC SCR/DIODE Module. State of the art PCB
design for current ratings up to 30A allow the modules
to achieve outstanding performance.
|
|
Industrial
DC Motor Control Interface Board Module
The
board except industry-standard voltage of 0-10VDC or
0-12VDC and provide the external acceleration and
deceleration functions to those signal. The module is ideal choice for DC Motor Speed
Control (Drive) lucking those functions. |
|
Ramp up and Rump Down (Acceleration and Deceleration) 0
to 10VDC or 0 to 12VDC DC Motor Drive signal functions.
And minimum speed when reverse motor function is needed.
|
|
PIVOT-PX25 Industrial
90vdc faction HP motor variable
speed control Module/Driver
Industry-standard low current, high efficiency
power Silicon Controlled Rectifier (SCR)
Bridge module control, for Shunt Wound and/or Permanent
Magnet (PM) 90VDC Motor Speed
Control (Drive).
The PIVOT PX25 drive is a reliable and cost-effective
solution for controlling your permanent magnet or
shunt-wound DC motors in variable-speed applications. It
uses SCR's to provide full-wave rectification of the AC
line input. This dual voltage drive operates using
115VAC, 50/60Hz, to operate 90VDC SCR brush-type
Fractional HP (FHP) motors from 1/50 to 1/4 HP.
The PIVOT-PX25 used in applications
require constant torque throughout the application with
good speed regulation such as conveyors, extruders,
winders, printing presses, food process equipment and
metering pumps controlled by 90VDC
Permanent Magnet (PM) Motor. Built-in transient and
surge suppression |
|
PIVOT-PX25,
industrial
Multi Configuration
Control/Driver
for 90VDC
Fractional Horse Power (FHP) DC
Motor, up to .5 HP Permanent Magnet or Shunt Wound motor
power from of 120VAC @ 60HZ
Proudly designed, fabricated and MADE IN
U.S.A.
PIVOT-PX25, Industrial
Variable Speed 90VDC Motor Control module is an Original
Manufacturing Engineering (OEM) industrial and
commercial rated high performance, high efficiency
Direct Current (DC) speed control for
permanent magnet or shunt-wound DC motors
and gear-motors.
|
|
PIVOT-PX5 Industrial
90vdc faction HP motor variable
speed control Module/Driver
Industry-standard low current, high efficiency
power Silicon Controlled Rectifier (SCR)
Bridge module control, for Shunt Wound and/or Permanent
Magnet (PM) 90VDC Motor Speed
Control (Drive).
The PIVOT P5X drive is a reliable and cost-effective
solution for controlling your permanent magnet or
shunt-wound DC motors in variable-speed applications. It
uses SCR's to provide full-wave rectification of the AC
line input. This dual voltage drive operates using
115VAC, 50/60Hz, to operate 90VDC SCR brush-type
Fractional HP (FHP) motors from 1/50 to 1/2 HP.
The PIVOT-PX5 used in applications
require constant torque throughout the application with
good speed regulation such as conveyors, extruders,
winders, printing presses, food process equipment and
metering pumps controlled by 90VDC
Permanent Magnet (PM) Motor. Built-in transient and
surge suppression |
|
PIVOT-PX5,
industrial
Multi Configuration
Control/Driver
for 90VDC
Fractional Horse Power (FHP) DC
Motor, up to .5 HP Permanent Magnet or Shunt Wound motor
power from of 120VAC @ 60HZ
Proudly designed, fabricated and MADE IN
U.S.A.
PIVOT-PX5, Industrial
Variable Speed 90VDC Motor Control module is an Original
Manufacturing Engineering (OEM) industrial and
commercial rated high performance, high efficiency
Direct Current (DC) speed control for
permanent magnet or shunt-wound DC motors
and gear-motors.
|
|
PIVOT-P1 Industrial
90vdc and 180vdc faction HP motor variable
speed control Module/Driver
Industry-standard low current, high efficiency
power Silicon Controlled Rectifier (SCR)
Bridge module control, for Shunt Wound and/or Permanent
Magnet (PM) 90VDC or 180VDC Motor Speed
Control (Drive).
The PIVOT P1 drive is a reliable and cost-effective
solution for controlling your permanent magnet or
shunt-wound DC motors in variable-speed applications. It
uses SCR's to provide full-wave rectification of the AC
line input. This dual voltage drive operates using
115VAC or 220VAC, 50/60Hz, to operate 90VDC or 180VDC SCR brush-type
Fractional HP (FHP) motors from 1/2 to 1HP.
The PIVOT-P1 used in applications
require constant torque throughout the application with
good speed regulation such as conveyors, extruders,
winders, printing presses, food process equipment and
metering pumps controlled by 90VDC
or 180VDC Permanent Magnet (PM) Motor. Built-in transient and
surge suppression |
|
PIVOT-P1,
industrial
Multi Configuration
Control/Driver
for 90VDC
Fractional Horse Power (FHP) DC
Motor, up to .5 HP Permanent Magnet or Shunt Wound motor
power from of 120VAC @ 60HZ
Proudly designed, fabricated and MADE IN
U.S.A.
PIVOT-P1, Industrial
Variable Speed 90VDC or 180VDC Motor Control module is an Original
Manufacturing Engineering (OEM) industrial and
commercial rated high performance, high efficiency
Direct Current (DC) speed control for
permanent magnet or shunt-wound DC motors
and gear-motors.
|
|
PIVOT P2/R/X Industrial
90vdc full HP motor variable speed control Module/Driver
Industry-standard high current, high efficiency
power Silicon Controlled Rectifier (SCR)
Bridge module control, for Shunt Wound and/or Permanent
Magnet (PM) 90VDC Motor Speed
Control (Drive).
The PIVOT P2/R/X drive is a reliable and cost-effective
solution for controlling your permanent magnet or
shunt-wound DC motors in variable-speed applications. It
uses SCR's to provide full-wave rectification of the AC
line input. This dual voltage drive operates using
115VAC, 50/60Hz, to operate 90VDC SCR brush-type
motors from Fractional 1/8HP to Full 2 HP.
The PIVOT-P2 used in applications
require constant torque throughout the application with
good speed regulation such as conveyors, extruders,
winders, printing presses, food process equipment and
metering pumps controlled by 90VDC
Permanent Magnet (PM) Motor. Built-in transient and
surge suppression |
|
PIVOT-P2,
industrial
Multi Configuration
Control/Driver
for 90VDC
Fractional Horse Power DC
Motor, up to 2 HP Permanent Magnet or Shunt Wound motor
power from of 120VAC @ 60HZ
Proudly designed, fabricated and MADE IN
U.S.A.
PIVOT-P2, Industrial
Variable Speed 90VDC Motor Control module is an Original
Manufacturing Engineering (OEM) industrial and
commercial rated high performance, high efficiency
Direct Current (DC) speed control for
permanent magnet or shunt-wound DC motors
and gear-motors.
|
|
PIVOT-P2R,
industrial
Remote Multi Configuration
Control/Driver
Control
for 90VDC
Fractional Horse Power DC
Motor, up to 2 HP Permanent Magnet or Shunt Wound motor
power from of 120VAC @ 60HZ
Proudly designed, fabricated and MADE IN
U.S.A.
PIVOT-P2R (Remote
application via PLC), Industrial
Variable Speed 90VDC Motor Control module is an Original
Manufacturing Engineering (OEM) industrial and
commercial rated high performance, high efficiency
Direct Current (DC) speed control for
permanent magnet or shunt-wound DC motors
and gear-motors.
|
|
PIVOT-P2X,
industrial Maximum
Multi Configuration
Control/Driver
for 90VDC
Fractional
Horse Power DC
Motor, up to 2 HP Permanent Magnet or Shunt Wound motor
power from of 120VAC @ 60HZ
Proudly designed, fabricated and MADE IN
U.S.A.
PIVOT-P2X (MaXimum
configurations), Industrial
Variable Speed 90VDC Motor Control module is an Original
Manufacturing Engineering (OEM) industrial and
commercial rated high performance, high efficiency
Direct Current (DC) speed control for
permanent magnet or shunt-wound DC motors
and gear-motors.
|
|
Multi-Channel
Isolation Interface Boards. Isolate your relay, pump or actuator
from the PLC, controller or microprocessor. Two version
are available: Detect high
voltage (i.e. 150V) or low voltage signals (i.e. 5V).
|
|
|
|
1 channel Hi/Low isolation board
|
2
channels Hi/Low isolation board
|
|
3
channels Hi/Low isolation board
|
4
channels Hi/Low isolation board
|
|
Multi-Channel
Driver Boards. 12 to 48DC outputs Input signals from
the PLC, controller or microprocessor.
|
|
or
OEM,
Din Rail mounted Eigh Channel Driver Board
Power of 12VDC to 48VDC
(model depended)
On board LEDs indicator
for: Power
Many configurations are available
|
|
Multi-Channel
Isolation Interface Boards. 24V AC or DC input self
powered. Isolate your relay, pump or actuator
from the PLC, controller or microprocessor.
|
|
2
channels isolation board
|
4
channels isolation board
|
|
6
channels isolation board
|
8
channels isolation board
|
|
Solenoid
and Relay Power-on Delay Interface Boards. Delay
motor pump or actuator power on operation.
|
|
Relay
power on delay module
|
Solenoid
power on delay module
|
|
Relay with power-on Delay and Long Duration Timer Interface Boards. Delay
motor pump or actuator power on operation. and keep them
on for duration of preset timer.
|
|
or
OEM,
Din Rail mounted Relay
with Power On Delay (POD) and Timer module (for both,
long and short time delay)
Power of 12v, 24V or 28V
(model depended)
On board LEDs indicator
for: Power on, Relay on and clock beat.
Many durations of Power on
time and timer delay are available
|
|
Relay board. Switch relay directly
from your PLC, micro-controller or other electronic board.
Choose from signal, dual, quad or pilot relay board.
Choose from 5V, 12V and 24V relay coils.
|
|
Single relay board with
Terminal Blocks
|
Dual relay board with
Terminal Blocks
|
|
Quad relay board with
Terminal Blocks
Optional OEM external
relay and power status LED display available (left)
|
Pilot relay board with
Terminal Blocks Power of 24V AC/DC and energies of
4-20mA, 5V and 10V DC signals
|
|
Quad
and Dual relay board
with opto isolated input signals. Switch relay
directly from your PLC, micro-controller or other
electronic board. Choose from medium (10A) or High (30)
rated opto isolated relays boards. Relays are available
in 5V, 12V and 24V coils.
|
|
Optional OEM external
relay and power status LED display available (left)
High/Low Activated
(Switched) Relay (SMT Models) (12V, 24V & 28V VAC or VDC)
When the dual High/Low
activated
relay module is powered on, all relays (and LEDs) are "Off",
per relay individual signal (low/High) will turn (trip) its corresponding relay
"On", while the module power on indictor will remain
lit as long the module is powered
High/Low Activate relay
board with Low
current relays contacts (rated for @2A)
|
|
Optional OEM external
relay and power status LED display available (left)
When the dual High/Low
activated relay module is powered on, all relays (and LEDs) are "Off",
per relay individual input signal (low/High) will turn (trip) its corresponding relay
"On", while the module power on indictor will remain
lit as long the module is powered.
High/Low Activate relay
board with medium
current relays (rated for 10A)
|
|
Optional OEM external
relay and power status LED display available (left)
When the quad isolated
relay module is powered on, all relays and their corresponding LEDs are "On",
individual signal will turn its corresponding relay
and LED "Off"
Medium
current (10A rated relays) opto-isolated signal quad relay
board
|
|
When the dual isolated
relay module is powered on, all relays (and LEDs) are "Off",
individual signal will turn (trip) its corresponding relay
"On", while the module power on indictor will remain
lit as long the module is powered
Medium
current (10A rated relays) opto-isolated signal quad relay
board
|
|
Optional OEM external
relay and power status LED display available (left)
When the dual isolated
relay module is powered on, all relays (and LEDs) are "Off",
individual signal will turn its corresponding relay
"On", while the module power on indictor will remain
lit as long the module is powered
Medium
current (10A rated relays) opto-isolated signal quad relay
board
|
|
Optional OEM external
relay and power status LED display available (left)
When the quad isolated
relay module is powered on, all relays (and LEDs) are "Off",
individual signal will turn its corresponding relay
"On", while the module power on indictor will remain
lit as long the module is powered
Medium
current (10A rated relays) opto-isolated signal quad relay
board
|
|
When the quad isolated
relay module is powered on, all relays (and LEDs) are "On",
individual signal will turn its corresponding relay
"Off"
High
current (30A rated relays) opto-isolated signal quad relay
board
|
|
When the quad isolated
relay module is powered on, all relays (and LEDs) are "Off",
individual signal will turn its corresponding relay
"On", while the module power on indictor will remain
lit as long the module is powered
High
current (30A rated relays) opto-isolated signal quad relay
board
|
|
Self
Power quad relay board. Relays are available in 5V,
12V and 24V coils.
|
|
Optional OEM external
relay and power status LED display available (left)
|
|
Adjustable
voltage relay board controller. Turn
your relay on at certain voltage (0-30V, 0-10V or 0-5) or certain
current (4-20mA) and keep it "on"
until you reach certain tolerance (trip - out) cut-out voltage. the
best choice for
your HVAC needs.
|
|
or
DIN Rail Mount, Voltage
(0-30, 0-10 or 0-5 VDC) or Current (4-20mA) Controlled
Relay with Set and Diff Adj.
|
|
Industrial adjustable DC voltage or current sensitive relay control board. Power
12V, 24V or 28V
Shown above in both SMT (left) or Trough-Hole (right)
configurations
or
DIN Rail Mount, Voltage
(0-60VDC, 0-30VDC, 0-20VDC, 0-10VDC, 0-15VDC, 0-10VDC, or 0-5VDC) or Current (1-5mA, 4-20mA,
10-50mA) Controlled
Relay with Set and Diff Adj.
|
|
Industrial adjustable DC voltage or current sensitive
quad relay control board. Power via 102VAC +/-10%
50HZ/60HZ/400HZ
Voltage sensitive quad
relay shown above in both SMT (left) or Trough-Hole (right)
configurations
Self Power (120V/60HZ) or or 24VDC or 28VDC, input Voltage
(0-60VDC, 0-30VDC, 0-28V, 0-24V, 0-20V, 0-15V, 0-10VDC or 0-5VDC) or Current (1-5mA, 4-20mA
10-50mA) Controlled
Quad Relay with individual Set-point and Differential Adj.
Control multi speed
air-condition multi speed fan or pool pump from 0-10V or
4-20mA signal.
|
|
Industrial High voltage
(from +/- 0.1V up to +/-500V RMS)
adjustable AC/DC
voltage or current (via shunt resistor) sensitive relay
control board. Power via 120VAC +/-10% 50HZ/60HZ/400HZ
AC/DC Voltage sensitive
relay shown above in both SMT (left) or Trough-Hole (right)
configurations
Self Power (120V/60HZ) Voltage
(0 to +/- 0.1VDC or VAC 0 to +/- 1VDC or VAC or 0 to +/-
10VDC or VAC, or 0 to +/- 100VDC or VAC or 0 to +/- 300VDC
or VAC or 0 to +/- 500VDC or VAC) Controlled
Relay with Set-point and Differential Adjustments
Monitor high rail voltages
up to 600VAC
|
|
Adjustable
Voltage or Current Settings Relay Board Controller with
Delay. Turn
your relay on (cut-in) after pre-set delay at specific pre-set voltage or current,
turn it off (cut-out) at certain pre-set voltage or current. The
best choice for
your HVAC Field-Pump, Solar-panel, Battery-charges and
Auto-generator needs.
|
|
DIN Rail Mount, Voltage
(0-150, 0-60, 0-30, 0-10 or 0-5 VDC) or Current (4-20mA,
0-20mA or 0-100mA) Controlled
Relay with Dual-Setting and Timer
Adjustments (Adjustable Time Delay on Relay Operation).
|
|
Adjustable
Voltage or Current Settings 40A-Relay Board Controller with
Delay. Turn
40A rated relay on (cut-in) after pre-set delay at specific pre-set voltage or current,
turn it off (cut-out) at certain pre-set voltage or current. The
best choice for
your HVAC Field-Pump, Solar-panel, Battery-charges and
Auto-generator needs.
Can be utilized as One Channel PLC.
|
|
Voltage
(0-30, 0-10 or 0-5 VDC) or Current (4-20mA) Controlled
Super Relay with Dual-Setting and Timer
Adjustments. (Adjustable Time Delay on Relay Operation).
|
|
Adjustable
Voltage or Current Settings Relay Board Controller with
dual Delay-cycle. Turn
your relay on (cut-in) after pre-set delay at specific pre-set voltage or current,
turn it off (cut-out) at certain pre-set voltage or current.
While
on, the relay will continue to cycle; set on and off at pre-set
timers. The
best choice for
fish feeder, fish farms and hydroponic applications.
|
|
DIN Rail Mount, Voltage
(0-30, 0-10 or 0-5 VDC) or Current (4-20mA) Controlled
Relay with Dual-Timers Setting
(Adjustable Time Delay on both, ON and OFF Relay
Operation).
|
|
Single Channel Liquid
Sensitive Relay Board Controller
with delay. Build your
own industrial 24V DC or 28V DC liquid leak detector, to control
pump, shut-off valve or alarm. The
best choice for
your HVAC needs.
|
|
DIN Rail Mount, liquid sensitive relay interface board
module with configure delay.
|
|
Dual Channels Liquid
Sensitive Relay Board Controller
with per channel delay function. Build your
own industrial 24V DC dual liquid leak detectors, to control
pump, shut-off valve or alarm. The
best choice for
your HVAC needs.
|
|
Dual liquid sensitive relays interface
board module with per channel configure delay.
|
|
Triple Channels Liquid
Sensitive Relay Board Controller
with per channel delay function. Build your
own industrial 24V DC triple liquid leak detectors, to control
pump, shut-off valve or alarm. The
best choice for
your HVAC needs.
|
|
Triple liquid sensitive relays interface
board module with per channel configure delay.
|
|
Adjustable
Water Sensitive Relay Board Controller. Build your
own industrial 24V DC water leaks and/or humidity detections, to control
shut-off valve or alarm. The
best choice for
your HVAC needs.
|
|
or
DIN Rail Mount, water
(liquid) Leaks Detections Controlled Relay.
|
|
Three
Relay Switching based on one Input Signal
Controller board. Build your
own industrial HVAC
related functions
control board.
|
|
Model
A
Model B
low current
relays
High current Relays
|
|
Low Voltage Light
Control (12V, 24V AC or DC). light your building,
pool or landscaping automatically (no settings
required!!!). Models supports 12V LED light strip as
well as 24V LED light strip. Also supports 12VAC and
24VAC 50Hz, 60Hz or 400Hz incandescent bulbs for both
indoor and outdoor applications.
|
|
or
DIN-Rail Mount, Jim's light controls with LDR and timer
Light/Time Control 12V and 24V any LEDs inconsequent
bulb and strip up to 300W or up to 1200W with external SSR or
Relay)
Light / Dark
activated Relay to control you lighting system
Build in Light sensor
(photo-sensitive device), Choose from Photo-diode, Cadmium
Sulphide (CdS) Photocell and/or
Light Dependent Resistor
(LDR) for "Dusk to Dawn light control"
Built in long duration timer for
auto off few hours after dusk for RV Lighting Applications
Dusk
To Dawn AUTO ON/OFF low voltage Outdoor Lighting
Applications
Also Available potted
for marine and wet area applications
|
|
Solid State Relay (SSR)
interface boards, with Zero-crossing and "Sunbber" functions.
from single channel to industrial and commercial OEM
power multi channel Solid State Relay. Light Dimming
SSR, Motor controlled SSR...
|
|
or
DIN Rail Mount, Solid State Relay (SSR)
|
|
Industrial and Commercial OEM
Power Multi Channel Solid State Relay
OEM,
Multi Solid State Relay (SSR):
4, 8, 12 and 24 Channels Triac Board with and without Zero Crossing (ZC) function
|
|
Quad Universal Dimming Centralized Lighting and Ceiling
Fan Control with per channel 1000 Levels phase
controlled angle and Zero crossing detection. Phase
angle control for TRIACs, SCRs both Single phase and
Three phase systems at 50HZ, 60HZ and 400Hz. |
|
Industrial, Commercial &
Residential OEM
Power Multi-Channel
Universal Dimming Centralized Lighting, Ceiling
Fan Control, Alarm and More.
Start building your commercial
power control panels 4, 8, 12 and 24 today. Pilot and dimming
Power Solid State Relays made easy to assemble. Control by
0-1KHZ, 0-10KHZ, PWM, DMX, RS485, I2C, SPI, TCP/IP, 4-20mA,
0-5VDC, 1-5VDC, 0-10VDC, 2-10VDC…
OEM
Universal Dimming Centralized Lighting and
Ceiling Fan Control Board
with and Zero Crossing (ZC) function Groups as 4 Channel: 4, 8, 12, 16, 20, 24, 48, 96
channels
|
|
Power Distribution
interface boards, with per channel LED power
indicator, jumper select and protection fuse.
|
|
High-Performance Industrial
DIN Rail Mount VAC or VDC Power
Distribution Board (PDB)
Power
Distribution Module: Distribute (Split) 24V DC or 24V AC to up
to four (4)
high end cameras
Four
(4) fused outputs CCTV power supply distributions 24VAC
or 24VDC or 28VAC or 28VDC
Four
(4) fused outputs LED power supply distributions 12VAC
or 12VDC or 24VAC or 24VDC
Distribute 10V, 12V, 24V, 28V and 48V (VAC or VDC) with
individual per channel output fuse protection, power
on/off jumper select and
LED power indication (VAC or VDC)
|
|
Quad Power Distribution
with Adjustable power regulator interface board module, with per channel LED power
indicator, jumper select and protection fuse.
|
|
High-Performance Industrial
DIN Rail Mount VDC Power
Distribution, medium current (left), High current
(middle)
Power
Distribution: Distribute (Split) 24V or 28V DC to up
to four (4)
high end analog or digital cameras
Four
(4) fused outputs CCTV power supply distributions 12VDC
or 24VDC or 28VDC
Four
(4) fused outputs LED-Strip (LED Rope Light) power supply distributions
12VDC or 24VDC
Distribute 3.3V, 5V, 10V, 12V, 15V, 24V, 28V (VDC) with
individual per channel output fuse protection, power
on/off jumper select and
LED power indication
|
|
Multi Channel LED,
LAMP, Test Integrators, Distribution and Alarm
Management Modules
interface boards, with per channel protection diode.
Available in both low and high current module.
|
|
or
or
or
or
High-Performance Industrial
10V, 12V, 24V, 28V, 48V AC/DC or 110V, 220V,
240V or 380V AC:
Alarm management
Alarms integrator
power to energize common relay
Lamp and LED test
Back
feed prevention
Multi isolated outputs
Multi isolated
input with all channels isolated, test input and signal
distribution...
|
|
Isolation
Low Current AC Power transformer Board. Perfect isolate transformers
board,110VAC or 220VAC to 24VAC, CT 2 * 12VAC, or
any other voltages. AC voltage source to all
your HVAC, PLC, and interface boards and transducer
power needs.
|
|
Side
View
|
Top View
|
|
Isolation
AC Power transformer Board. Super size isolate transformer
board, primary 24VAC or 110VAC or 120VAC or 230VAC to
secondary 20VAC (up to
dual or triple 20VAC), or
many other voltages. AC voltage source for all
of your HVAC, PLC, and interface boards and transducer
power needs.
|
|
OEM 56VA RMS
Isolated Transformer with both, Primary and Secondary
Terminal-Blocks ("cage up")
24VAC to multiple 20VAC
secondary outputs: Isolate and eliminate all GROUND LOOPs!
Convert and isolate 120VAC
to 20VAC at 56VA RMS "EID has the power you need for your
industrial application."
|
|
Diode Bridge. Full
bridge (diode rectifier), Low and High current
configurations, for both positive output (+V), and/or positives
and negative (+/-V) outputs utilizing center trace (CT) transformer. Yes
"cage" type Terminal
block by Molex Inc for easy
connection. Perfect
to convert AC voltage source to DC, both +/-V and +V
reference to Com (ground)
|
|
Model
A
Model B
High
current (up to 3A)
Low current (up to 1A)
DIN Rail Mount, Full
bridge (Diode Rectifier)
|
|
DIN Rail Mount,
industrial
power
supply board. Positive regulative 24 Volts DC and
+/- 15 Volts DC
|
|
Other Output
voltages are available:
5V, 6V, 8V, 9V, 10V,
12V, 15V & 24V DC
|
|
DIN Rail Mount Dual-Outputs +15VDC & +15 VDC Power Supply.
Other Output
voltages are available:
+5VDC & +5 VDC, +9VDC & +9 VDC, 5VDC & 15VDC ...
|
|
Other Output
voltages are available:
Positive 5V or 6V or
8V or 9V or 10V or 12V or 15V or 24V DC, Negative
-5V or -15V DC
|
|
Low current +/-5V DC board
with Terminal Blocks
|
Low current +/-15V DC
board with Terminal Blocks
|
|
DIN Rail Mount Dual-Outputs +/- 15 VDC Power Supply.
110VAC/60Hz to
±15V DC
|
|
Model
A
Model
B
DIN Rail Mount Dual-Outputs
Power Supply Board 24VAC to
±5V DC
|
Model
A Model
B
DIN Rail Mount Dual-Outputs
Power Supply Board
24VAC to
±15V DC
|
|
or
Model XA Model
XB
DIN Rail Mount Dual-Outputs
Power Supply Board. Input
12 VDC or 12 VAC output
± VDC (I.e +/-10VDC, +/-5VDC, +/-9VDC,
+/-7.5VDC...)
|
|
or
Model XA Model
XB
DIN Rail Mount Dual-Outputs
Power Supply Board. Input
24 VDC or 24 VAC output
± VDC (I.e +/-12VDC, +/-5VDC, +/-7.5VDC,
+/-9VDC, +/-10VDC, +/-15VDC,
+15V & -5VDC...)
|
|
Custom
and Adjustable Power
supply Module. 1.25V to 24V Voltage regulator board, the perfect voltage source to all
your HVAC, stand alone sensors and 4 to 20mA
transmitters needs. Replace any 78XX regulators.
|
|
|
|
|
Dual
outputs power
supply Board. DC-adjustable (Adj.) reference voltage and rail
voltage.
|
|
or
|
|
Battery
voltage source - simulators both for 9V and 12V.
Stop paying for
batteries again and again...
|
|
or
|
|
Industrial
Step Down Power-Supply with Fine Tuned Adjustable Output
module. The board can regulated up
to Thirty volt DC (30VDC) down to 5VDC. With higher current
option. This unique power
supply board is perfect voltage source to all
your 3.3V and/or 5V ARM driven microprocessors and interface boards power needs.
|
|
The high current fine
adjustment step-down power
supply is available with output voltage configuration...
3.3VDC, 5.0VDC & 12.0VDC
|
|
Adjustable regulated output voltage power
supply module. The board can regulated output voltage up
to twenty-four volt DC (1.25-24VDC). With higher current
option (right). This unique power
supply board is perfect voltage source to all
your HVAC controls ad interface boards power needs. OEM, Also
available with on board heat-sink (many heat-sink
configuration are available).
|
|
or
|
|
The high current fine
adjustment power
supply is available with output voltage configuration...
3.3V, 5.0V, 6.0V, 9.0V, 10.0V, 12.0V, 15.0V, 18.0V, 20.0V, 24.0V, 28.0V DC
|
|
This adjustable power
supply is available with many heat
sink configuration
|
|
This adjustable power
supply is available with many heat
sink and isolated power transformer configurations
|
|
The dual adjustable power
supply is available with many heat
sink and isolated power transformer configurations
Many output DC voltages
are available:
+5V & +5V, +15V & +15V, 24V& 24V, +/-15V, +/-24V ...
|
|
The quad adjustable power
supply is available with many heat
sink and isolated power transformer configurations
Many output DC voltages
are available:
quad
+5V, quad +15V, quad +24V, +/-15V & +/-24V ...
|
|
Adjustable regulated
dual output voltage power
supply module, with both positive and negative
adjustable regulated outputs voltage (1.25 to 24VDC &
-1.25 to -24VDC). With higher current option (right).
|
|
|
|
Up to
4 adjustable output voltage power
supply module via push button switch. Each output voltage
is separately selectable and adjusts between 1.5V to 24V
DC. Additionally, each selectable output voltage has its
own bright LED output indication. This unique power
supply board is perfect voltage source to all
your Lab testing needs.
|
|
|
|
Multi VDC outputs Super Power Supply
with Battery Backup. Test battery under load, charge
backup battery or batteries, custom
to 6V, 9V, 12V or 24V batteries, Test VAC input failure,
The board may be powered by alternator, wind or solar energy, VAC or VDC, and more.
Call or e-mail to customize your OEM unit.
|
|
Don't miss a clock
("tick") while getting stable uninterruptible DC Voltages when you power; Infusion-pump,
Gate system, Access control system, Intercom system, Alarm
monitoring system,
SPA or Pool Controlled system, High-end camera, Power
Distributions System backup, DC UPS, PIC or ARM Micro-Processor
... Cell Phone system and more...
|
|
Power
over Ethernet (PoE), POE injector and POE Taper for wireless and remote applications.
Power remote Ethernet Camera, Router, Switch etc.
|
|
DIN Rail Mount, PoE
Injector or Taper OEM
Remote side, tap power supply
|
|
Industrial Power
over Ethernet (PoE) Taper for wireless and remote applications.
Power remote Ethernet Camera, Router, Switch etc. POE
input 12-30VAC or DC output model depended 3.3VDC, 5VDC,
9VDC and 12VDC
Our OEM industrial POE's
tapper unique design can power remotely an Arduino,
Raspberry-Pi, Beagle-board Black,
(beagle-bone) Black Boards
|
|
Industrial
High Current PoE Remote Taper
Industrial Low
Current PoE Remote Taper
Industrial Standard POE
24VDC or 24VAC to remote applications power of 12VDC and/or USB 5VDC
|
|
RJ45 dual connector with Power
over Ethernet (PoE), POE injector and POE Taper for wireless and remote applications.
Power remote Ethernet Camera, Router, Switch etc.
|
|
DIN Rail Mount, dual RJ45 with PoE
Injector or Taper option
|
|
Thermometers
and temperature
measurement related board and sensors.
|
|
High
accuracy temperature interface board, utilizing
Industrial standard temperature sensor (transducer)
AD590. Convert remote temperature
to quantified
temperature measurement represented by corresponding
voltage value. Choose
from degrees C or F output (Model A & B)
|
|
or
High
accuracy I2C bus Real time clock (RTC) plus dual
Thermistors, temperature reading and compensation interface board, utilizing
Industrial standard 10K or 20K Thermistors (option). Convert
two temperature
to quantified
temperature measurement represented by corresponding
voltage value.
|
|
DIN Rail Mount thermistor interface board.
Use
Steinhart-Hart
equation to convert any thermistor resistance into
quantified
temperature measurement with high accuracy.
|
SENSER-GTM10K
(SS-316 body) Side views
Our
temperature (panels electrodes, sensors, cups and probes) are
light-weight and durable, suitable for a wide range of
applications. We will customize them for you. Let us
know the style you are looking for, and we will produce
to your specifications. Most connectors and
temperature compensations (TC's)
are available.
|
|
Use
Steinhart-Hart
equation to convert 10K Ohms NTP curve 3 thermistor resistance into
quantified
temperature measurement with high accuracy.
Automatically present the readings on a bright two digit
seven segments display.
Choose
from degrees C or F output. Optional with or
without decimal point. Ideal for inline temperature
measurements.
|
Use
industrial standard temperature sensor
measurements,
temperature to voltage transducer
(LM34 or LM35) and
automatically displays it on a bright two digit seven
segments display.
Choose
from degrees C or F output. Optional with or
without decimal point. Ideal for room monitoring
temperature measurements.
|
|
Voltage
measurement related board and sensors.
|
|
High
accuracy 2 seven segments display voltage interface board, utilizing
industrial standard resistors-network voltage-divider to
read and convert voltage readings. Displays the voltage
on a bright two
digit seven segments display. This unique board is ideal
for battery monitoring. It is simultaneously powered of
and reads the same battery, or battery networks
(self power display).
|
|
Electric
automotive related board and sensors.
|
|
The boards combination are designed to perform
automotive switch and sensors signaling to LED signal conversion.
|
|
Operational
Amplifier interface board. Simply chain them together
and build your application, prototype or product. Save time and money.
Operational
Amplifiers OP-Amps are the most used analog active
circuit component. While Op-Amps are widely available
from different manufacturers, and are fairly
inexpensive, selection of the right Op-Amp for the job
is still important. Use our Op-Amp boards as a building
block (black box) to build your applications. Let us
build them with your favorite components and set your
desired gain.
|
|
|
|
|
|
|
|
Display related board and
meter.
Use our interface board and
display to construct your own meter:
pH-meter
(pH, ppm), ORP-meter (uV, mV, V, ppm), ISE-meter (uV, mV, V, ppm)
Conductivity
meter (uS, mS, S, ppm), TDS-meter (ppm), Humidity
meter (%RH)
Temperature
meter (F, C, K), Tachometer
(RPM), Flow-meter
(RPM), Voltmeter (uV, mV, V, ppm), Battery
monitoring meter (Batt icon), Automatic
temperature compensation (ATC), Dissolve
Oxygen (DO)-meter, Ohm-meter, High
impedance voltmeter (uV, mV, V), Light-meter, Location
indicator meter (1-99), and more.
|
|
|
|
|
Resistive Humidity or Water Sensors board.
|
|
|
|
|
Resistive Liquid Level Sensors board.
|
|
|
|
|
Industrial standard
EUSB. Choose from a variety of Interface boards
and/or kits:
Measuring
and logging pH, ORP and ISE has never been easier, Shown
above mounted to our combo-pH-Temperature electrode.
Choose
from our large variety of EUSB
kits/boards (blue buttons below)
Multi-channels
12-bits ADC (A/D), both single ended and differential. EEPROM,
I2C, I/Os... Measure pH with ATC or ISE or ORP... data acquisition...
Measure
voltage, temperature... Control timers, counters and more--
directly from your PC via EID-EUSB connection kits.
Yep,
Basic FREE SOFTWARE.
Simple to use. Control EUSB-kits directly from your personal computer (PC)
via windows** environment. Our philosophy is that
"NO
KID or SCIENTIST WILL BE LEFT BEHIND!"
Too
many features to list. Log to file, and simultaneously
open it from Excel **, to generate graph or report... or
just share the logged file and read it via the web from
anywhere.
OEM
software is available. Let your customer control the
world directly from their PC (Dr. Ron Erlich).
**
Windows and Excel are trade marks of Microsoft Corp.
|
|
Attention developer,
BASIC/C/C++ sample code and DLL
is available-- (YES
FREE!) write your own GUI for your USB
application.
|
|
EUSB
OEM USB INTERFACE BOARDS and KITS
Choose
from our variety of our
Enhance USB line of EUSB
boards (buttons
below):
1.
USB - I/Os LEDs electronic kits via EUSB:

3 I/O Via USB 6
I/O Via USB
9 I/O Via USB
6 In. + 32 Out. Via USB
6 In. + 24 Out. Via USB 9 In. +
16 Out. Via USB
2.
USB - EEPROM kit via EUSB:
Control I2C E-EPROM Via USB
3.
USB - ICs kits via EUSB:
MAX1236 4/2 Channels
SE/DIFF 12-Bits Analog to Digital Converter (ADC) Via USB
4.
USB - Bus
protocols kits via EUSB:
I2C Via USB
SPI Via USB
5.
USB - Analog
to digital converter (ADC) kits, both single ended and
differential via EUSB:
1-Channel SE ADC Via USB 2-Channels SE ADC Via USB 4-Channels SE ADC
Via USB
1-Channel Diff. ADC Via USB 2-Channels Diff.
ADC Via USB
6.
USB kits - Measure
pH via EUSB:
ISE,
ORP, or pH with Temperatures Compensation (TC) reading Via USB
7.
USB - Hi
Impedance interface (pH, ORP & ISE) kits via EUSB:
8.
USB - Timers
& Counters kits via EUSB:
3-Timers Via USB
3-Counters Via USB
9.
USB - Temperature
(IC and Thermistors) kits via EUSB:
1-IC Temperature Via USB
4-IC-Temperatures Via USB
4-Thermistors
Temperatures Via USB
10.
USB - Displays
(1-4 lines 8-40 CHR) kits via EUSB:
LCD Via USB
11.
Monitor e-mail and/or room temperature and/or any sensor
you deem appropriate via your USB port:
4
Email Alert via EUSB (PC USB port)
Model A
Model B With temperature Reading
View
if you got new email, while your father or Mother is on the computer.
Educational
kit for the all family.
Yes,
free software...
12.
Free Enhance EID's
USB (EUSB) kit line software, Code DLL, and software sample for our EUSB
kits.
|
|
DIN
rail mounting clips (kit) Designed
for mounting enclosures to DIN rails
|
|
|
DIN Clip shown on the left
mounted to our EID-1591ATBU
blue polycarbonate (chemicals resistance type
material) enclosure
and clipped to a panel mounted standard 35mm DIN
rail.
Our DIN Clip is mounted
via two screws per clip.
Shown
above mounted on our OEM pH/ORP/ISE high-impedance
input transducer
|
|
Shown Above model Y (left) and Model X
(right)
Shown above DIN-RAIL Mounting plate with
single clip mounting plate (left), dual mounting
DIN-RAIL clips (Bottom right) and Dual
DIN-Rail clips
with mounted BBB board (Top). Please be advised the BBB
board shown above is for demonstration only and it sold
separately!
Industrial multi configurations
DIN-RAIL mounting plate with single or multi
DIN-RAIL clip
configurations
Ideal for mounting may of
our OEM industrial interface boards to be installed in
NEMA
rated enclosures directly on the RAIL without individual
board enclosure. reduce weight and ease of installation.
Add
DIN-RAIL Clip to your
Beagle-Bone Board, Black or Green. |
|
Cable/Cord/Wire-Glen
Black
nylon (kit) designed
for, liquid-tight cord-grip
(wires grip). Used
where cable is entering or leaving an enclosure
|
|
|
Liquid-Tight,
Strain Relief Cord grips (kit)
-
Accepts
a wide range of cable diameters due to large opening
and highly flexible strain relief elements, together
with a TPE sealing ring
-
The
strain relief elements tighten in a circular sequence
on the sealing ring to give outstanding strain relief
without twisting or damaging the cable
-
Suitable
for NEMA type 4 applications - Protection to IP68
-
UL94-V2
flammability rating
-
UL,
CSA & VDE listed
|
|
Industrial 19" Rack Mount
Adjustable DIN-Rail
DIN Rail Brackets (DRB) mount on standard 19" wide
rack rails. The unique designed "slots" allow front/back adjustments of
DIN Rail. The unit uses only 3.5" (2U) of panel space. Made of
industrial 14 gauge steel.
Simply mount 35mm DIN Rail industrial standard power
supply, interface board, transmitter and signal
converter enclosures in a industrial standard 19" Rack.
|
|
Electrical
Enclosures (NEMA Rated)
All
Electrical Enclosures are in stock. Choose from light or
heavy duty NEMA Enclosures. When a standard enclosure isn’t exactly
what you need, we can have it modified for the ideal enclosure
solution. We can cut, paint, mill and drill them for you to fit your needs--
NEMA 1, 3, 3R, 4, 4X, 12 & 13
Rated Electrical Enclosures
|
|
--- HVAC CONTROLS, PROCESS
CONTROLS, INDUSTRIAL CONTROLS, INTERFACE BOARDS ---
ALL
ABOVE OEM INTERFACE BOARD ARE PROUDLY
DESIGNED, FABRICATED
and MADE IN THE U.S.A.
|
|
